Troubleshooting

DTC P0560 SYSTEM VOLTAGE

MONITOR DESCRIPTION

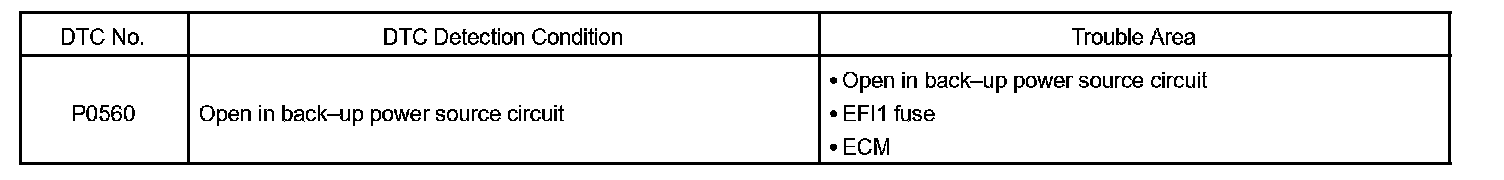

DTC Detection Condition:

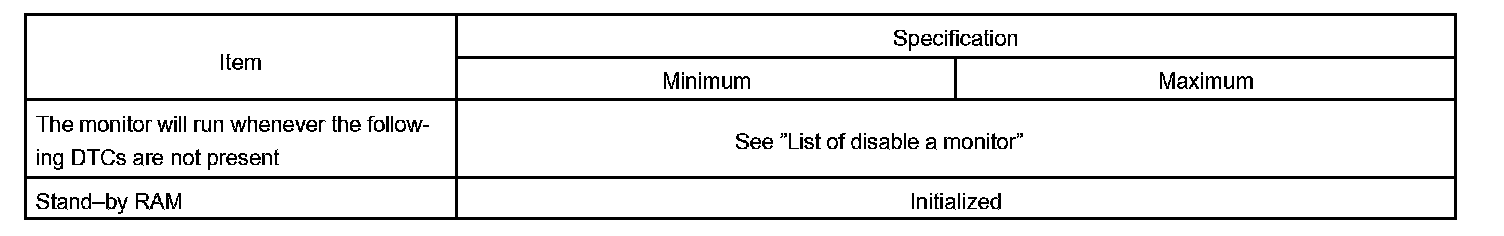

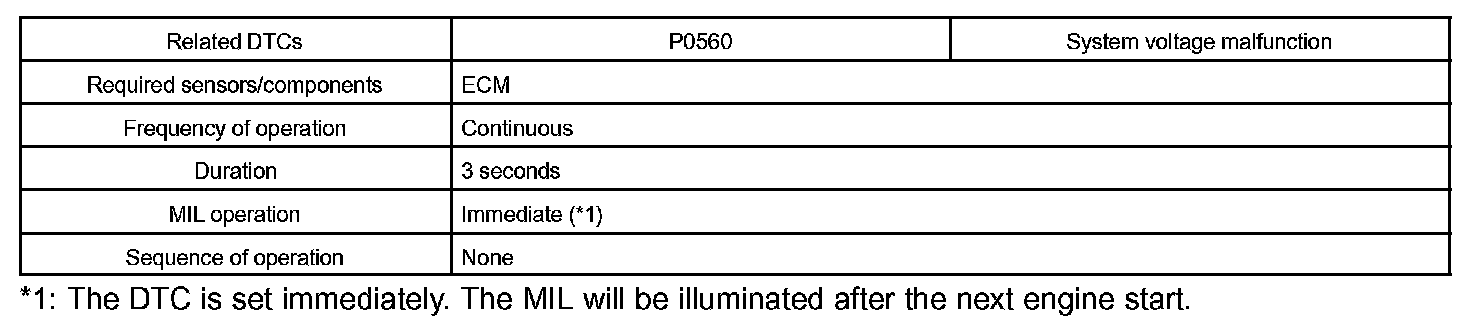

Monitor Strategy:

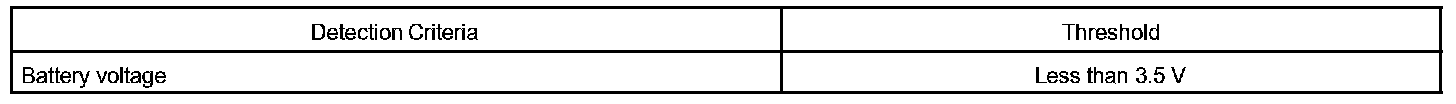

Typical Malfunction Thresholds:

The battery supplies electricity to the ECM even when the ignition switch is OFF. This electricity allows the ECM store data such as DTC history, freeze frame data, fuel trim values, and other data.

If the battery voltage falls below a minimum level, the ECM will conclude that there is a fault in the power supply circuit. The next time the engine starts, the ECM will illuminate the MIL and set a DTC.

HINT: If DTC P0560 appears, the ECM does not store another DTC.

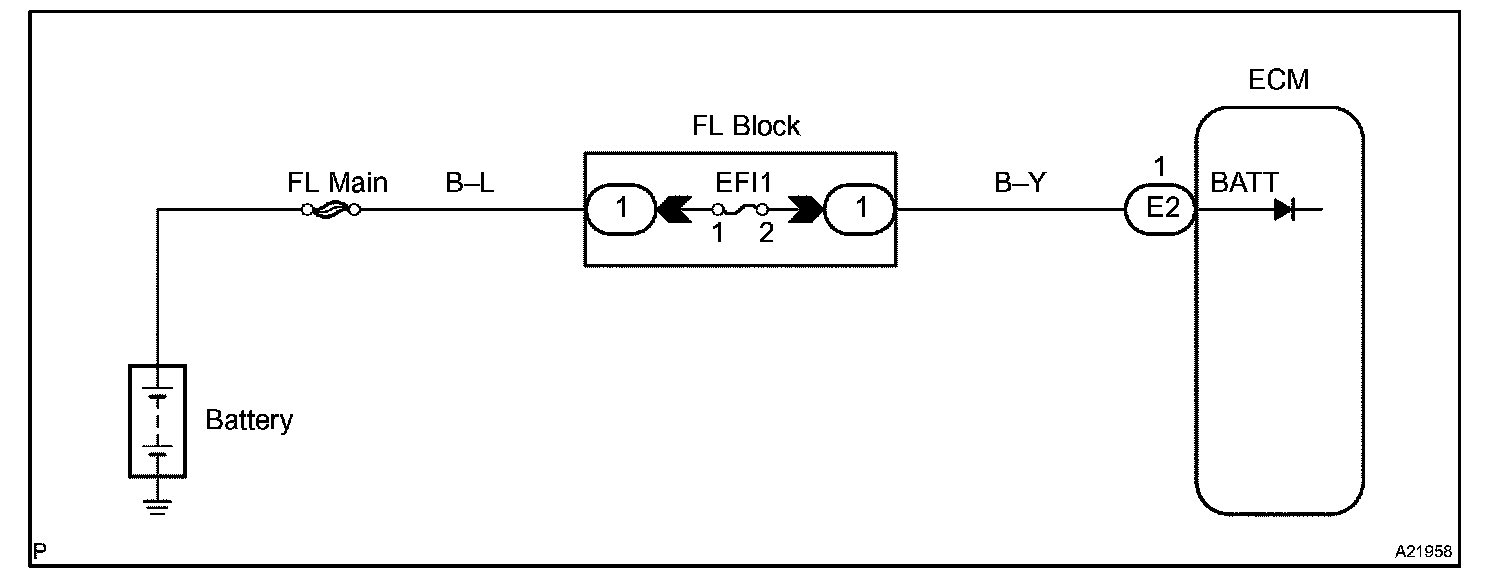

Wiring Diagram:

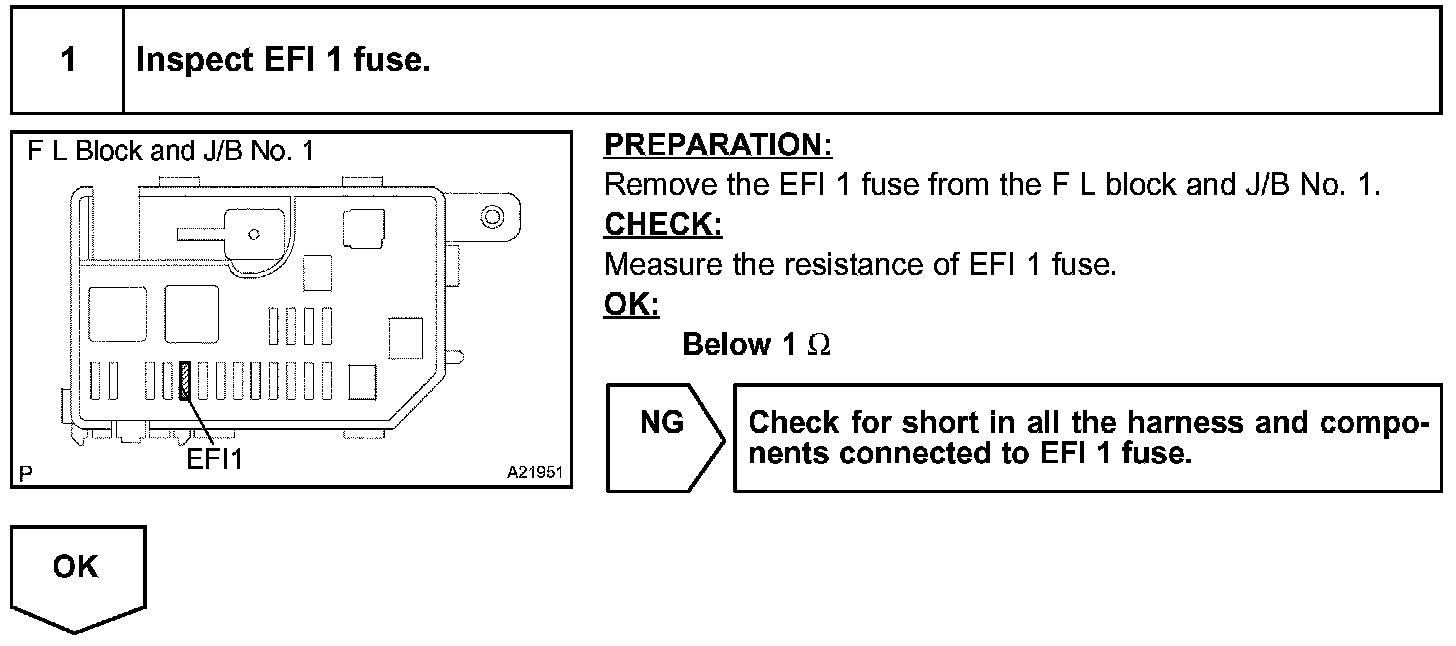

Step 1:

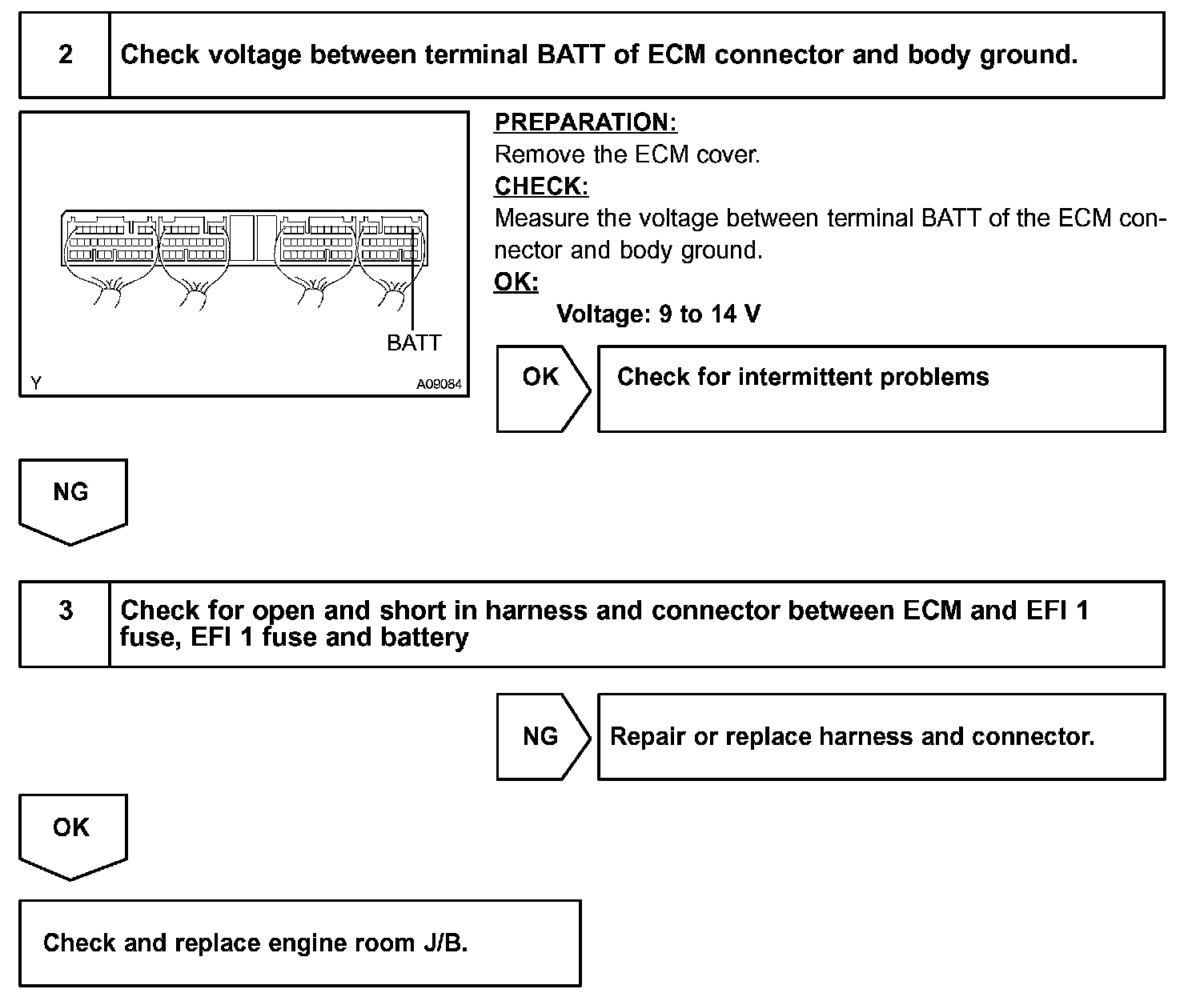

Step 2 - 3:

INSPECTION PROCEDURE

HINT: Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, as well as other data from the time when a malfunction occurred.
