P0810

DTC P0810 CLUTCH POSITION CONTROL ERROR

DTC Detection Condition:

CIRCUIT DESCRIPTION

Wiring Diagram:

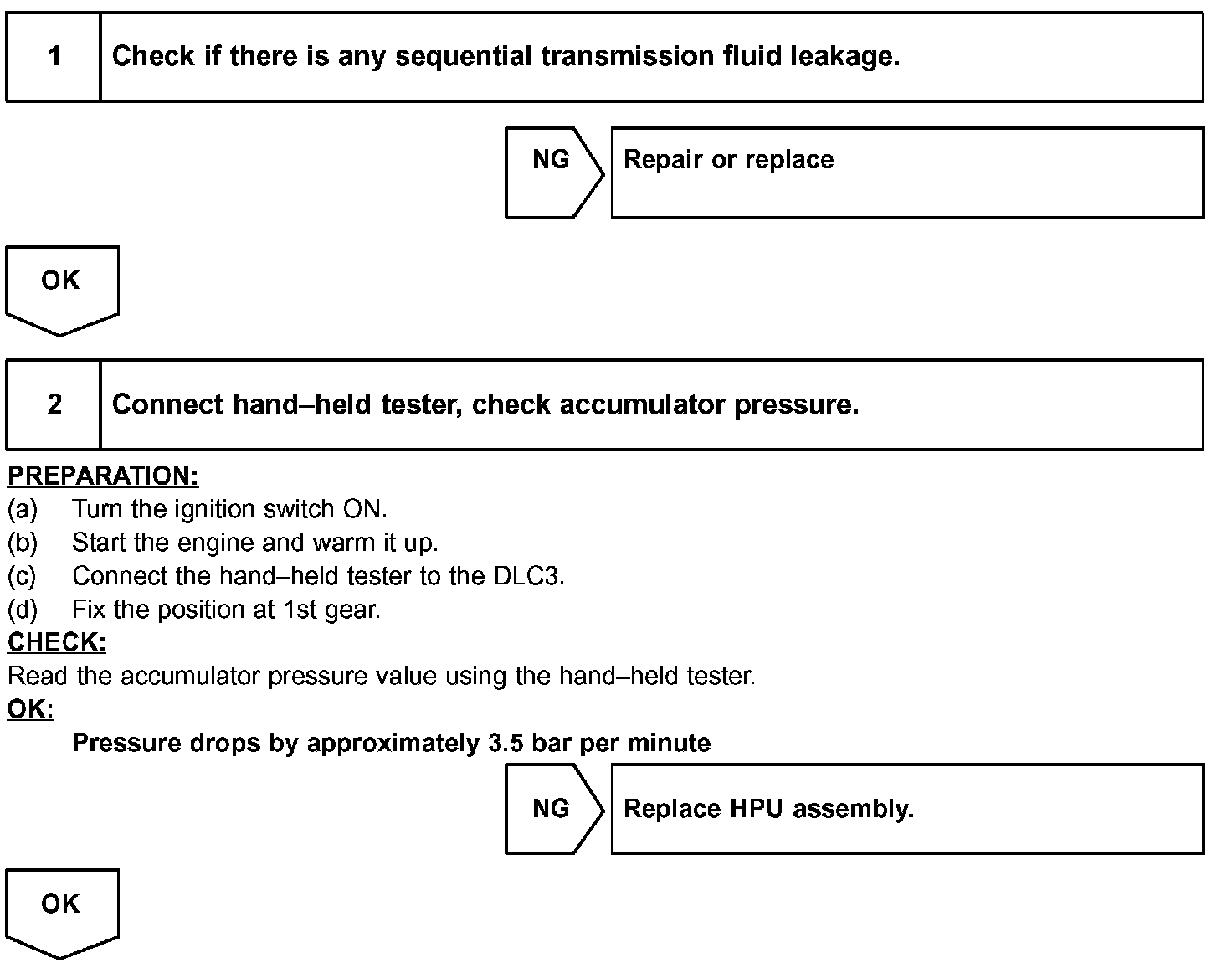

Step 1 - 2:

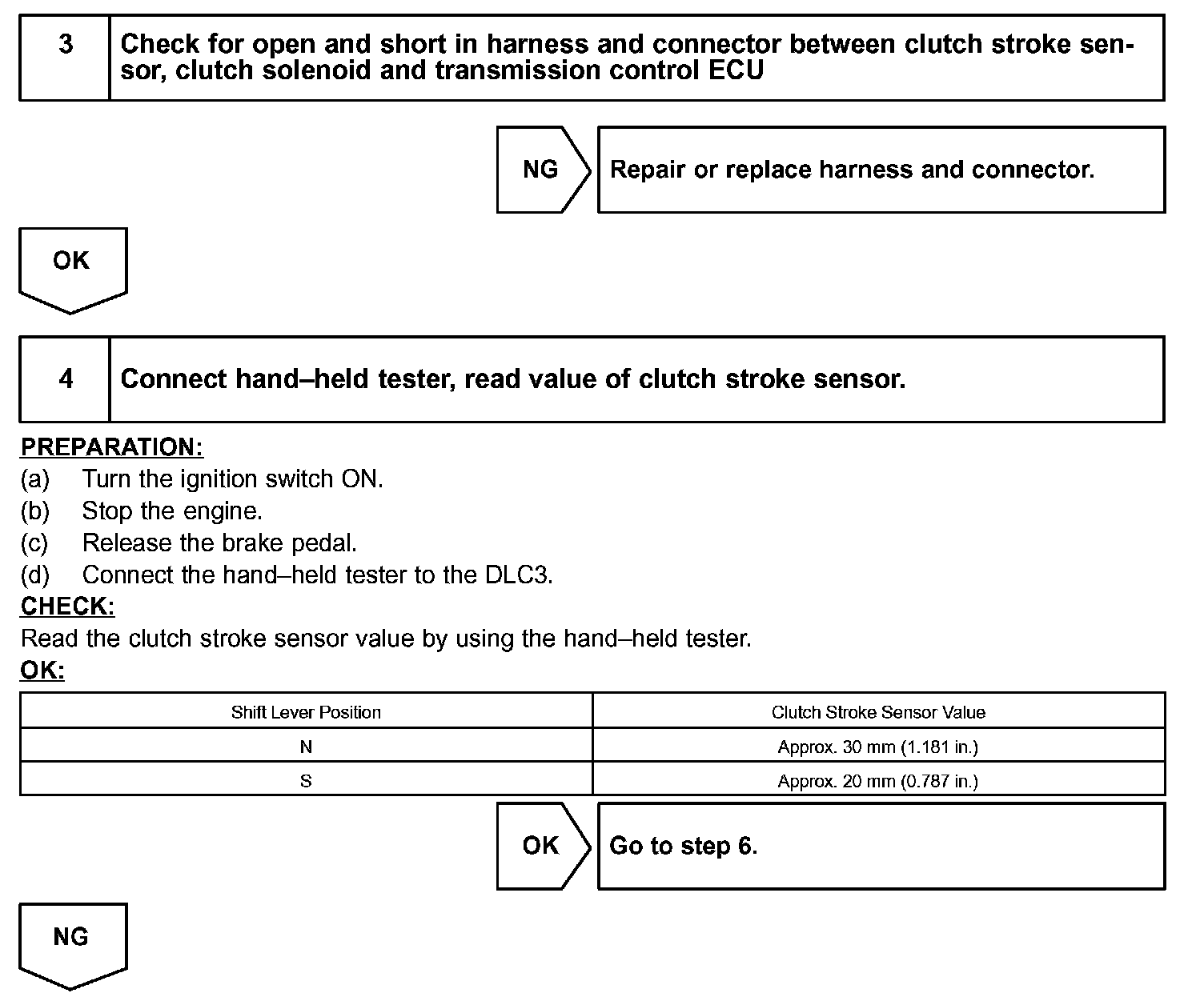

Step 3 - 4:

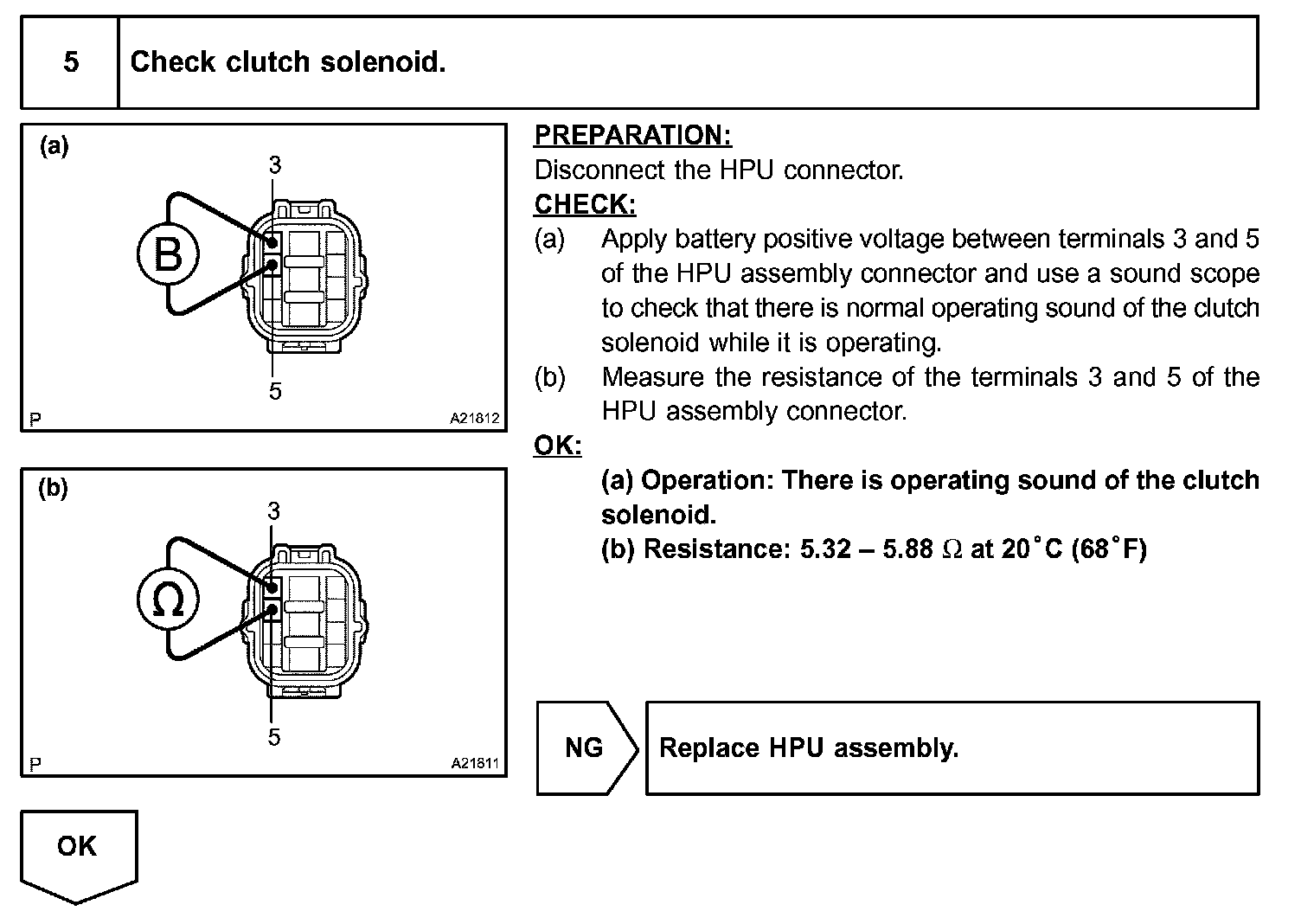

Step 5:

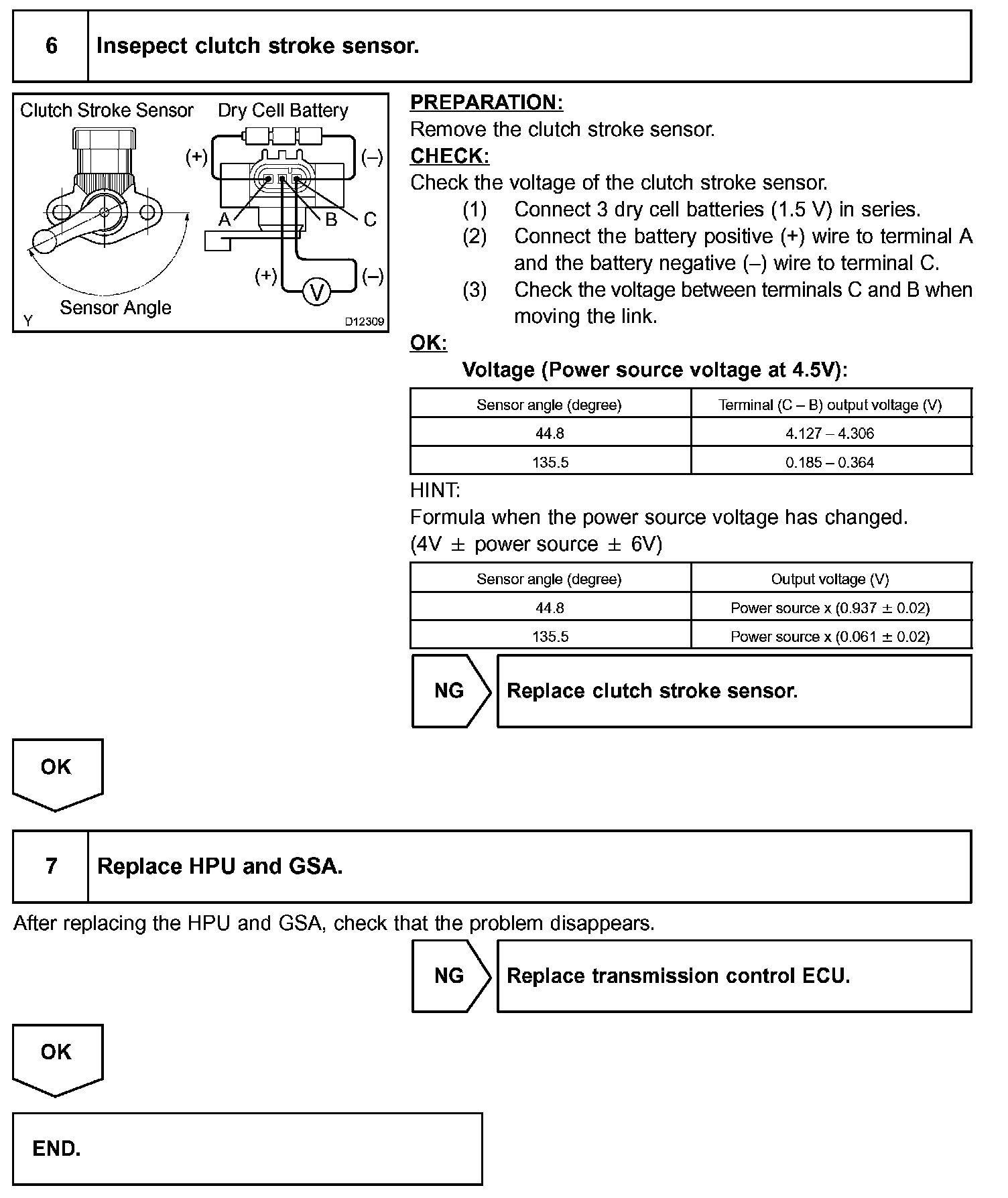

Step 6 - 7:

INSPECTION PROCEDURE

HINT: Read freeze frame data using hand-held tester or OBD II scan tool. Because freeze frame records the engine conditions when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, etc. at the time of the malfunction.
