P0915

DTC P0915 GEAR SHIFT POSITION CIRCUIT RANGE/PERFORMANCE

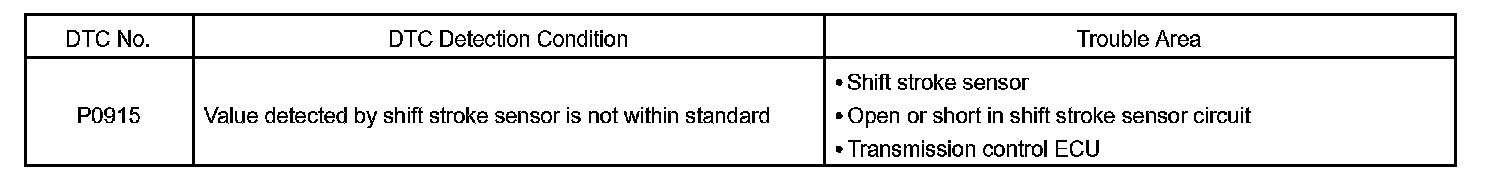

DTC Detection Condition:

CIRCUIT DESCRIPTION

Wiring Diagram:

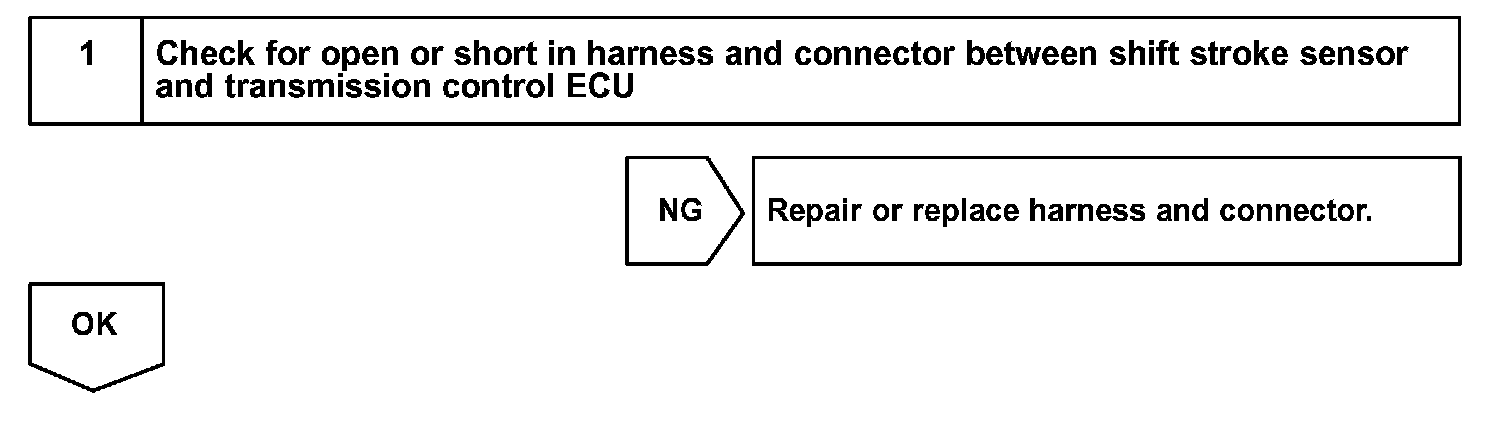

Step 1:

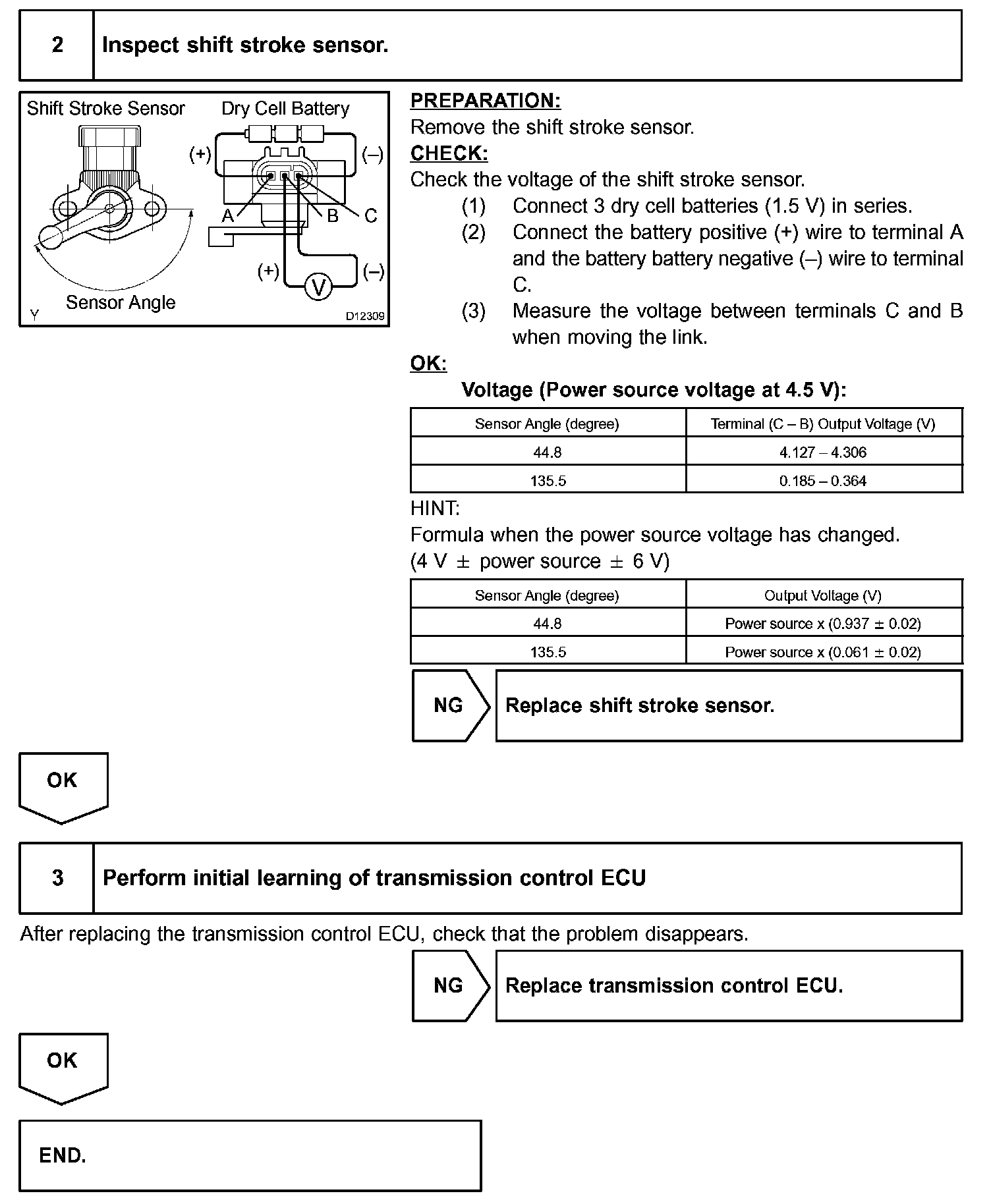

Step 2 - 3:

INSPECTION PROCEDURE

HINT: Read freeze frame data using hand-held tester or OBD II scan tool. Because freeze frame records the engine conditions when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, etc. at the time of the malfunction.
