P0917

DTC P0917 GEAR SHIFT POSITION CIRCUIT HIGH

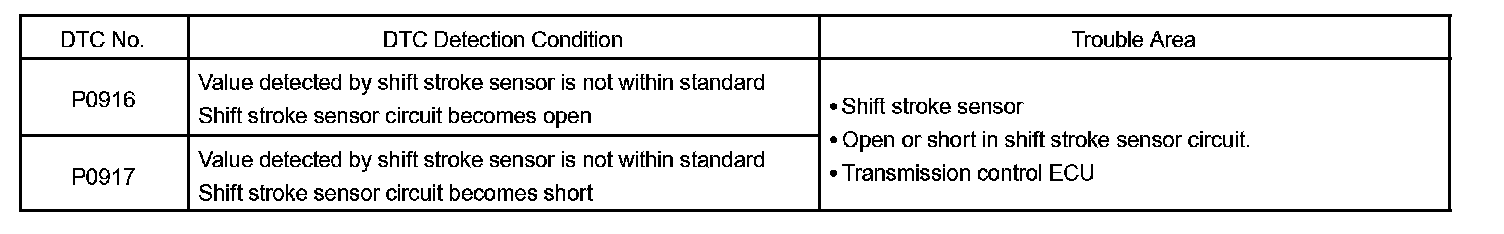

DTC Detection Condition:

CIRCUIT DESCRIPTION

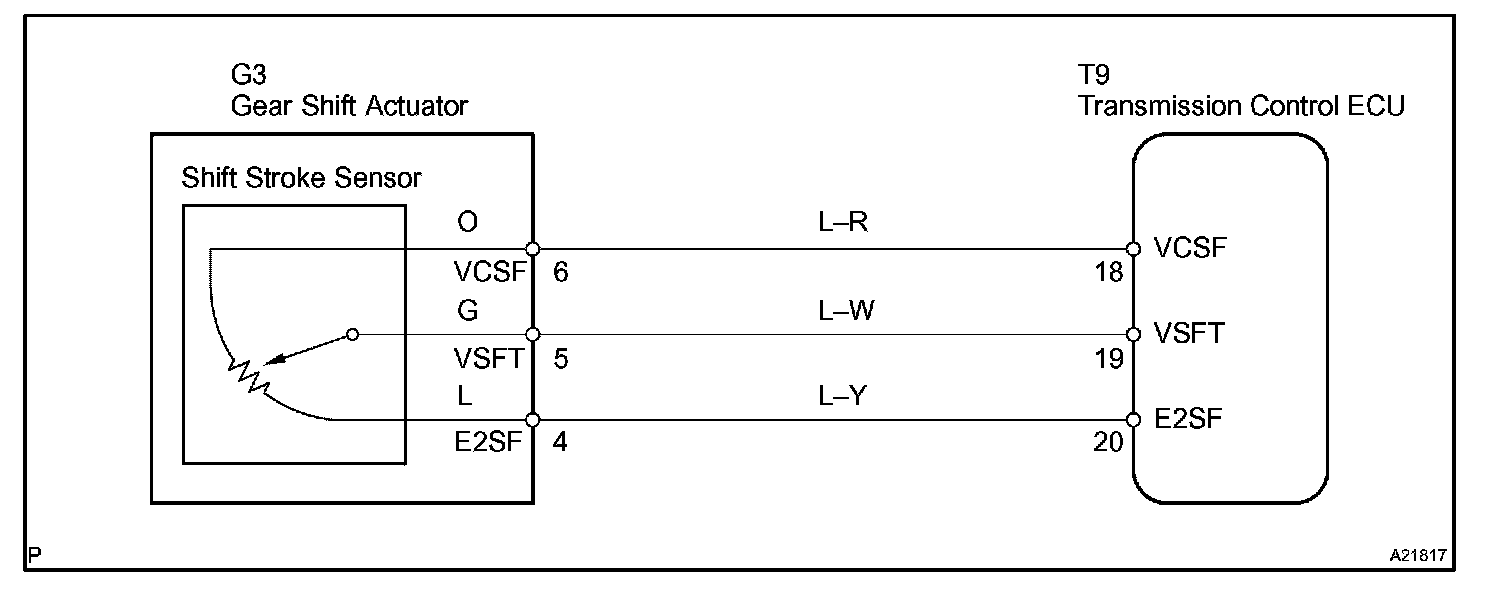

Wiring Diagram:

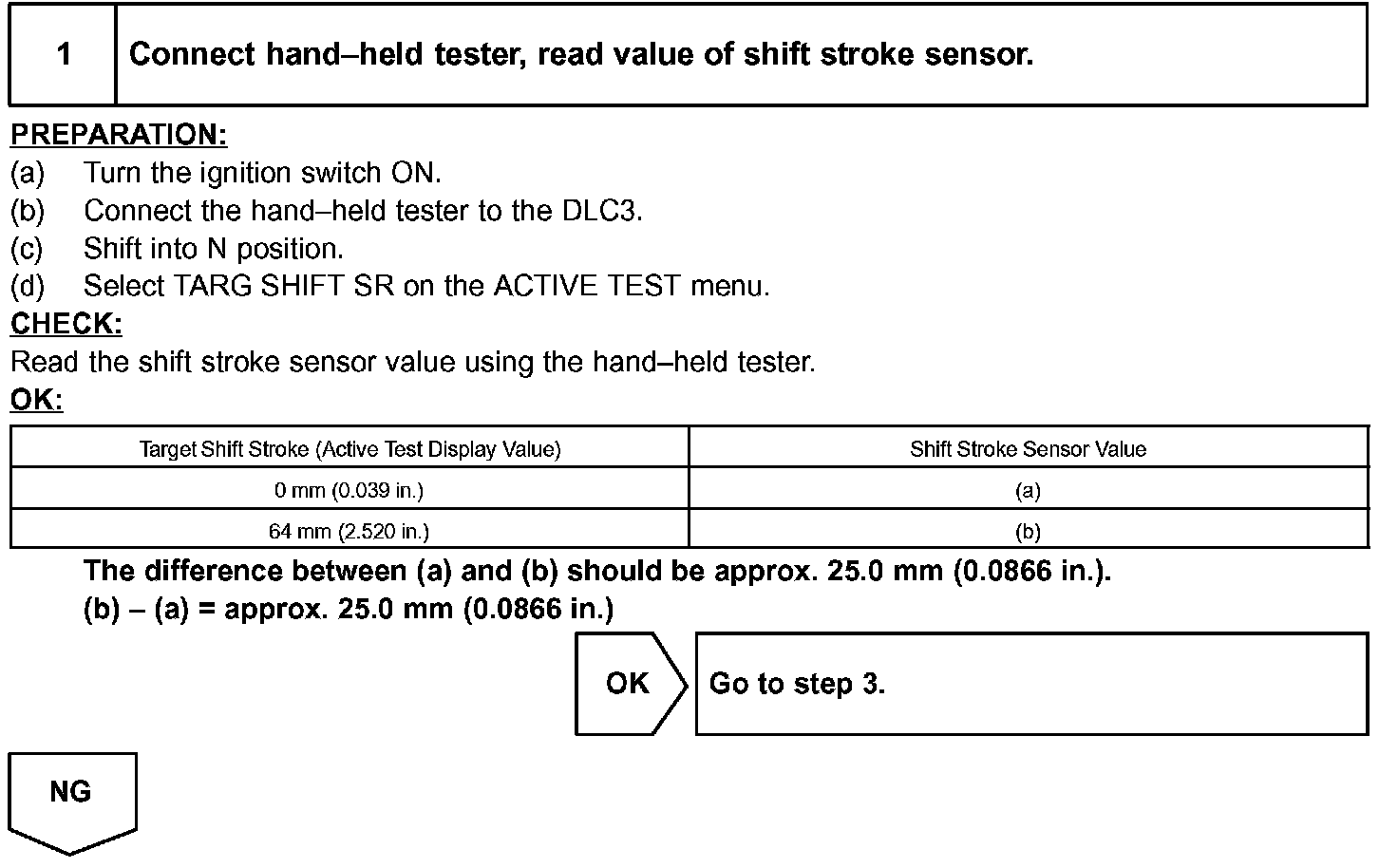

Step 1:

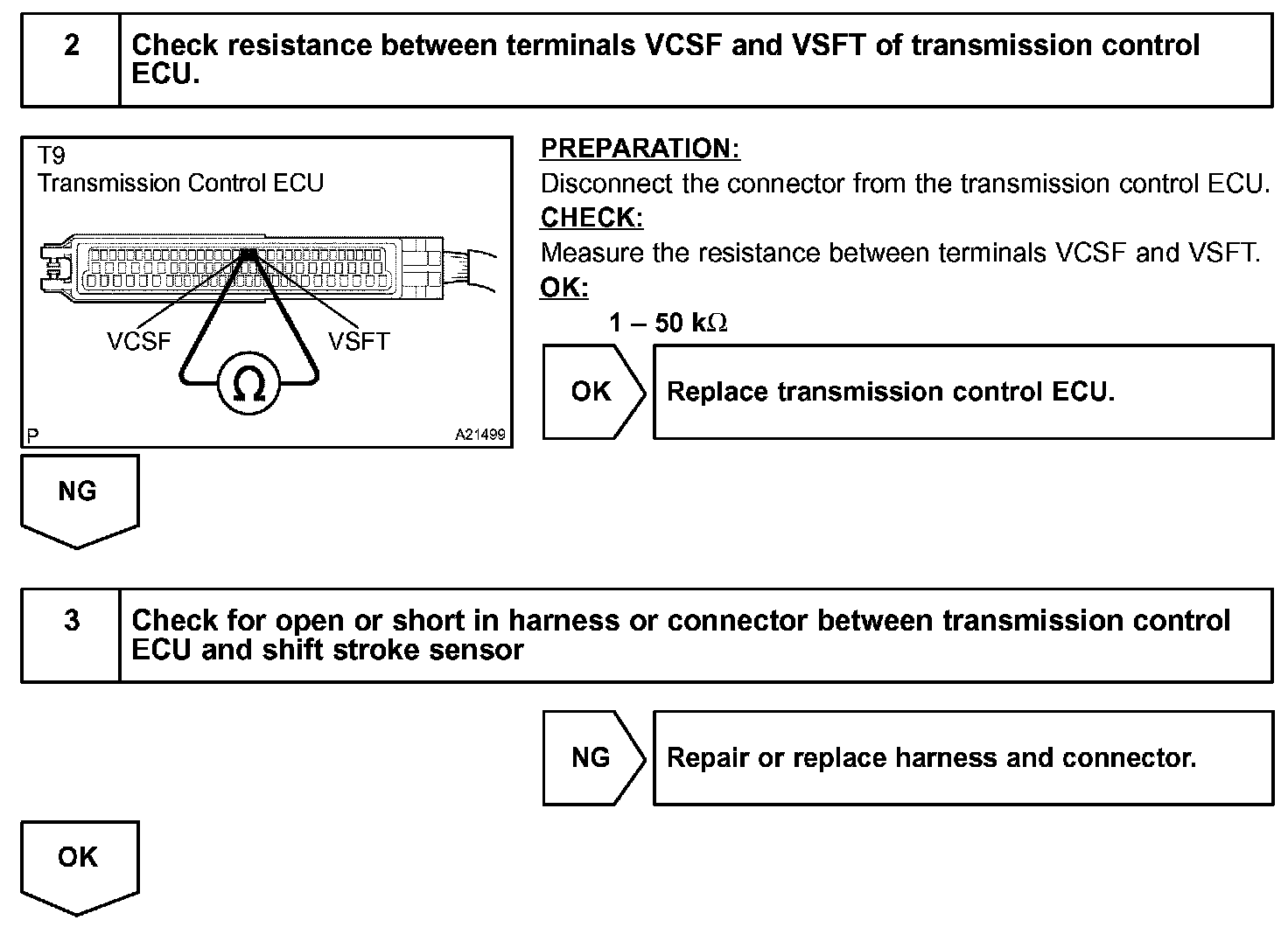

Step 2 - 3:

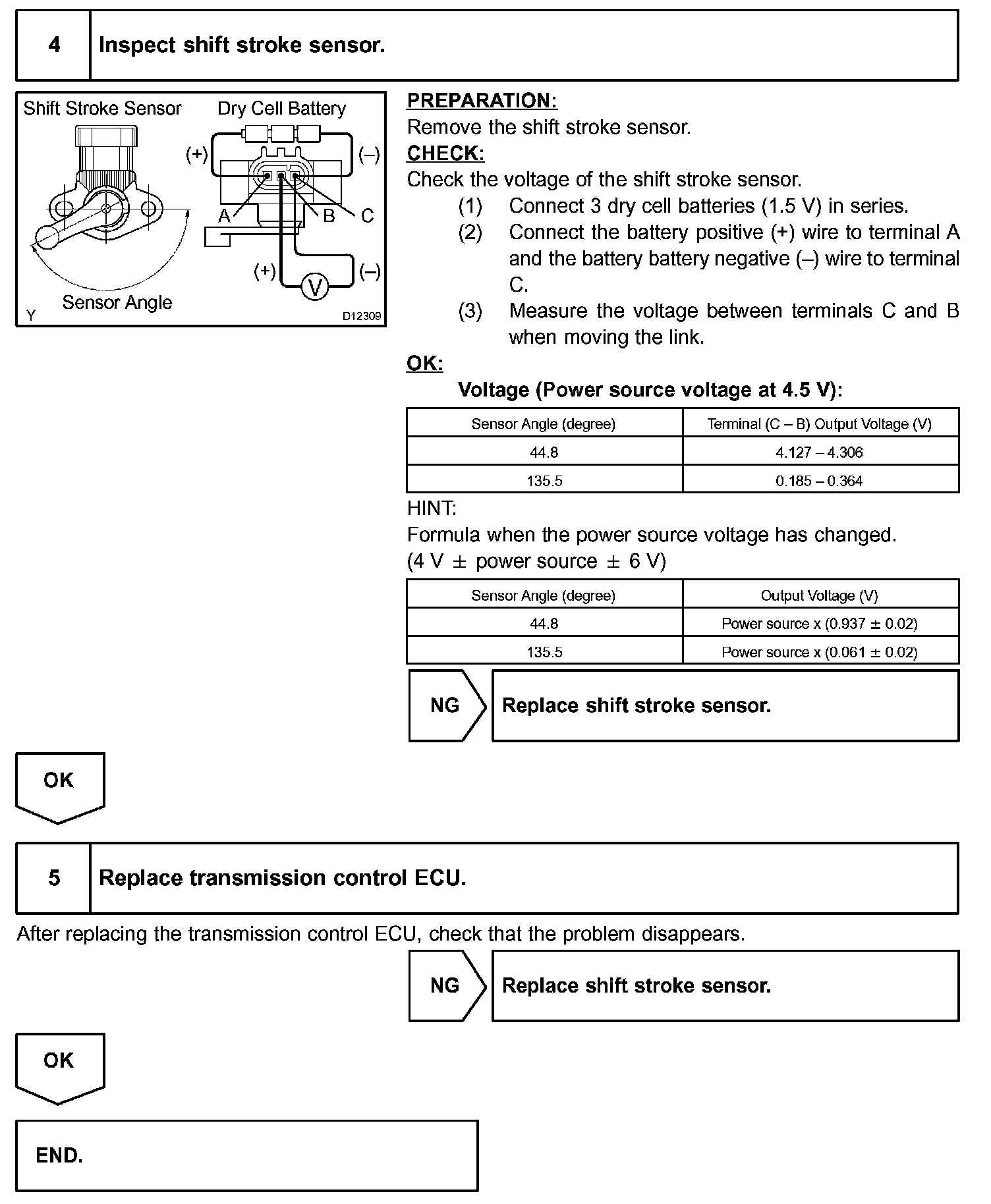

Step 4 - 5:

INSPECTION PROCEDURE

HINT: Read freeze frame data using hand-held tester or OBD II scan tool, as freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, etc. at the time of the malfunction.
