P0919

DTC P0919 GEAR SHIFT POSITION CONTROL ERROR

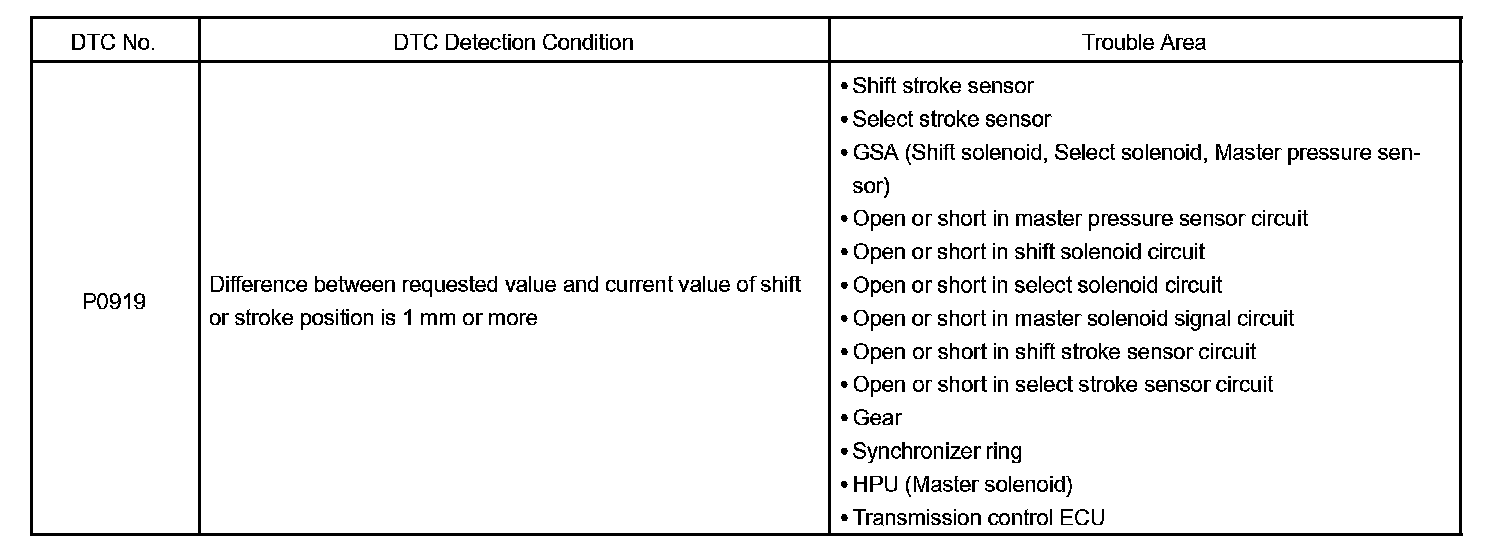

DTC Detection Condition:

CIRCUIT DESCRIPTION

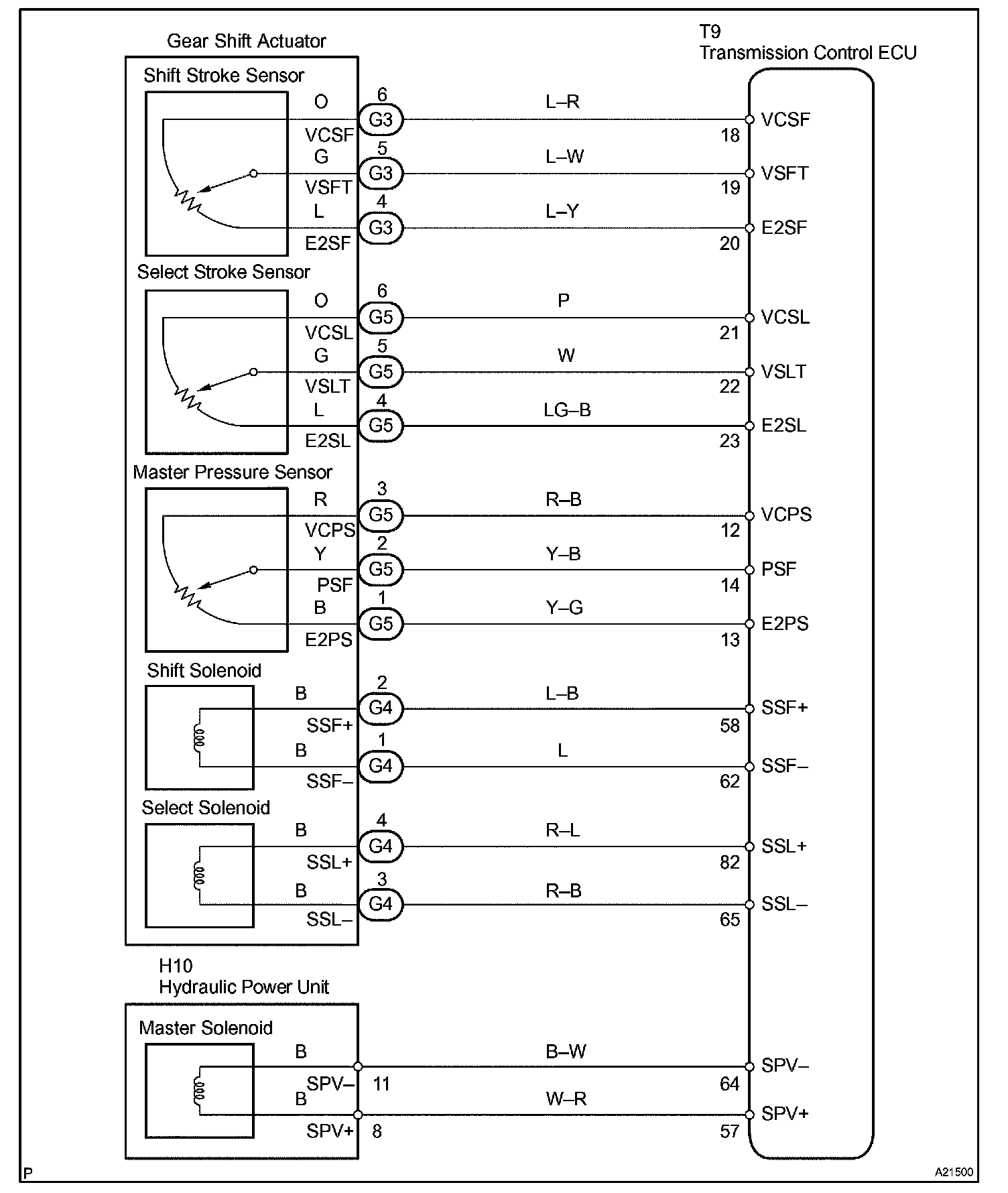

Wiring Diagram:

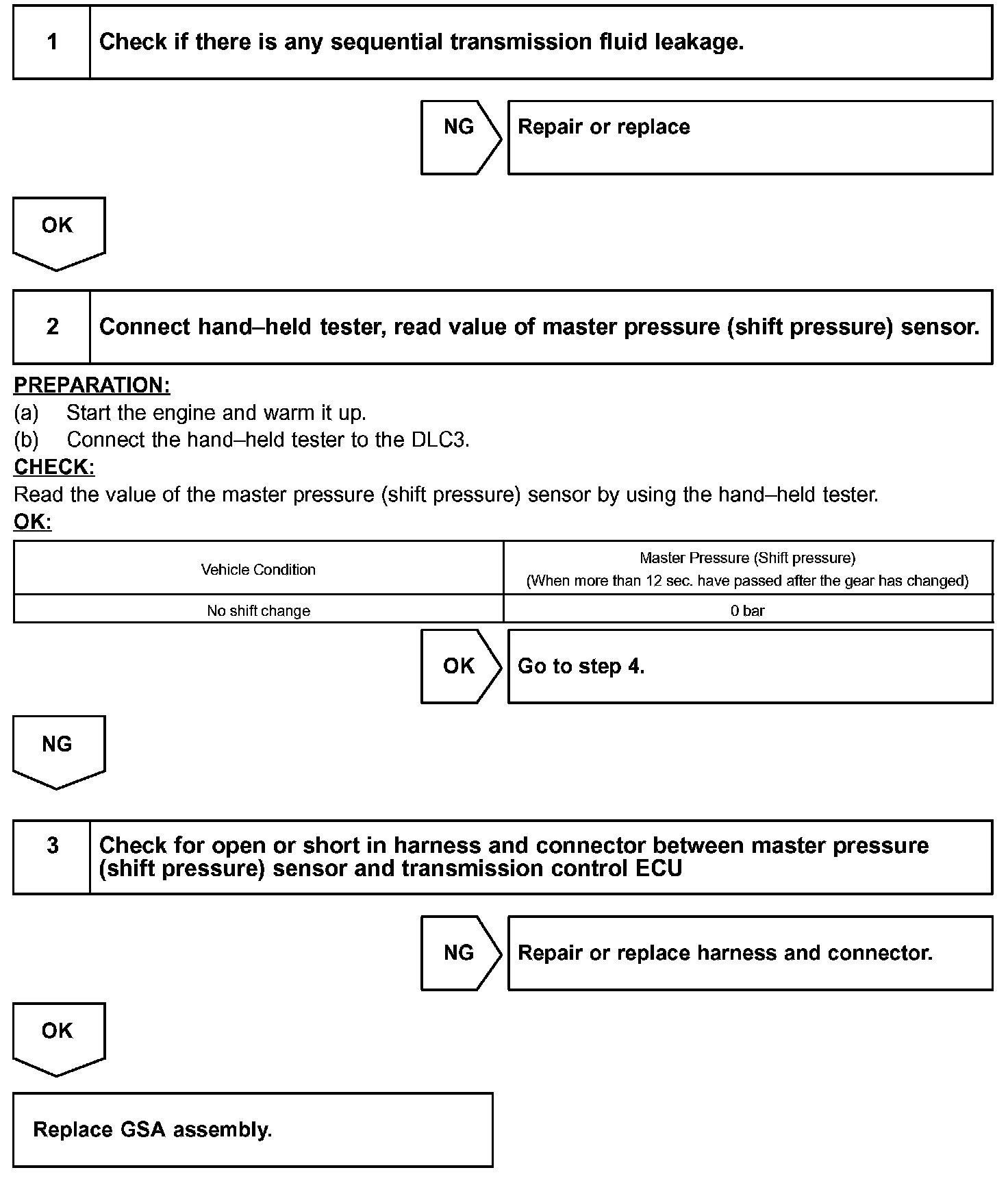

Step 1 - 3:

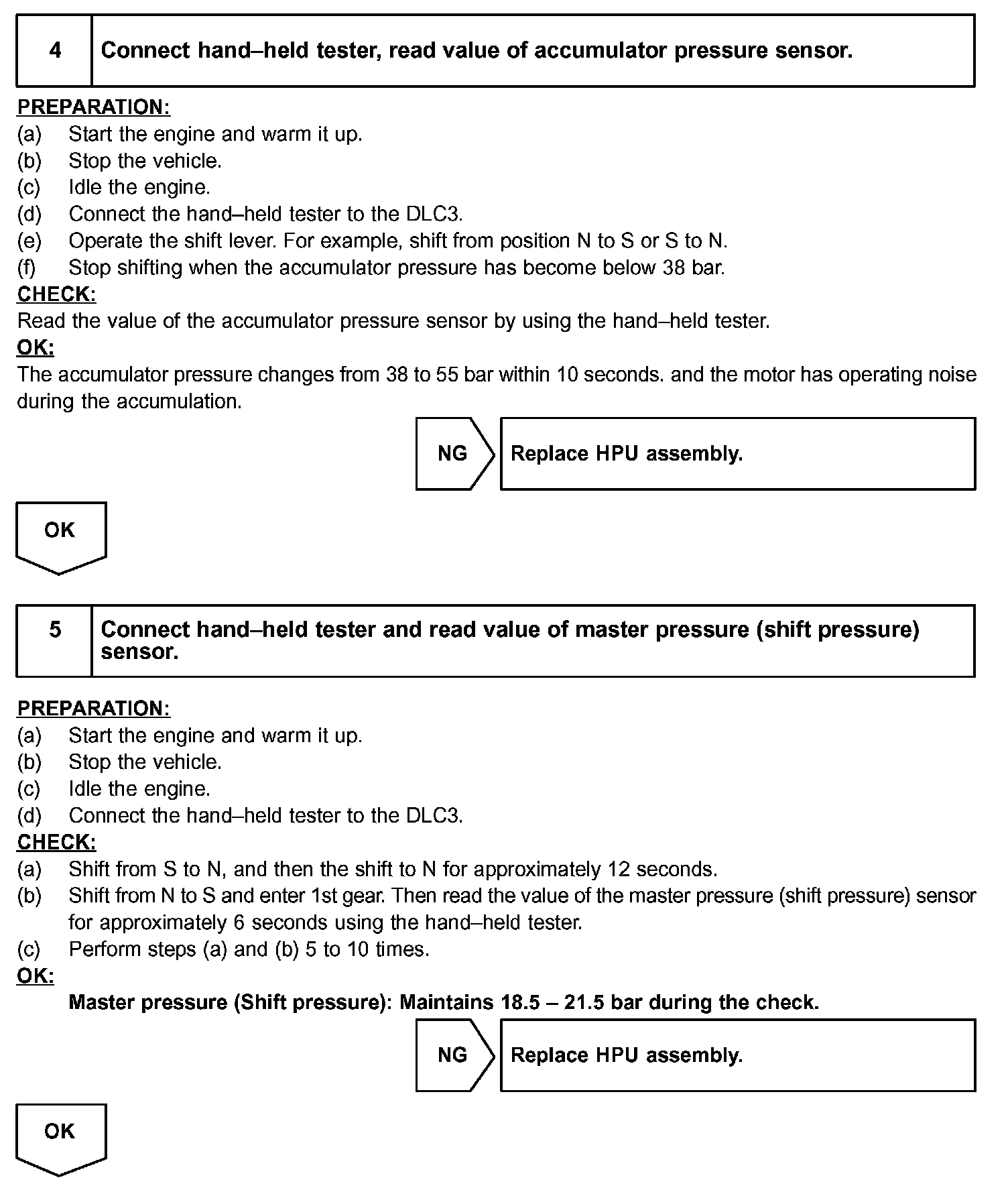

Step 4 - 5:

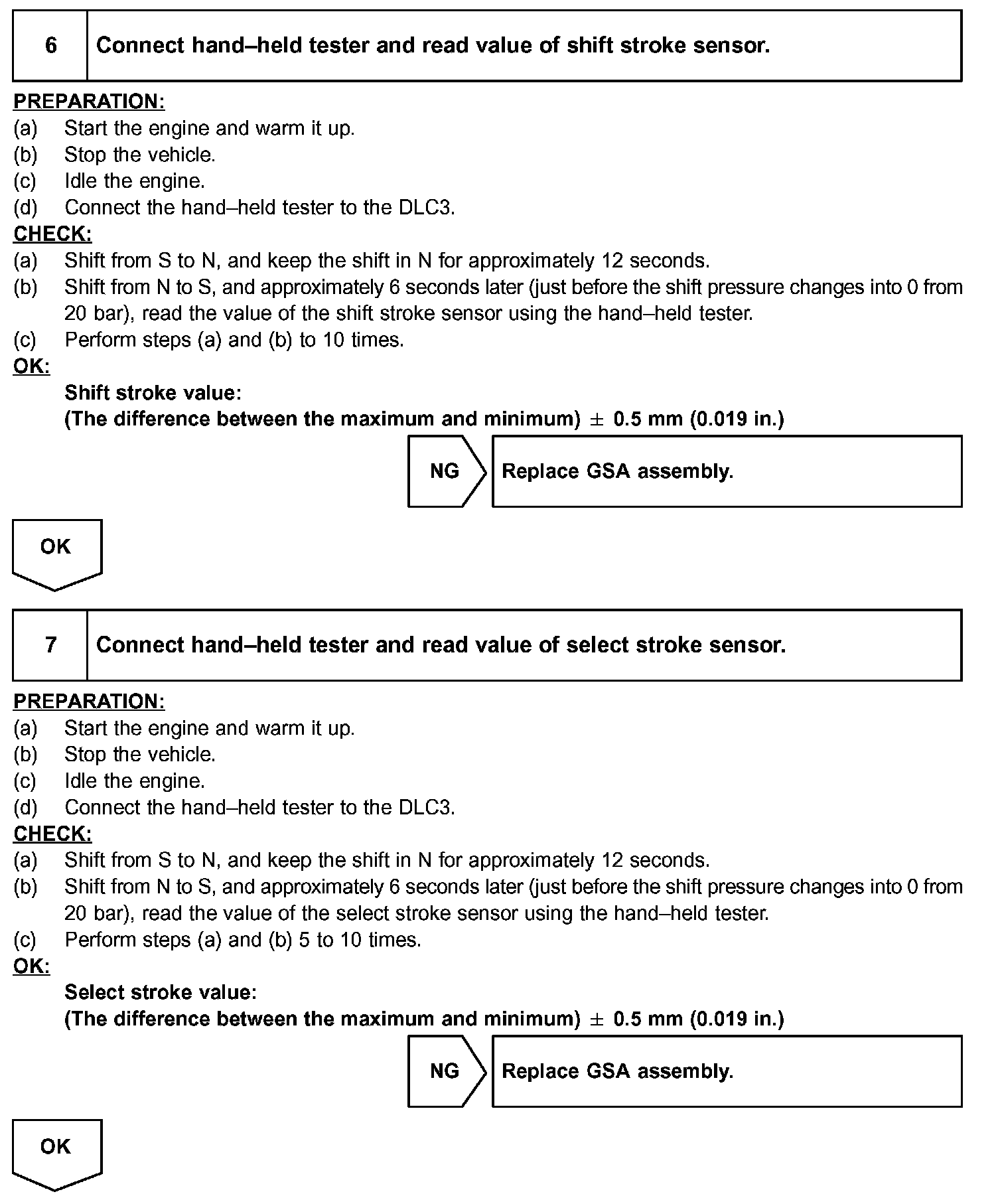

Step 6 - 7:

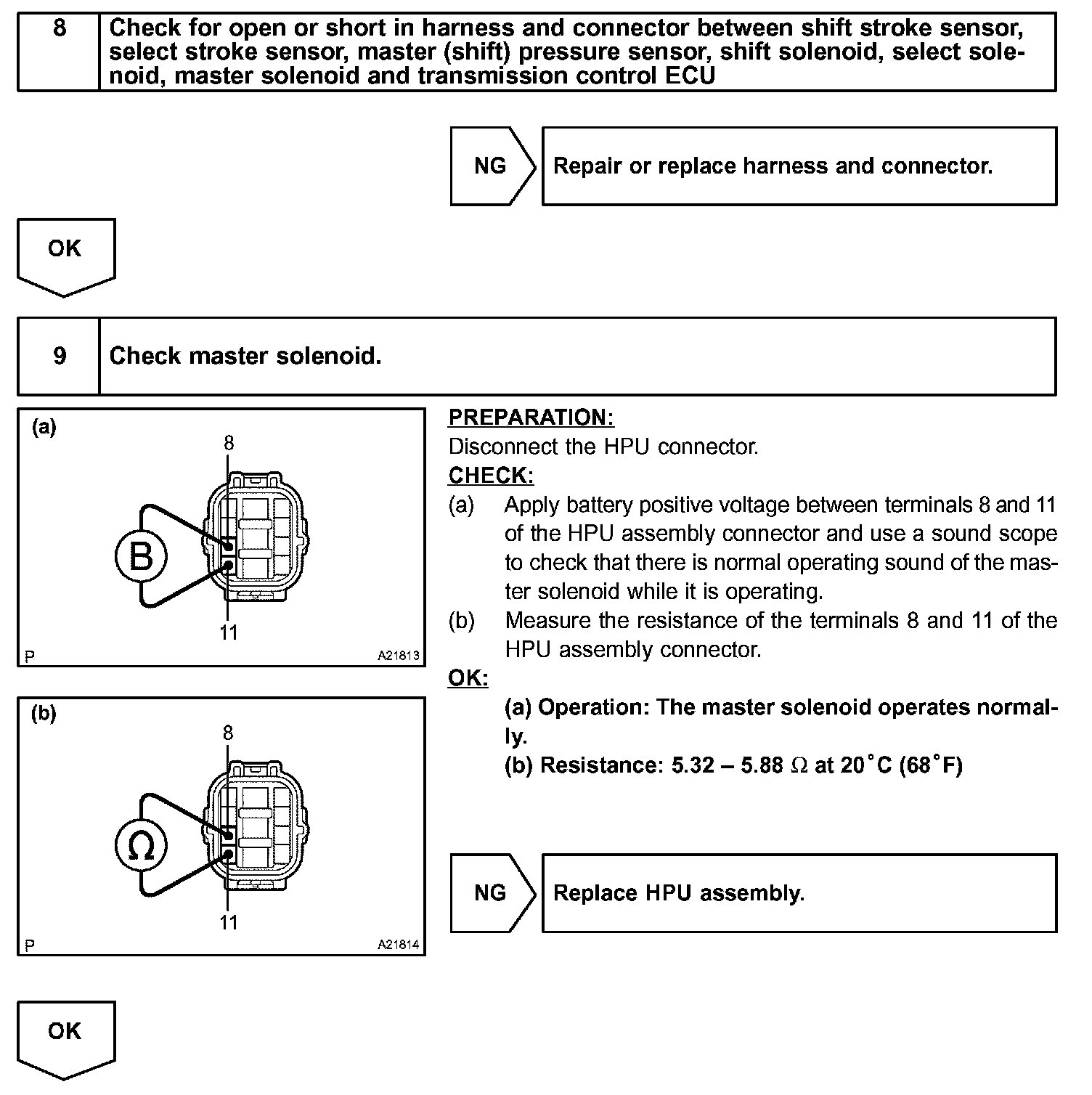

Step 8 - 9:

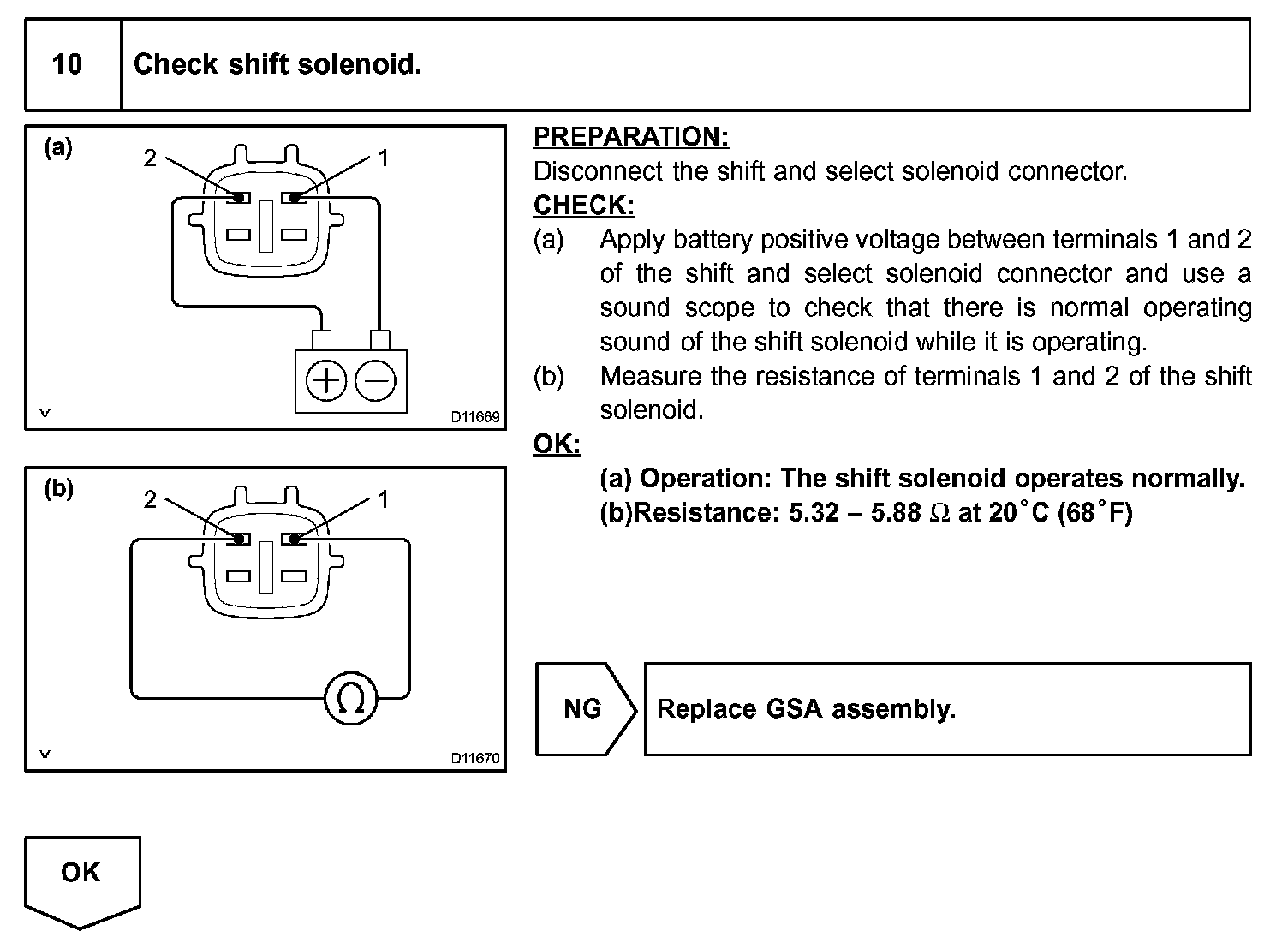

Step 10:

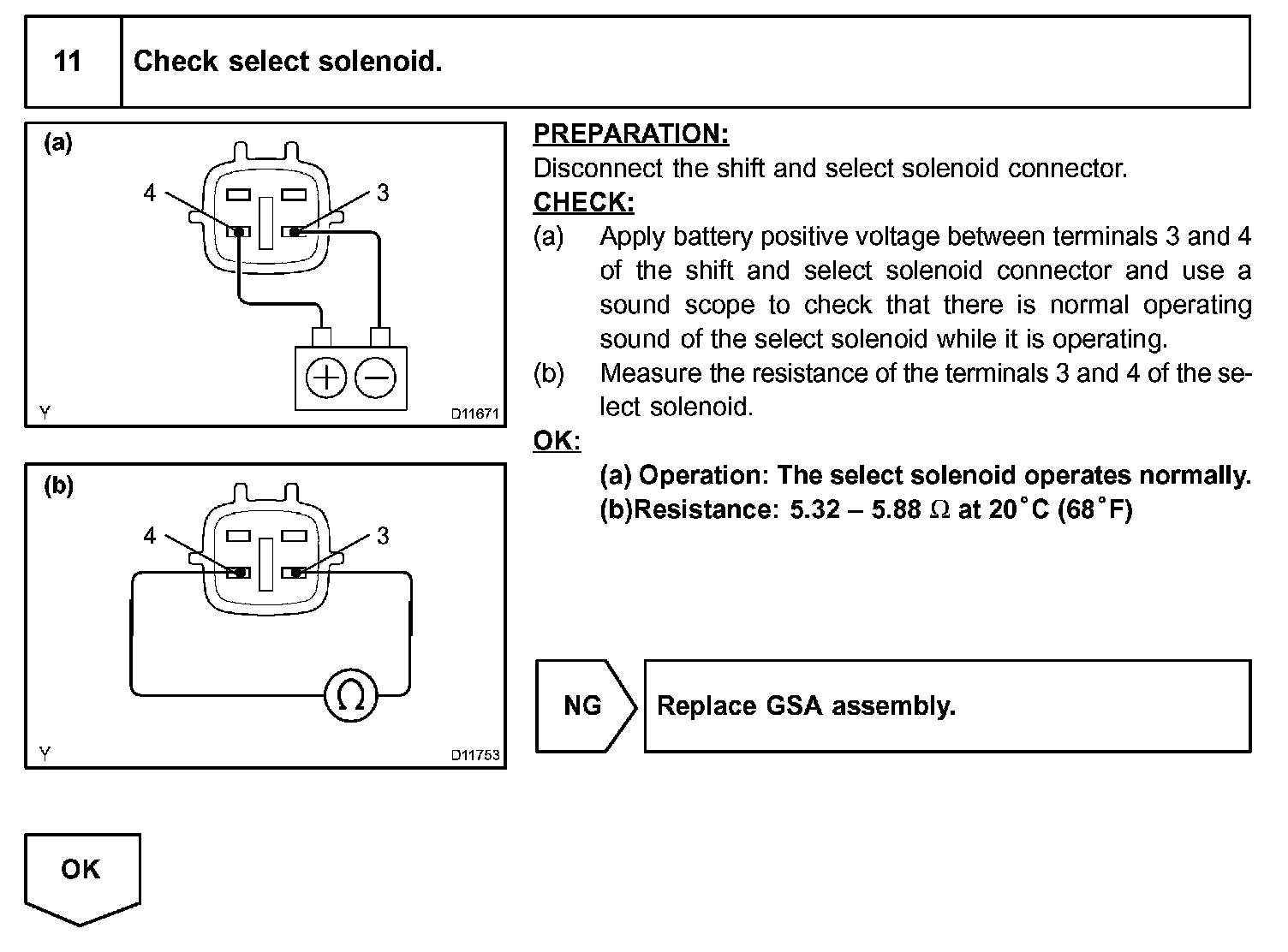

Step 11:

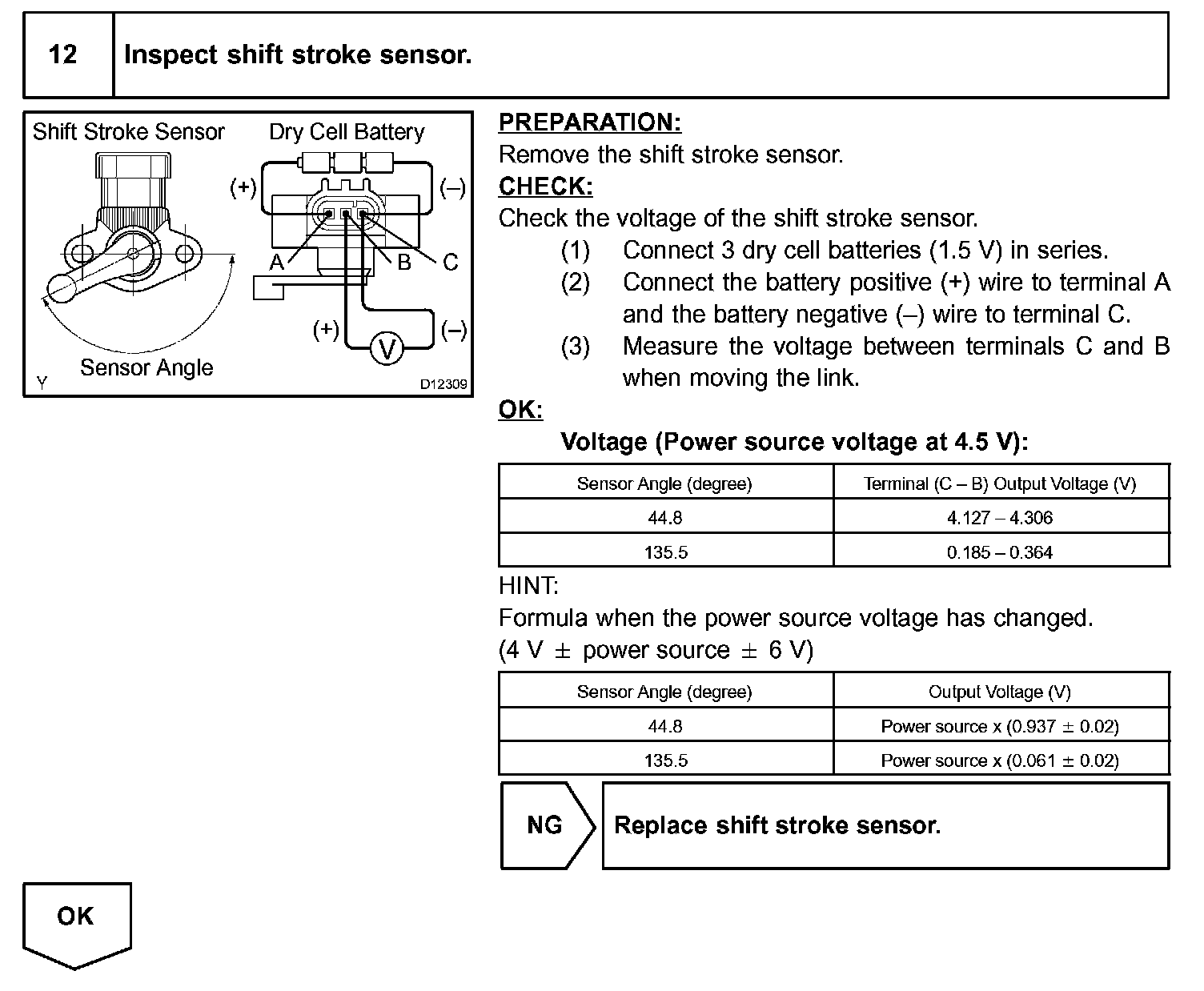

Step 12:

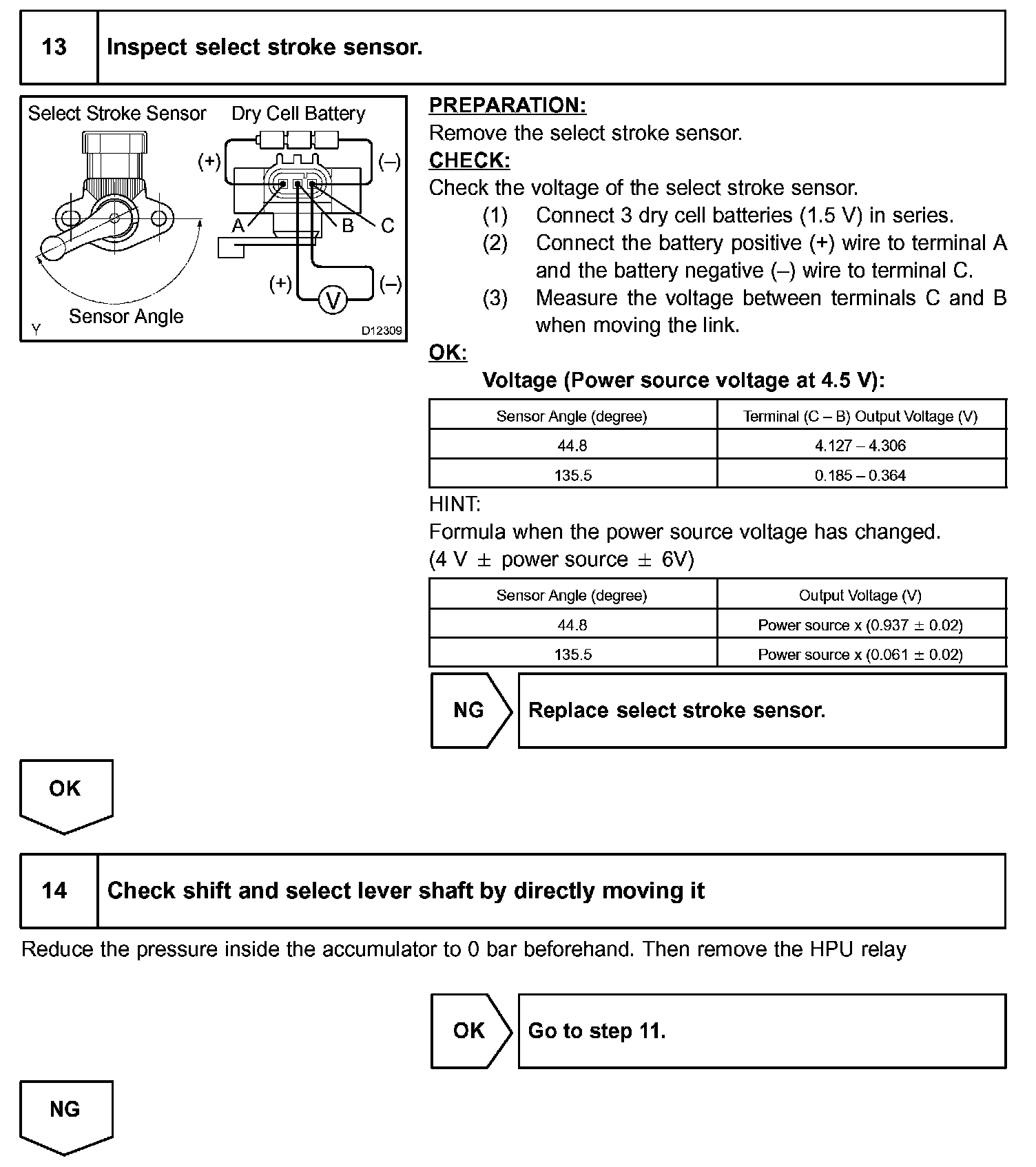

Step 13 - 14:

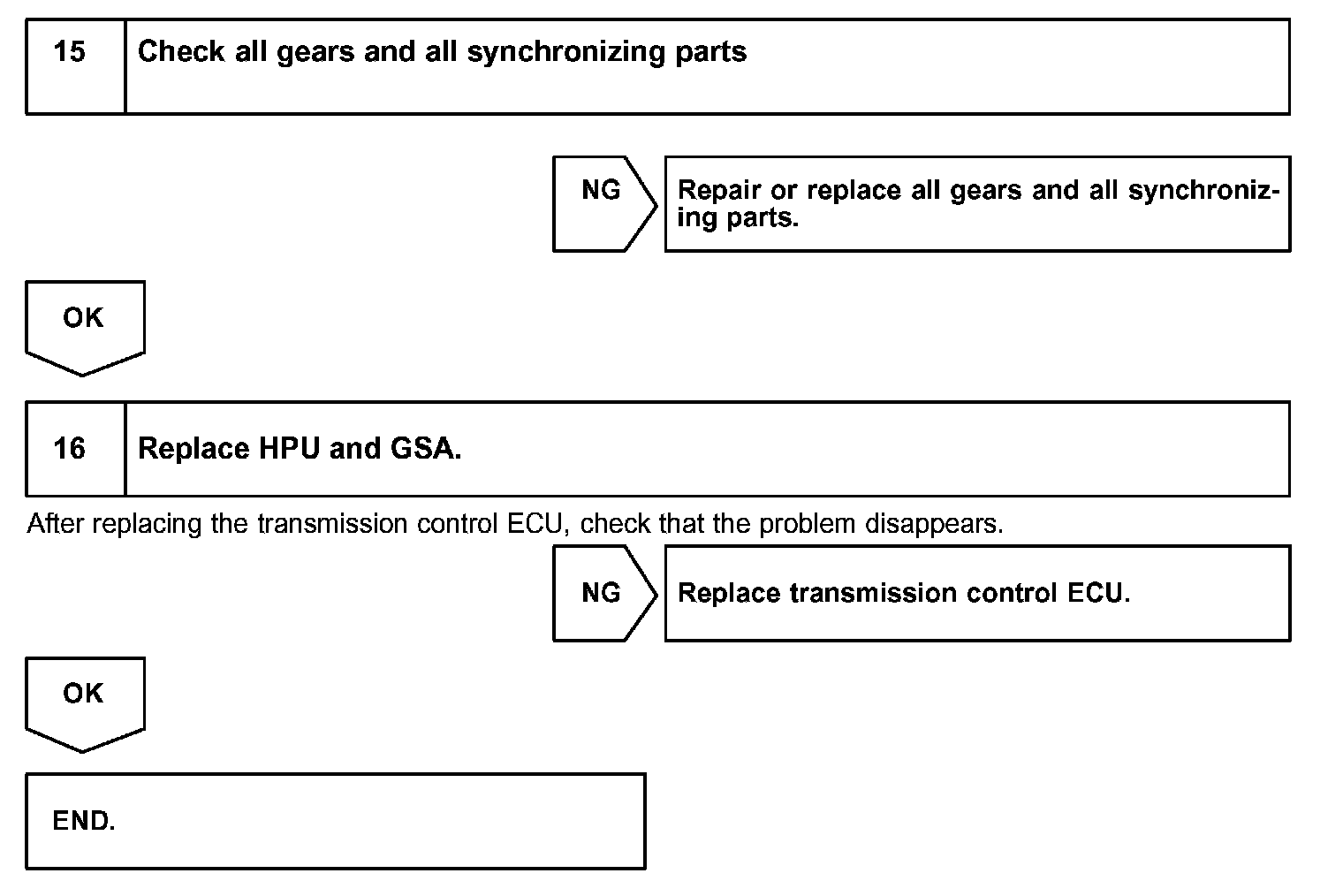

Step 15 - 16:

INSPECTION PROCEDURE

HINT: Read freeze frame data using hand-held tester or OBD II scan tool, as freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, etc. at the time of the malfunction.
