Troubleshooting

DTC P1126 MAGNETIC CLUTCH CIRCUIT MALFUNCTION *

*: Only for sequential manual transmission vehicle.

CIRCUIT DESCRIPTION

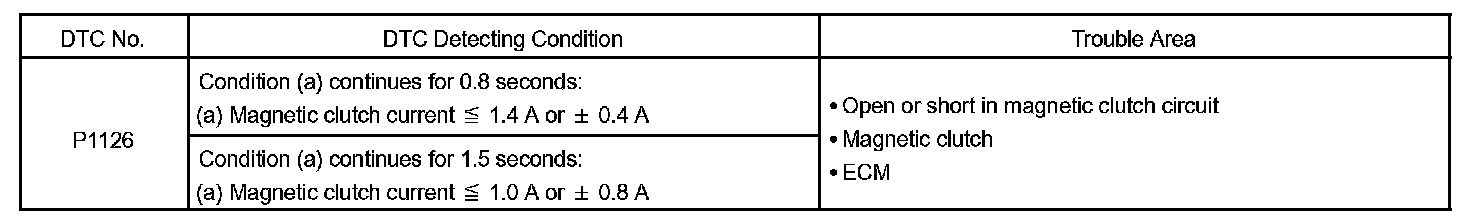

DTC Detecting Condition:

The magnetic clutch is mounted between the throttle motor and the valve, and it connects the throttle motor with the throttle valve.

The throttle motor opens and closes the throttle valve through the magnetic clutch.

If the electric throttle control system has a malfunction, the magnetic clutch separates the throttle motor from the throttle valve to prevent the motor from operating the valve.

If this DTC is stored, the ECM shuts down the power for the throttle motor and the magnetic clutch, and the throttle valve is fully closed by the return spring.

However, the opening angle of the throttle valve can be controlled by the accelerator pedal through the throttle cable.

MONITOR DESCRIPTION

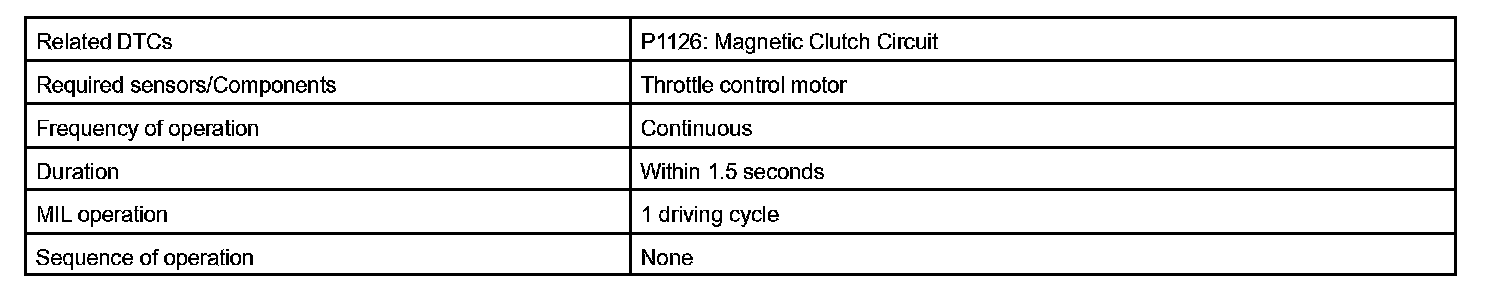

Monitor Strategy:

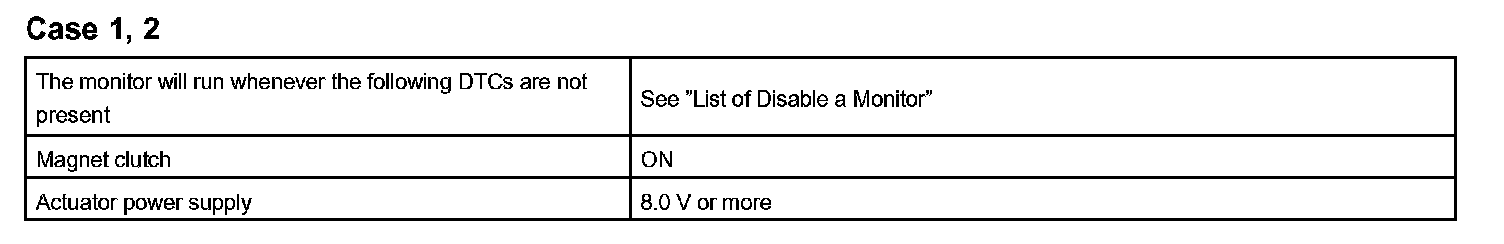

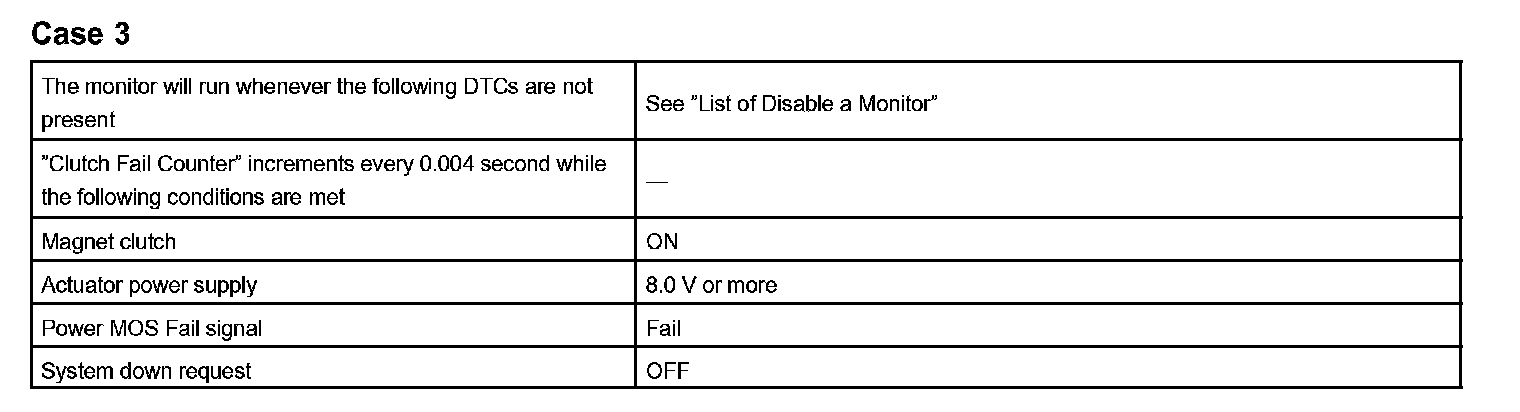

Typical Enabling Conditions:

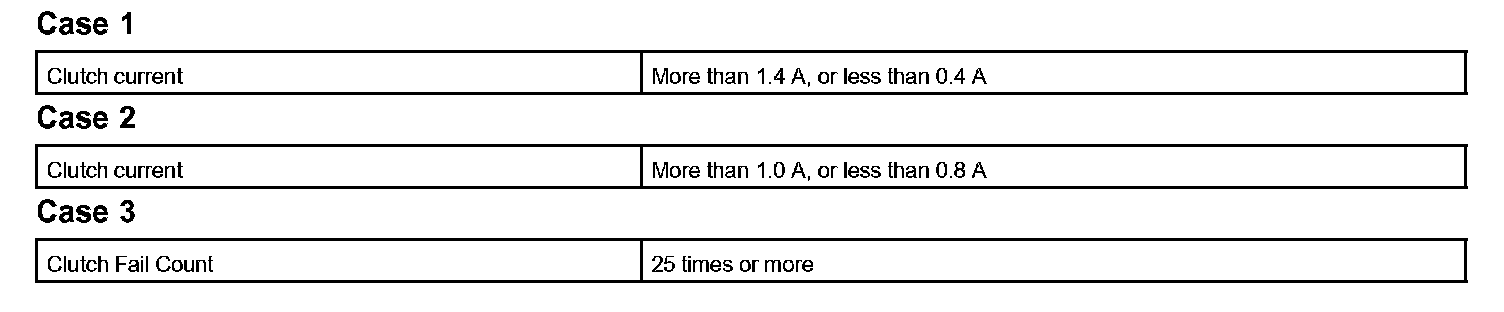

Typical Malfunction Thresholds:

The ECM monitors both the throttle motor clutch current and the throttle position sensor to verify proper operation of the throttle motor and clutch. If the clutch current is out of the standard range, the ECM will interpret this as malfunction of the throttle motor clutch. If the throttle position sensor value does not change when the throttle motor is operated, the ECM will conclude that the throttle motor clutch is stuck.

If the ECM detects a malfunction in the throttle motor clutch, it will:
- Illuminate the MIL and set a DTC.
- Disconnect the electrical supply to the throttle motor.
- Disengage the throttle motor clutch. With the throttle motor clutch disengaged, the throttle motor is disconnected from the throttle valve.

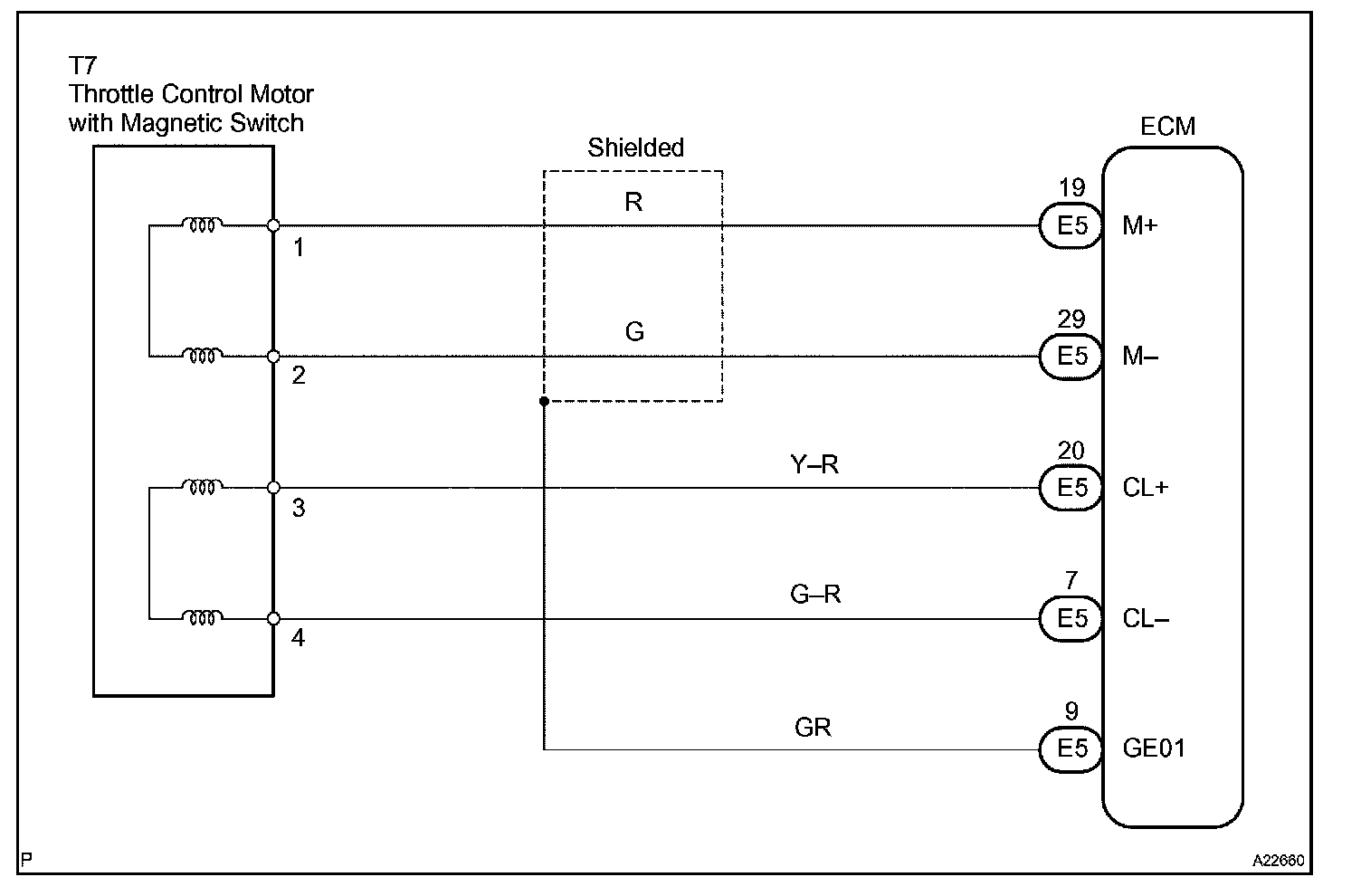

Wiring Diagram:

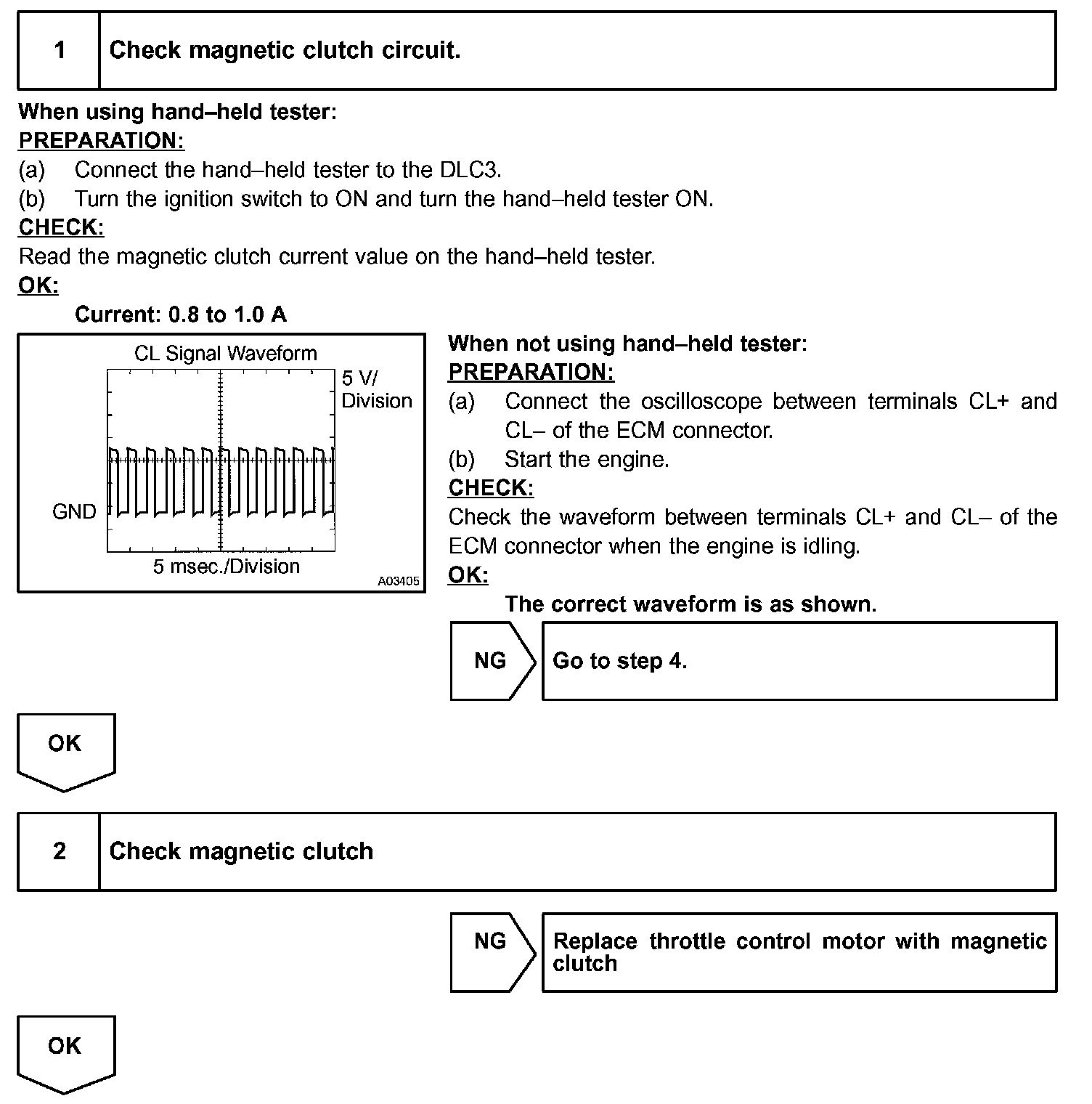

Step 1 - 2:

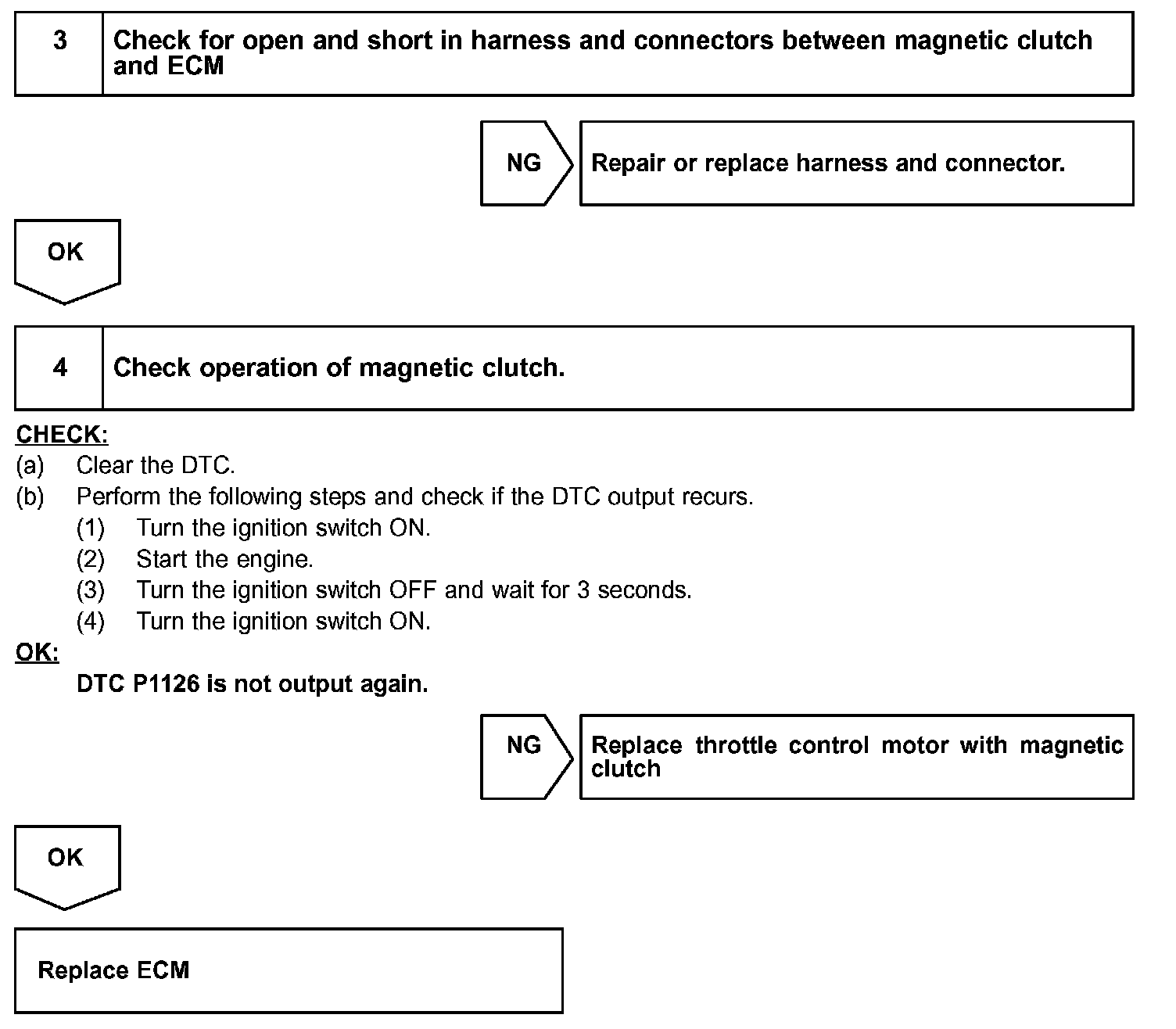

Step 3 - 4:

INSPECTION PROCEDURE

HINT: Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
