P1645

DTC P1645 MULTIPLEX COMMUNICATION MALFUNCTION*

*: Only for sequential manual transmission vehicle.

CIRCUIT DESCRIPTION

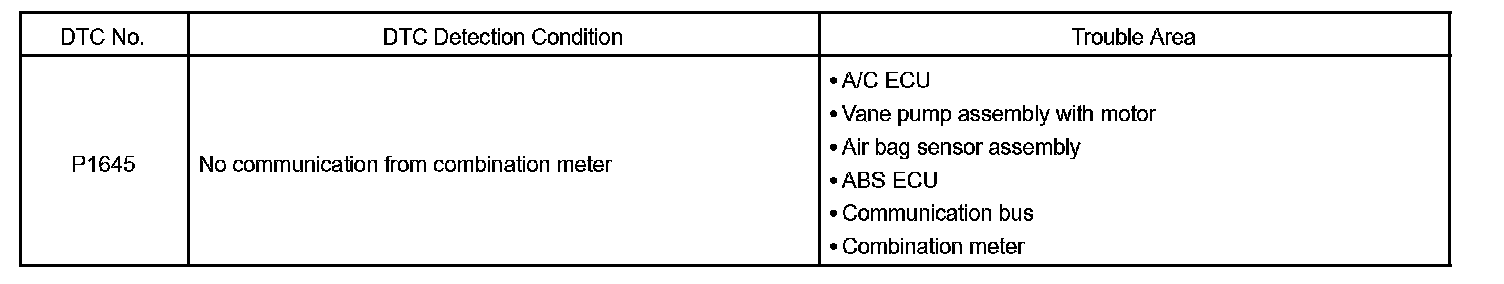

DTC Detection Condition:

The ECM receives information about the ON/OFF status of the A/C from the combination meter. The ECM uses the information to control the engine (idle up, etc.).

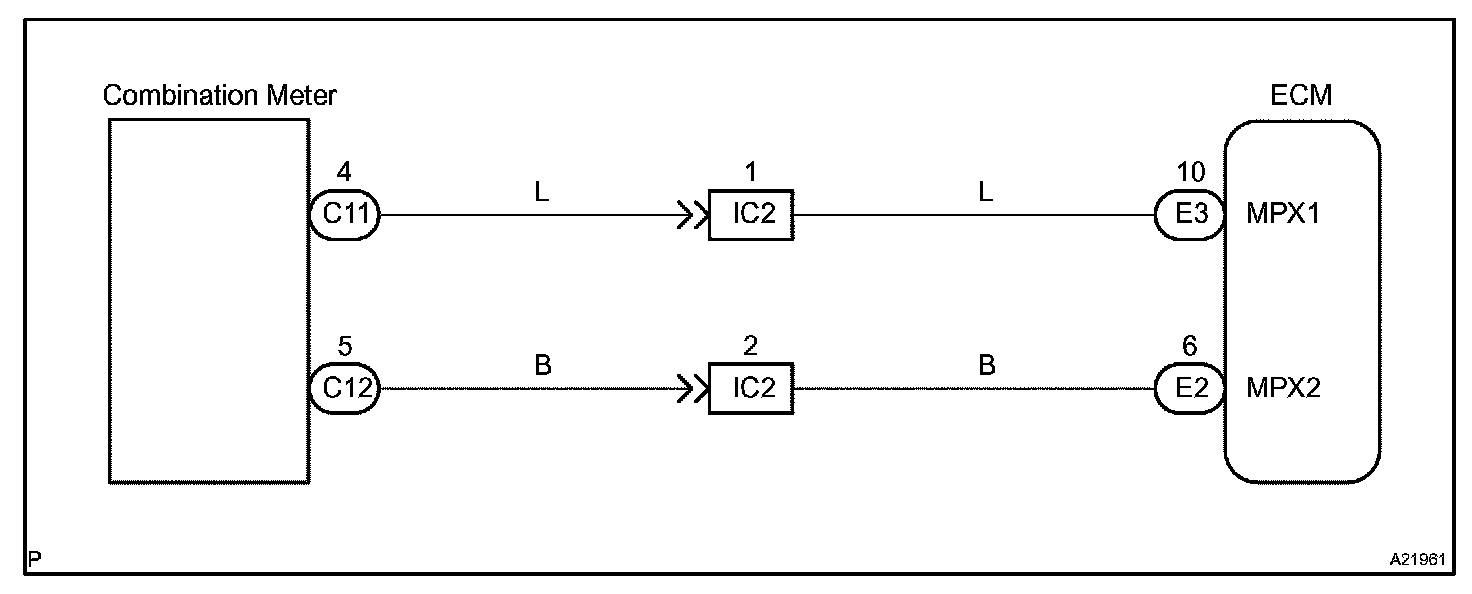

Wiring Diagram:

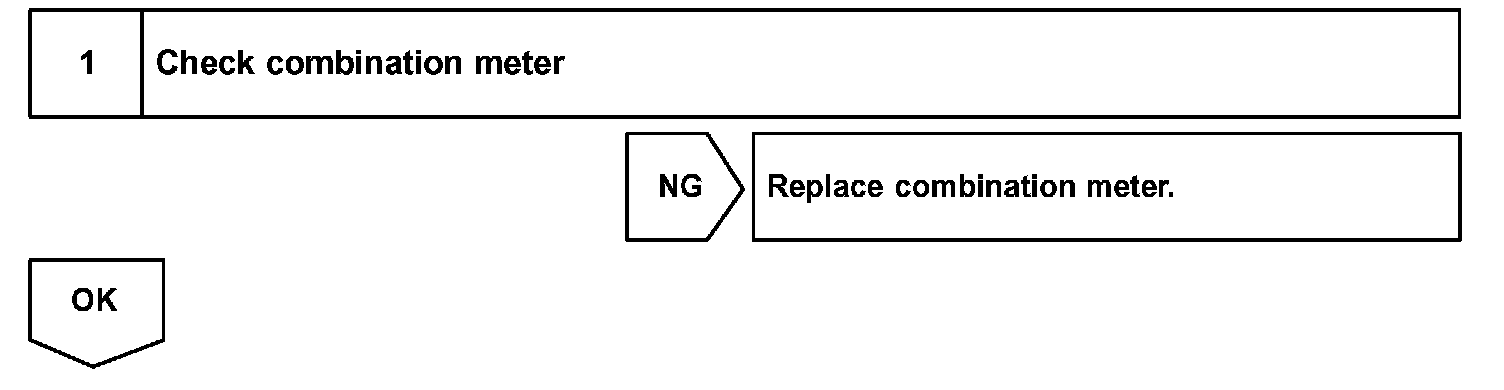

Step 1:

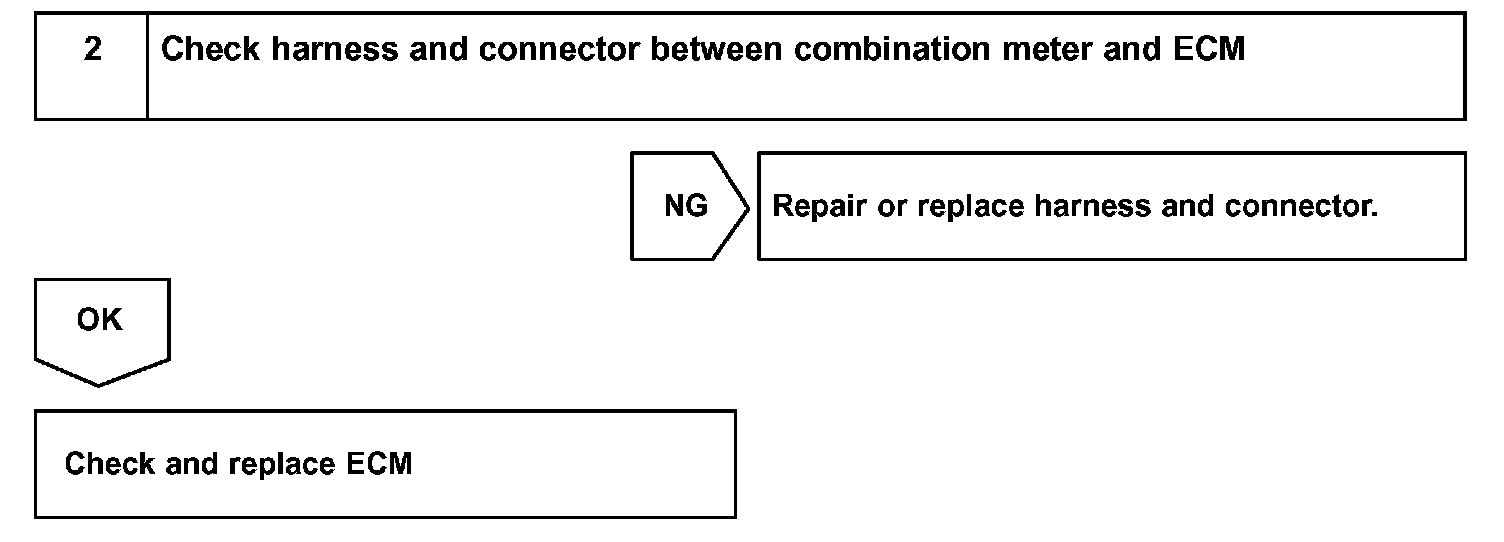

Step 2:

INSPECTION PROCEDURE

HINT: Read freeze frame data using the hand-held tester or the OBD II scan tool, as freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, this is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.
