Troubleshooting

DTC P2111 THROTTLE ACTUATOR CONTROL SYSTEM-STUCK OPEN*

*: Only for sequential manual transmission vehicle.

CIRCUIT DESCRIPTION

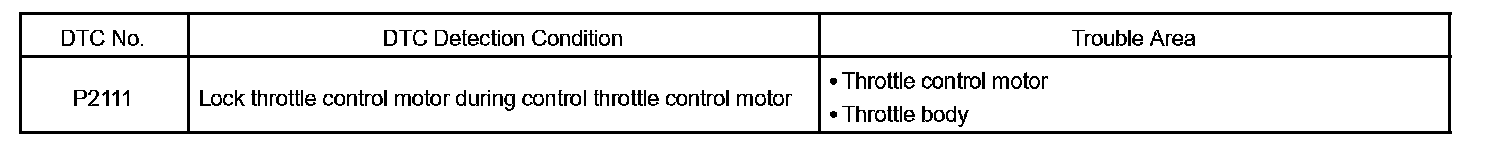

DTC Detection Condition:

Throttle motor is operated by the ECM and it opens and closes the throttle valve by a gear. The opening angle of the throttle valve is detected by the throttle position sensor which is mounted on the throttle body and it provides feedback to the ECM to control the throttle motor in order to maintain the throttle valve opening angle properly in response to driving condition. If this DTC is stored, the ECM shuts down the power for the throttle motor and the magnetic clutch, and the throttle valve is fully closed by the return spring. However, the opening angle of the throttle valve can be controlled by the accelerator pedal through the throttle cable.

MONITOR DESCRIPTION

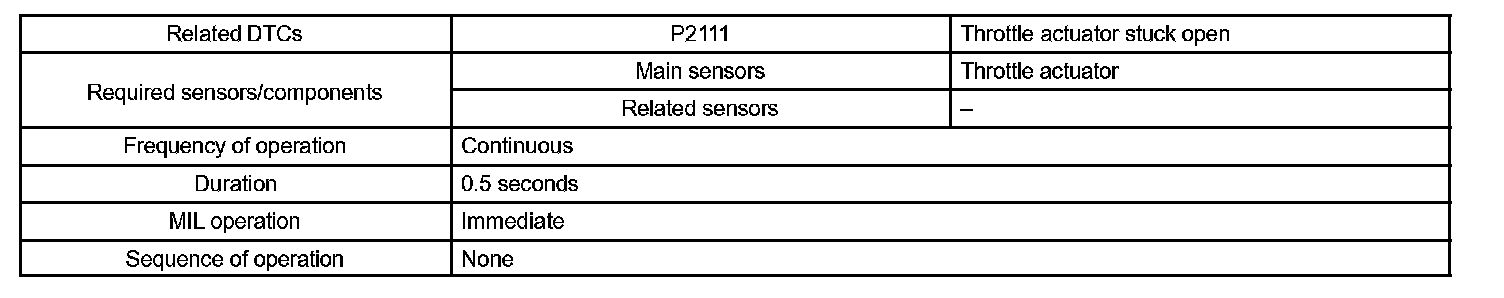

Monitor Strategy:

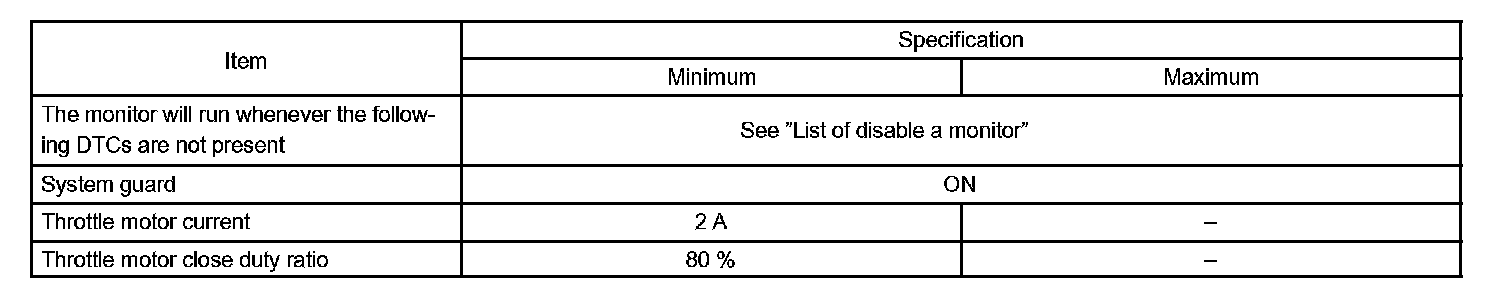

Typical Enabling Condition:

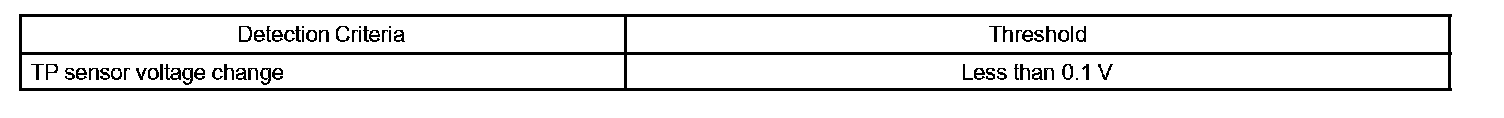

Typical Malfunction Thresholds:

The throttle motor is operated by the engine control module (ECM) and it opens and closes the throttle valve. The opening angle of the throttle valve is detected by the throttle position sensor. It provides feedback to the ECM to control the throttle motor and the throttle valve opening angle properly in response to driver inputs.

The ECM concludes that there is a malfunction of the electrical throttle control system (ETCS) when the throttle valve remains at a fixed angle although high drive current is supplied from the ECM. The ECM will turn on the malfunction indicator lamp (MIL) and a DTC is set.

Wiring Diagram:

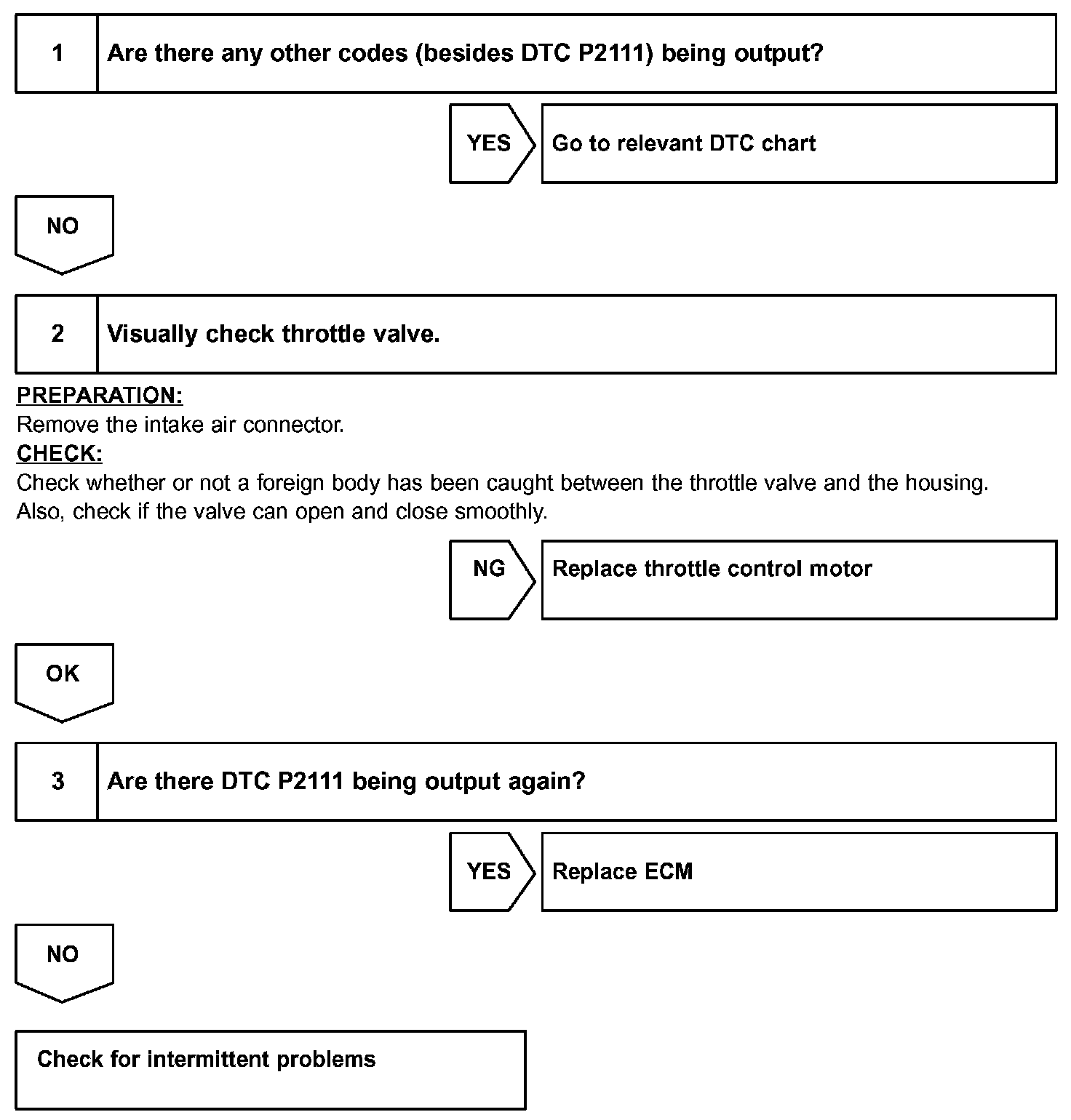

Step 1 - 3:

INSPECTION PROCEDURE

HINT: Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

CHECK FOR INTERMITTENT PROBLEMS

Hand-held tester only:
Inspect the vehicle's ECM using check mode. Intermittent problems are easier to detect when the ECM is in check mode. In check mode, the ECM uses 1 trip detection logic, which has a higher sensitivity to malfunctions than normal mode (default), which uses 2 trip detection logic.

a. Clear the DTCs.
b. Change to check mode.
c. Perform a simulation test.
d. Check the connector and terminal.
e. Wiggle the harness and connector.
