Basic Inspection

BASIC INSPECTION

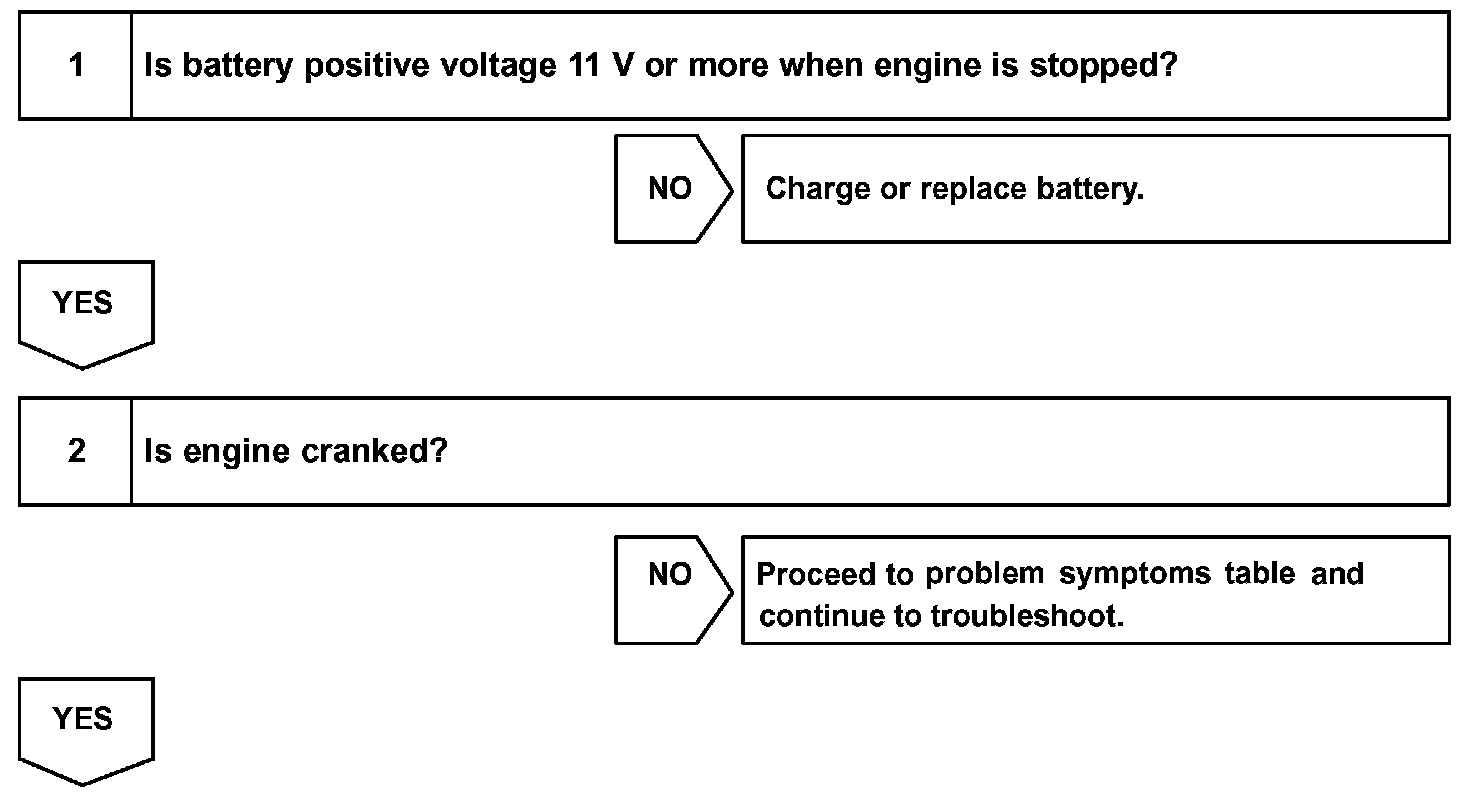

Step 1 - 2:

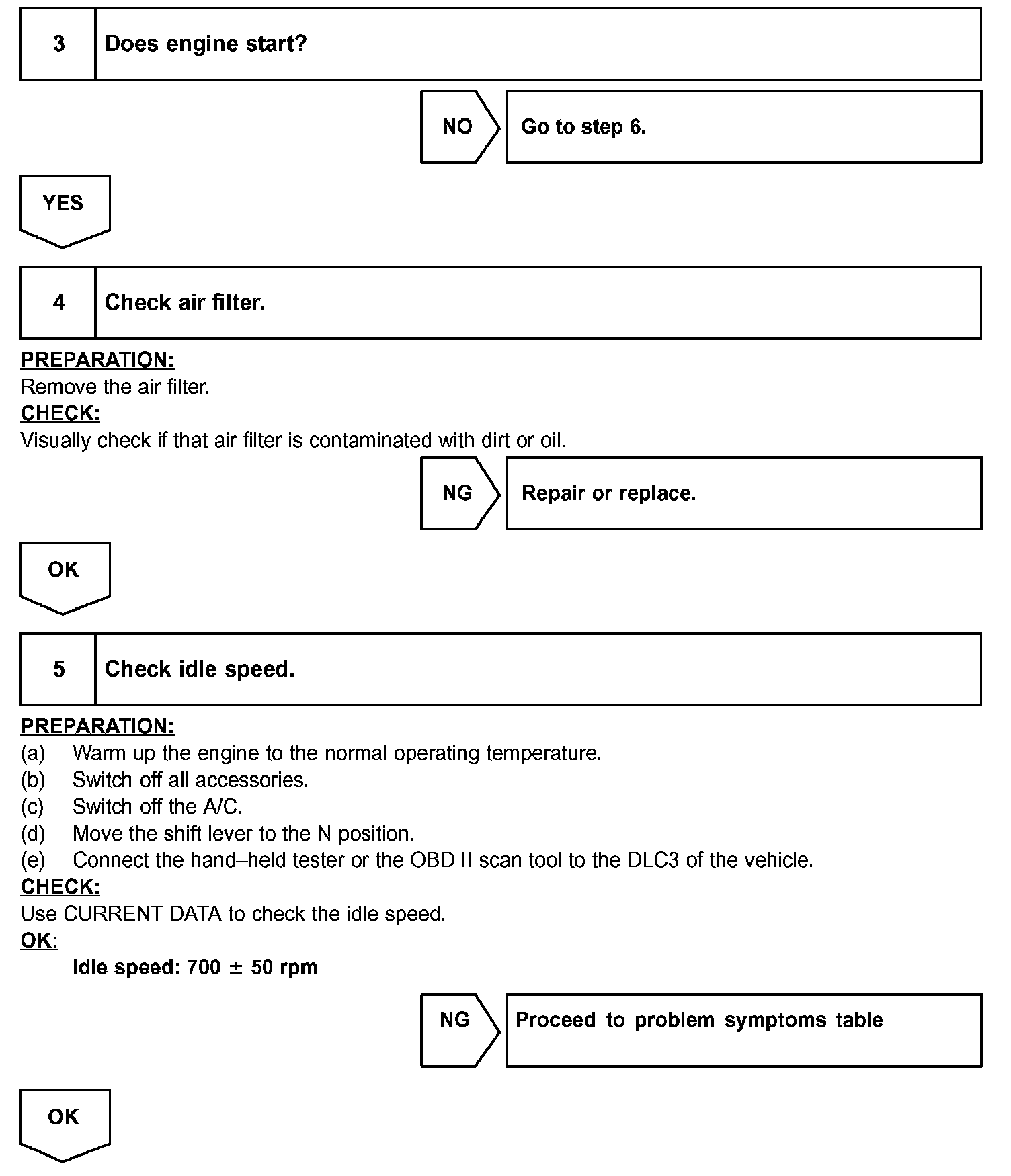

Step 3 - 5:

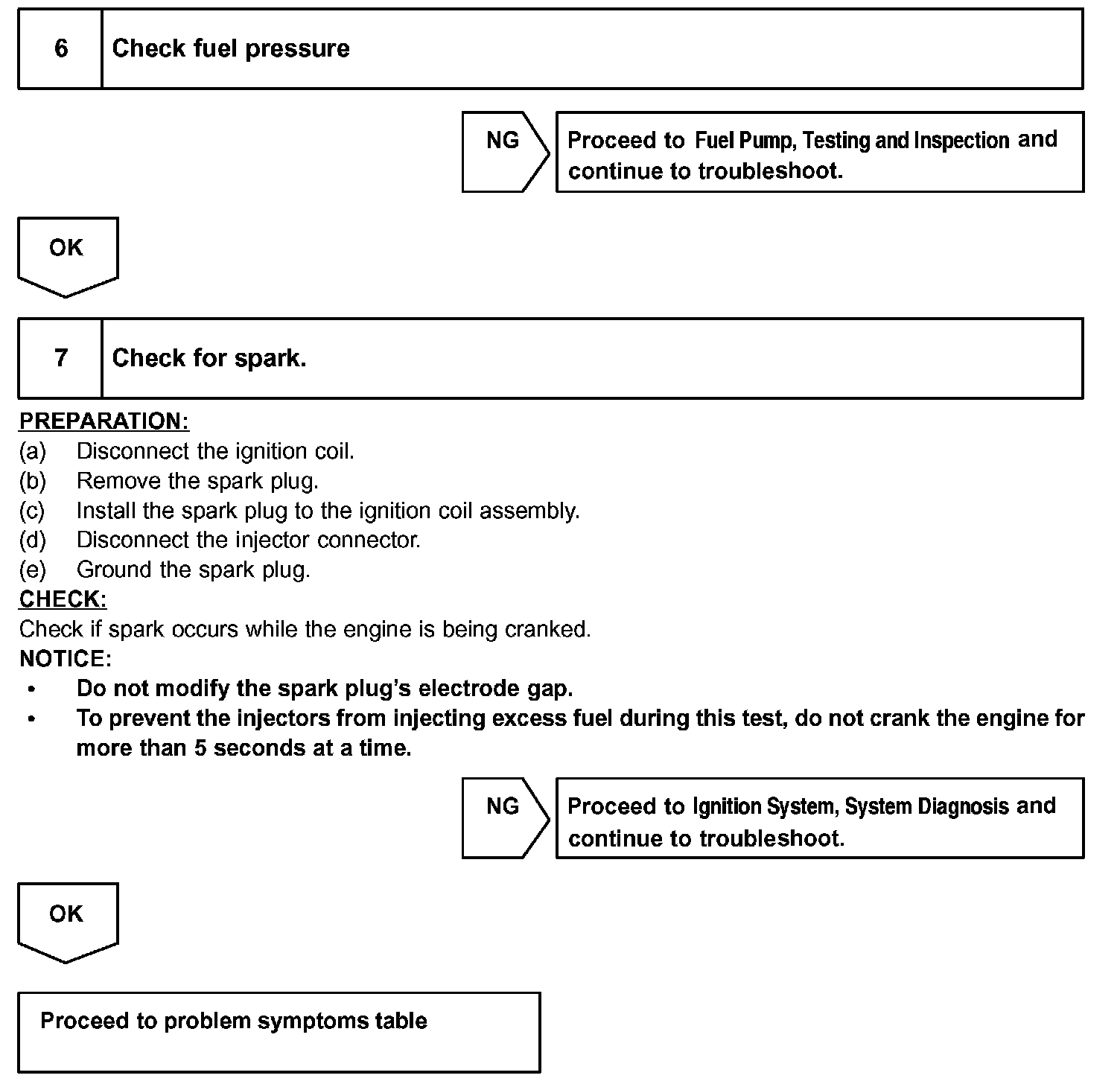

Step 6 - 7:

When the malfunction is not confirmed in the DTC check, troubleshooting should be carried out in all the possible circuits considered as causes of the problem. In many cases, by carrying out the basic engine check shown in the flow chart, the location causing the problem can be found quickly and efficiently. This check is essential for engine troubleshooting.
