Component Tests and General Diagnostics

INSPECTION

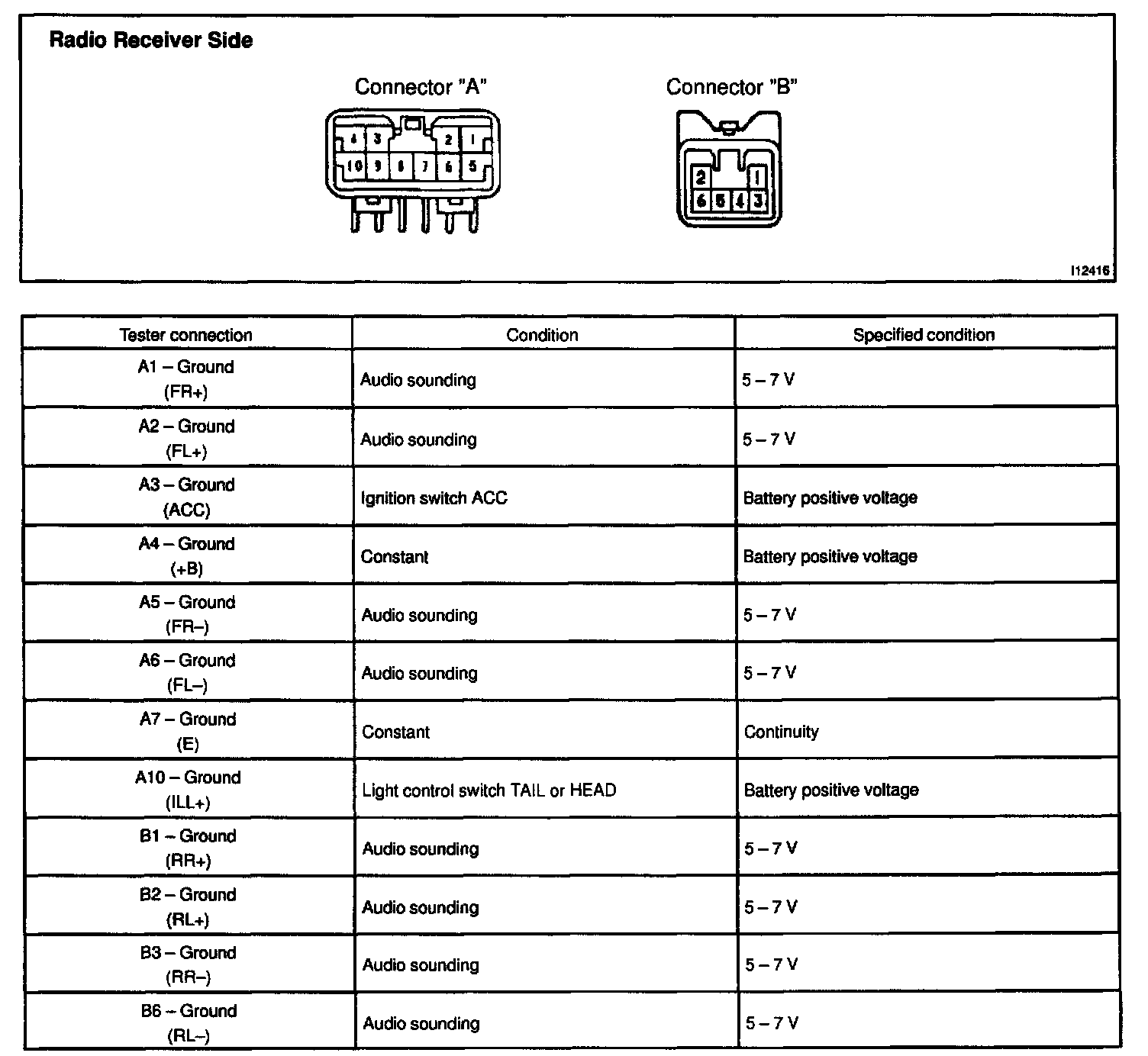

Radio Receiver Side:

INSPECT RADIO RECEIVER ASSEMBLY CIRCUIT
Disconnect the connectors from the radio receiver assembly, and inspect the connector on the wire harness side.

If the circuit is not as specified, inspect the circuits connected to other parts.
