Door Lock Control Switch

DOOR LOCK CONTROL SWITCH

CIRCUIT DESCRIPTION

The door lock control switch is ON when the door lock knob is in the lock position and OFF when the lock knob is in the unlock position.

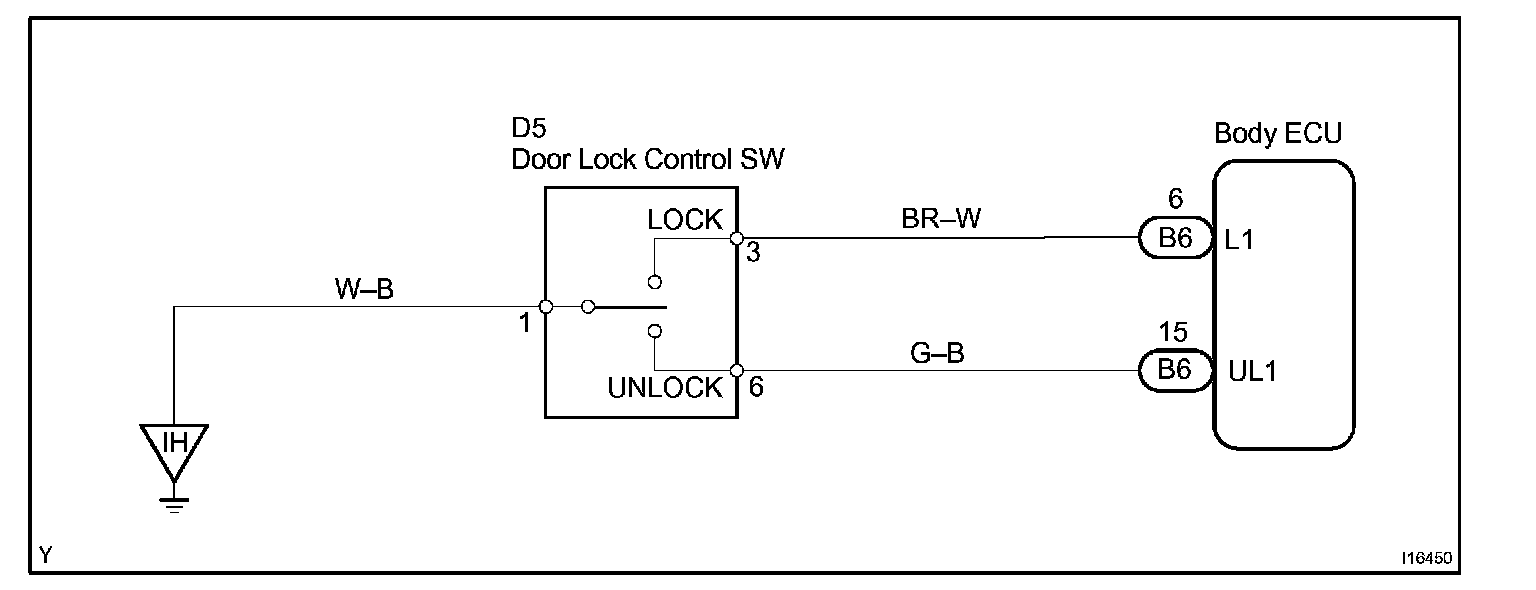

Wiring Diagram:

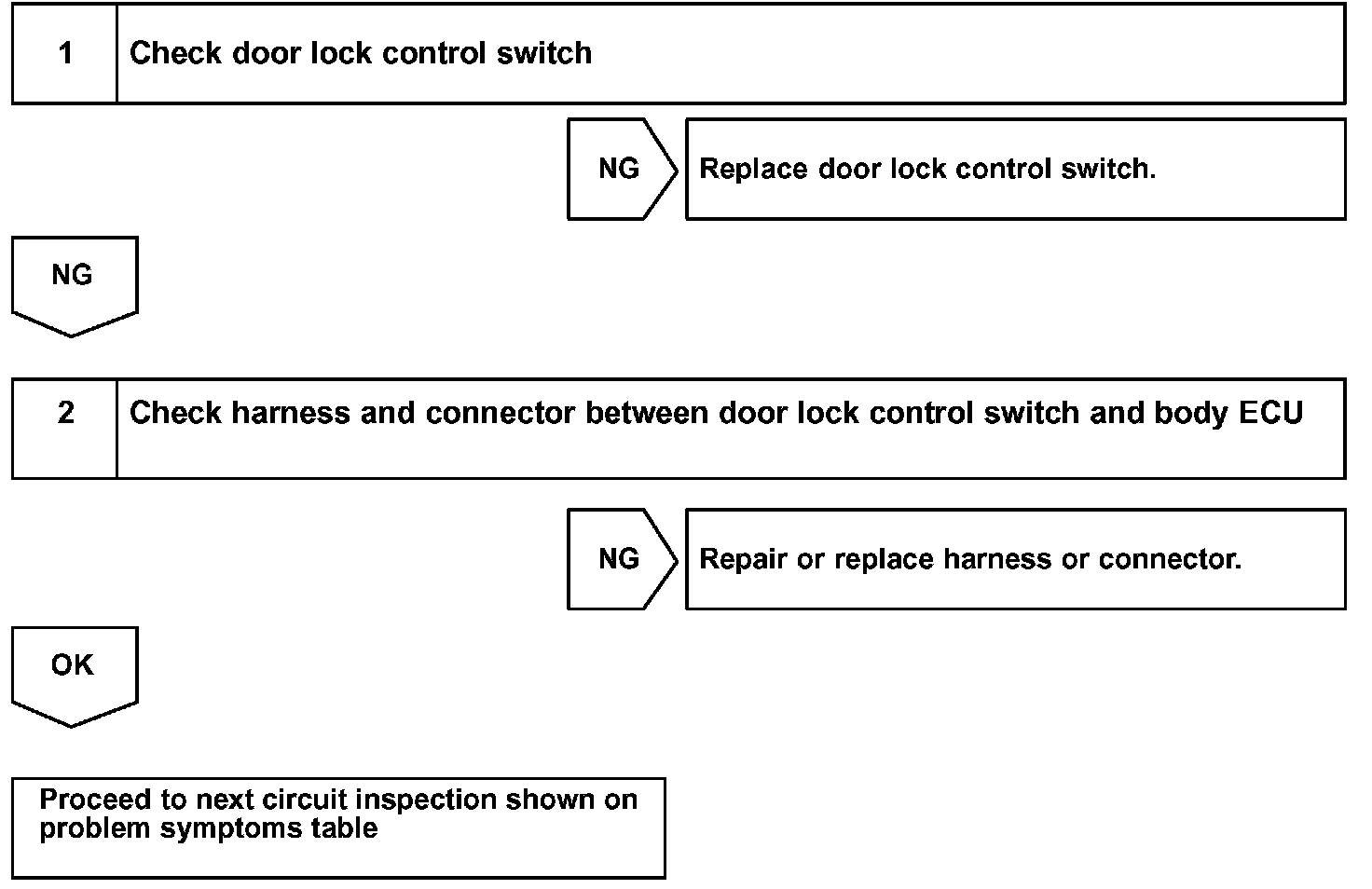

Step 1 - 2:




INSPECTION PROCEDURE
