Door Lock Motor Circuit

DOOR LOCK MOTOR CIRCUIT

CIRCUIT DESCRIPTION
When the door switch is set to LOCK, the body ECU outputs a signal to lock all of the doors.

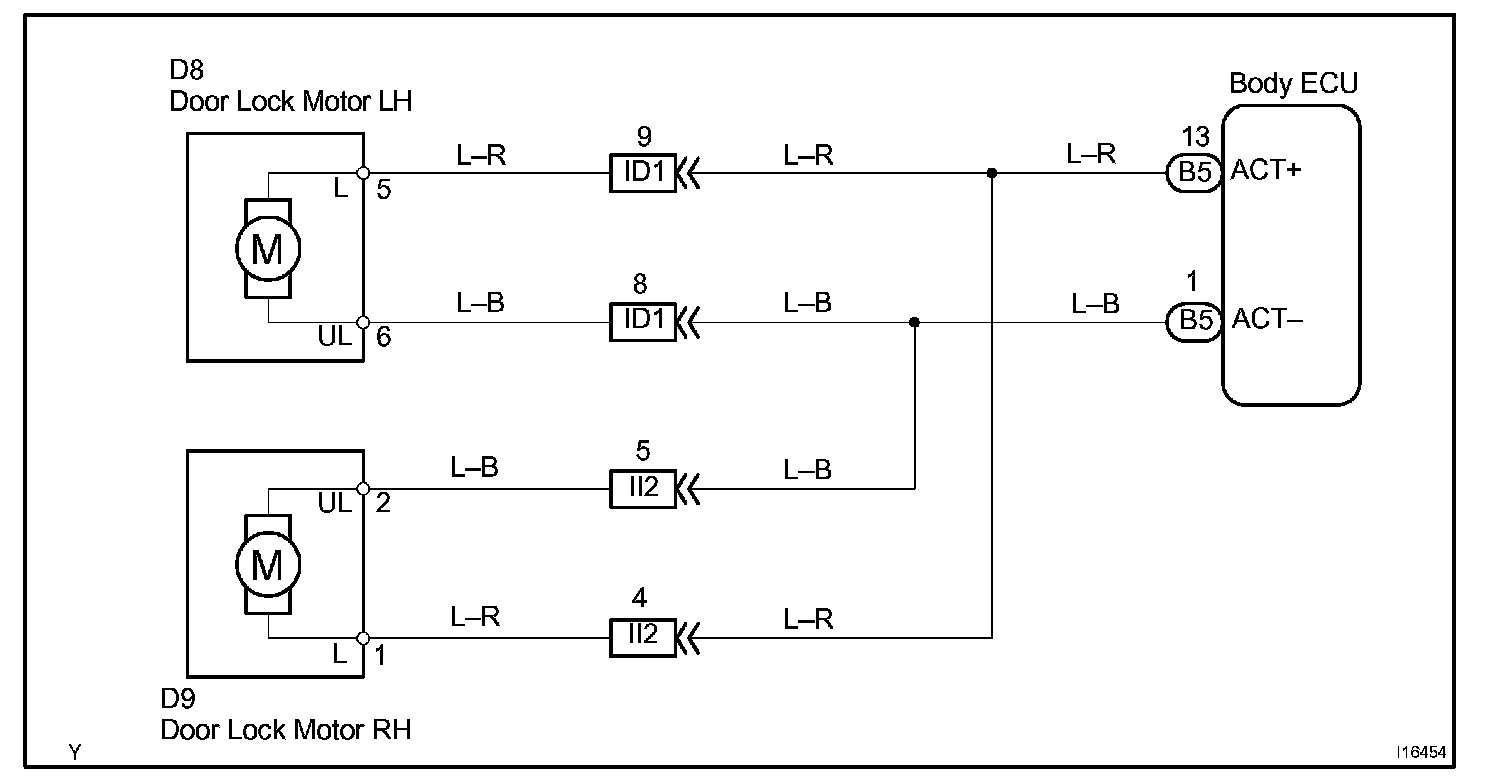

Wiring Diagram:

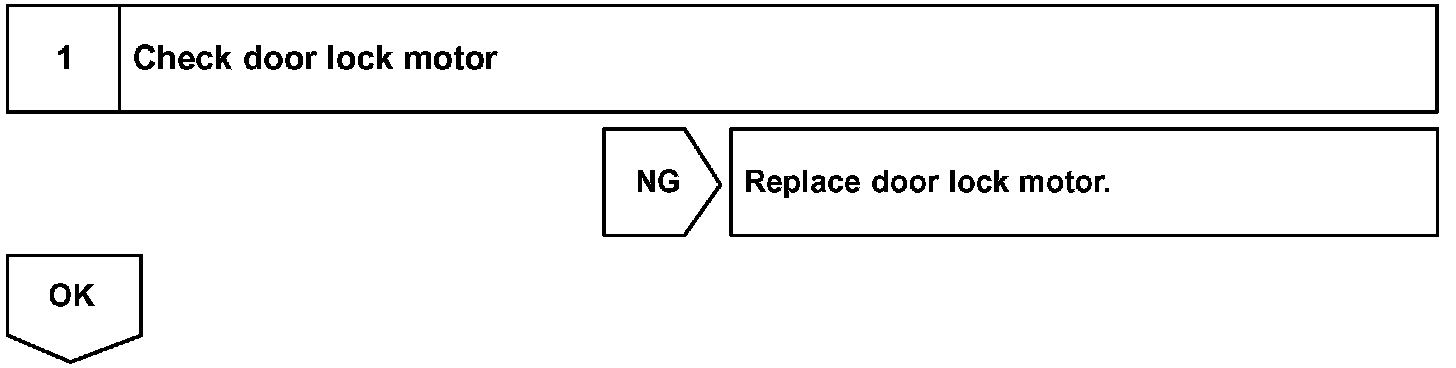

Step 1:

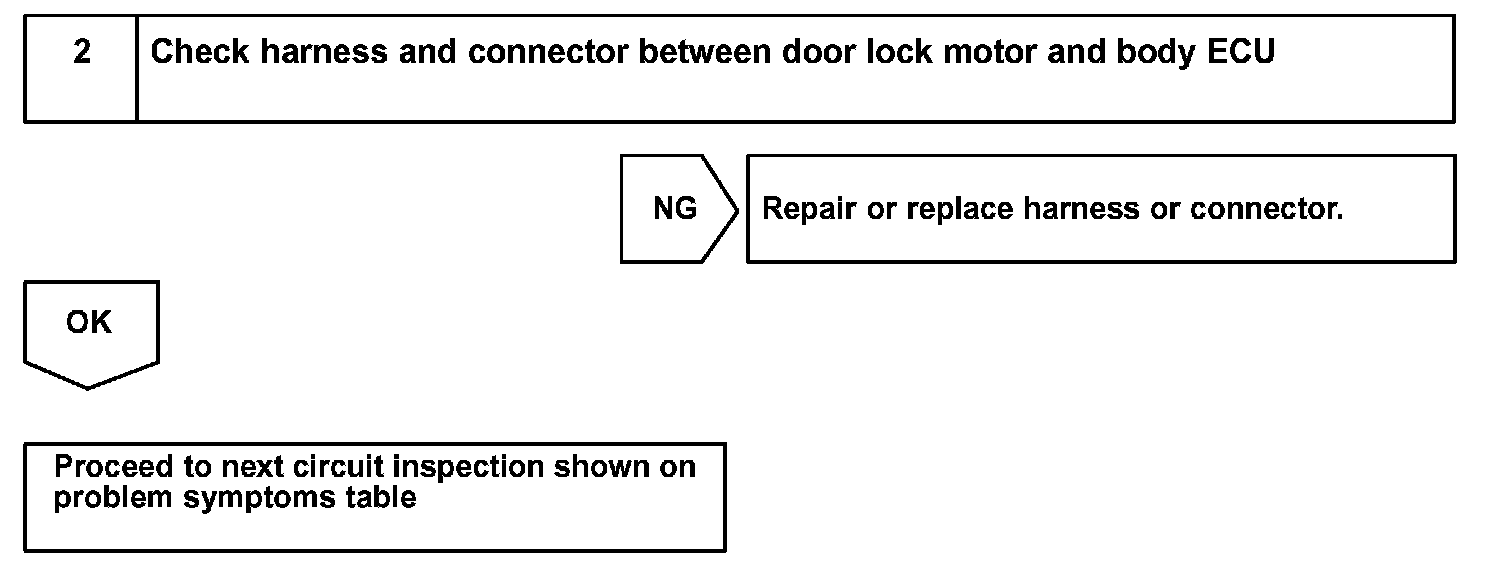

Step 2:

INSPECTION PROCEDURE
