Ignition Switch Power Source Circuit
IGNITION SWITCH POWER SOURCE CIRCUITCIRCUIT DESCRIPTION
When the ignition switch is turned to the ON position, battery positive voltage is applied to terminal IG of the body ECU.

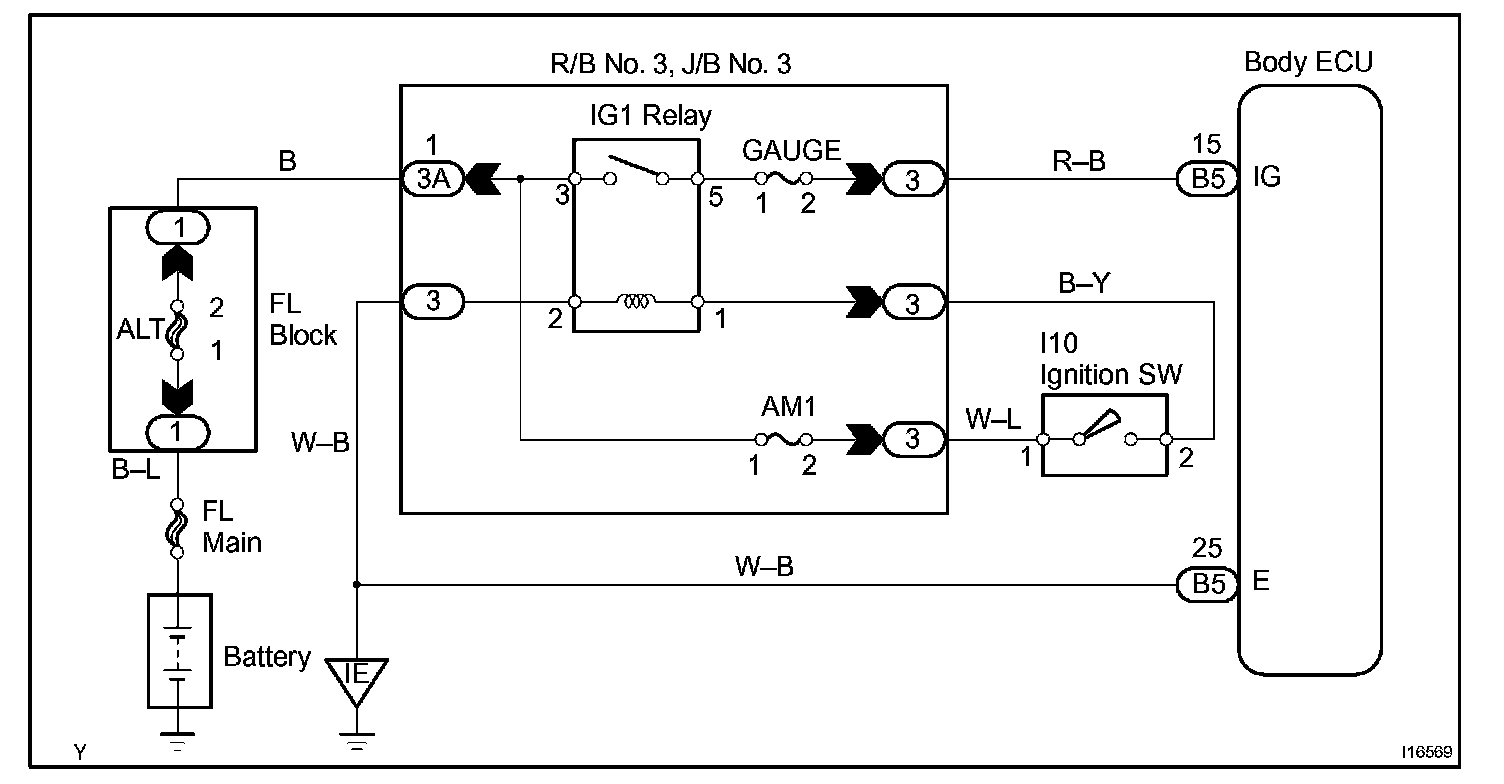

Wiring Diagram:
Step 1:

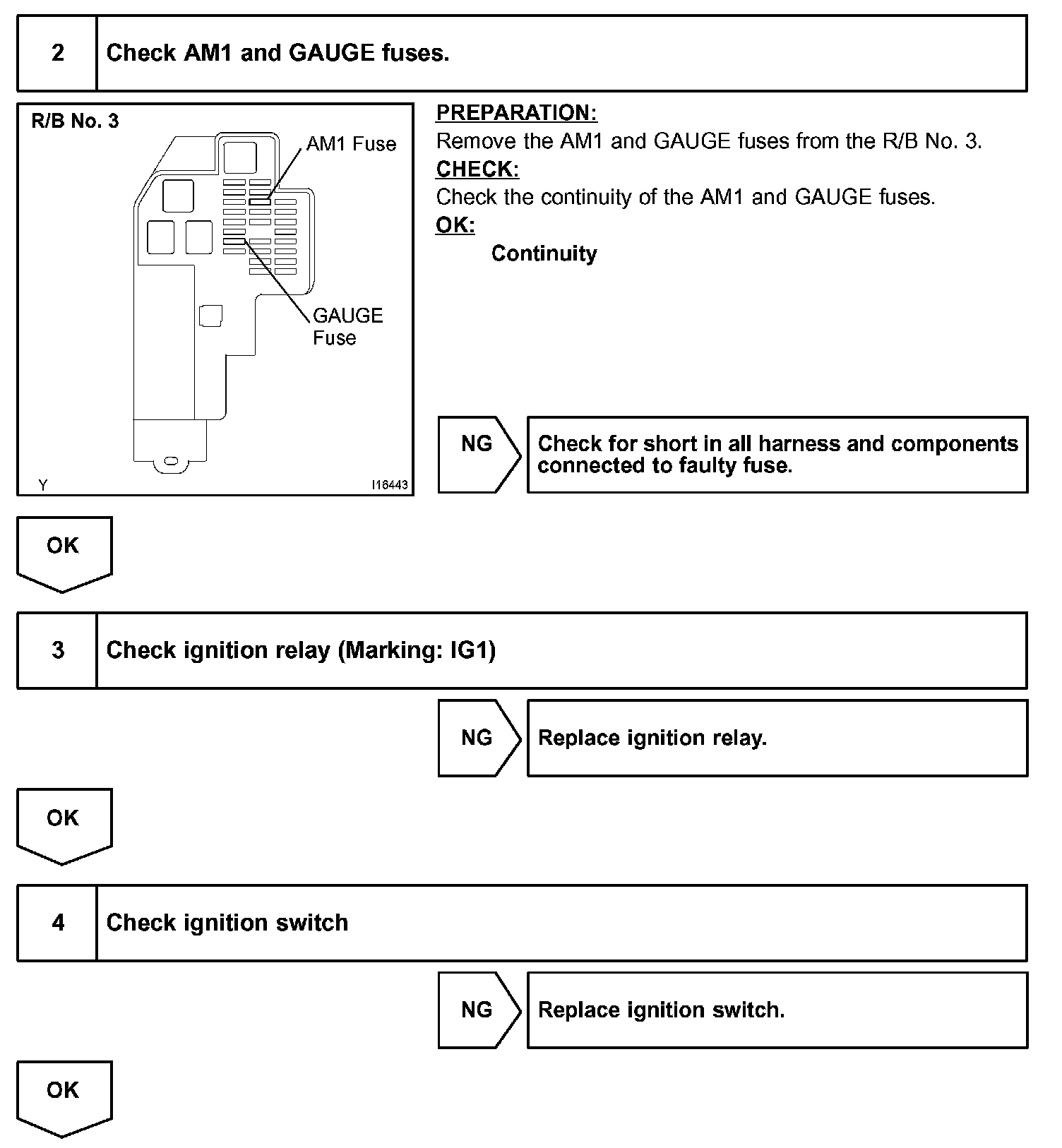

Step 2 - 4:

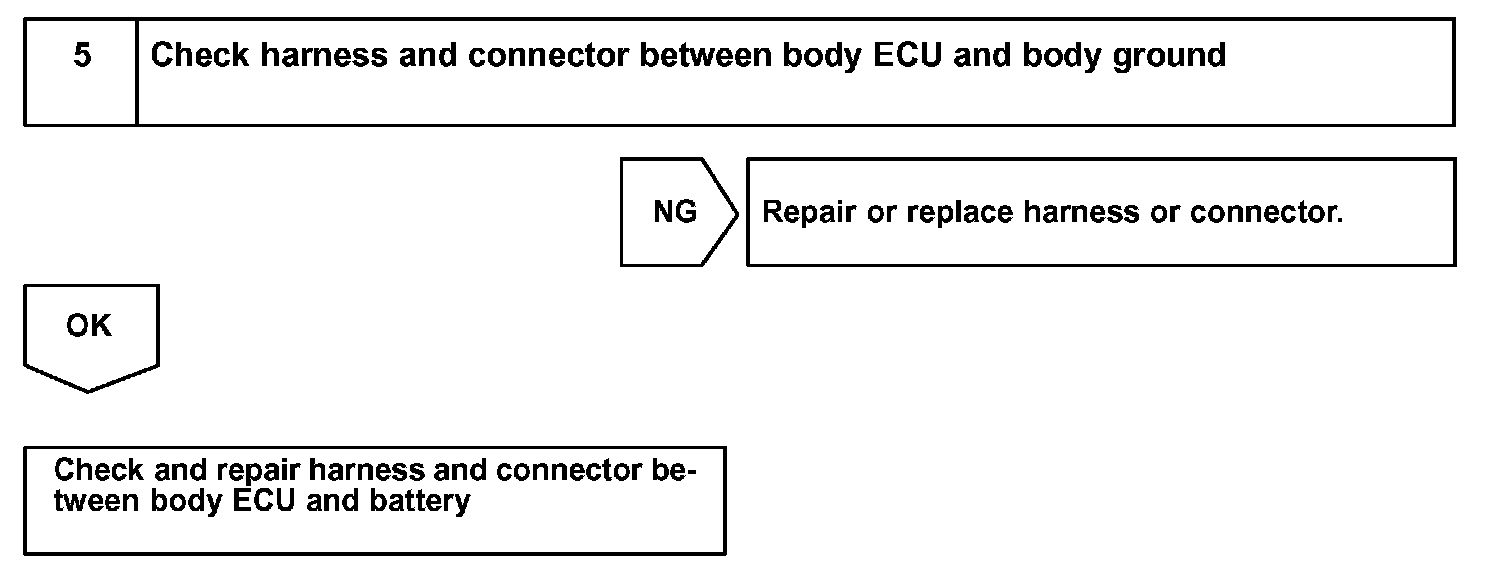

Step 5:

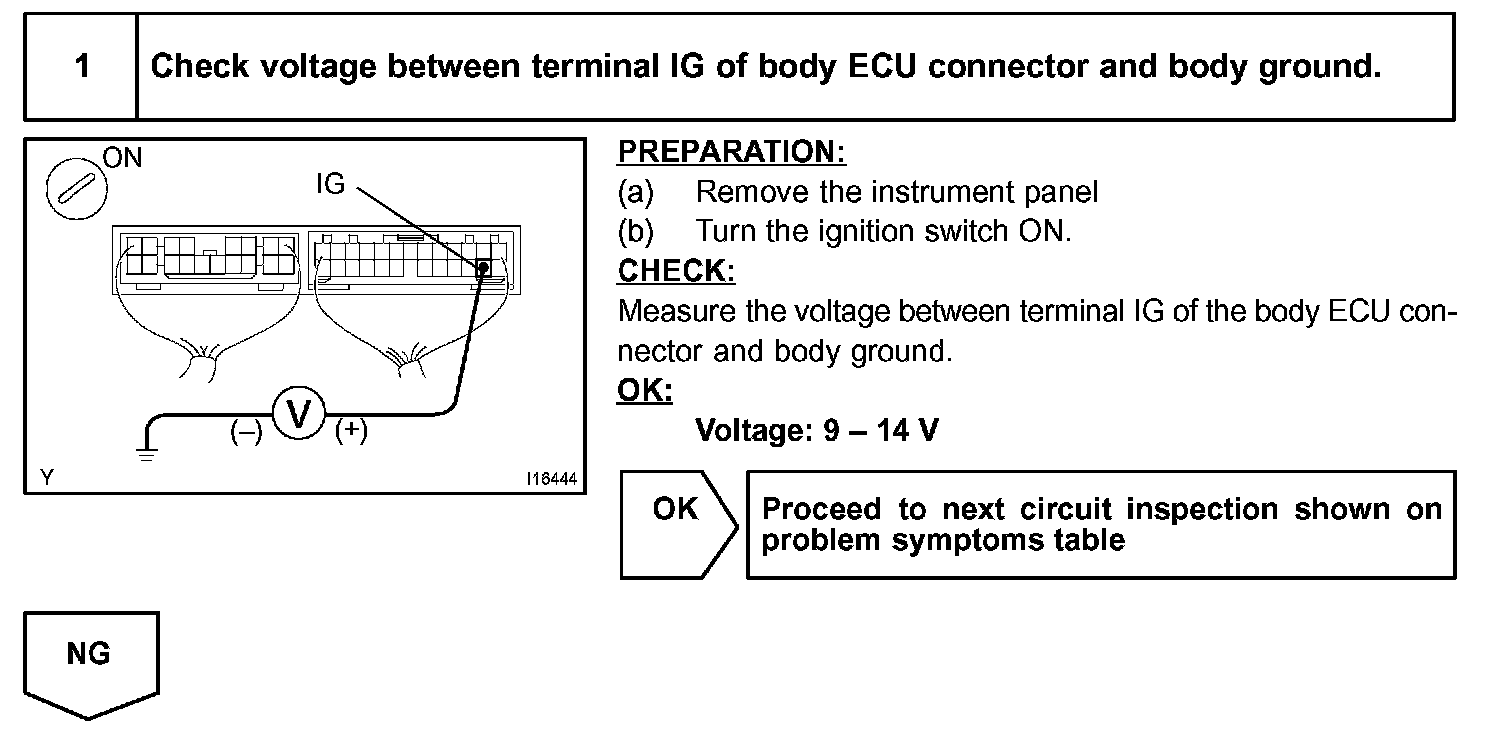

INSPECTION PROCEDURE
