Power Source Circuit

POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION
This circuit provides power to operate the body ECU.

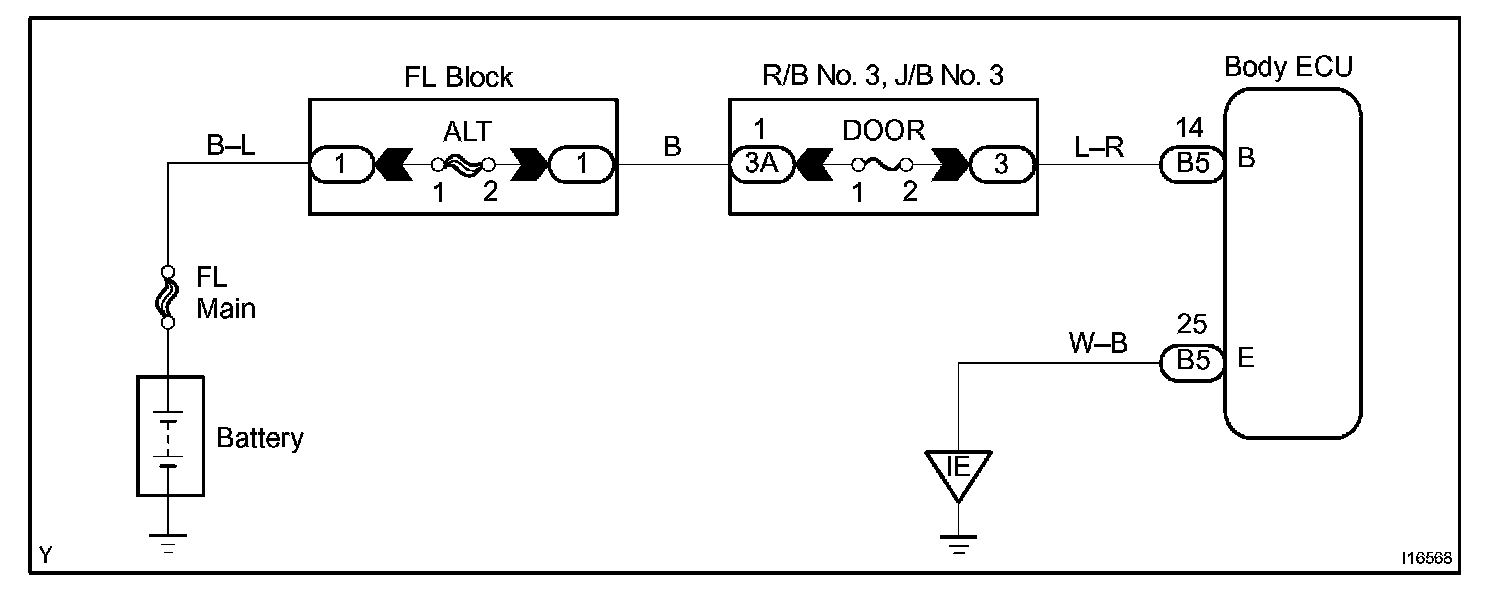

Wiring Diagram:

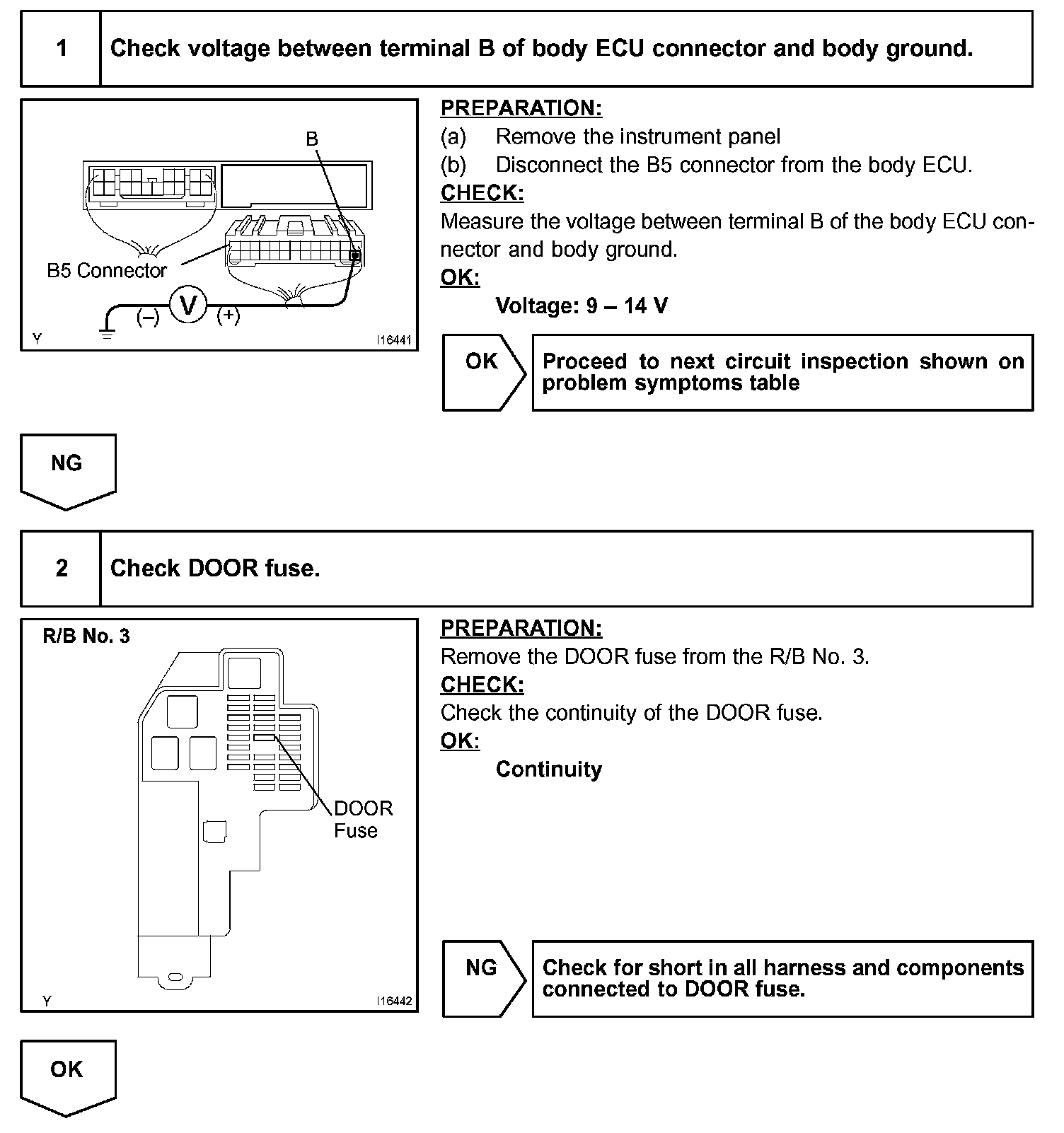

Step 1 - 2:

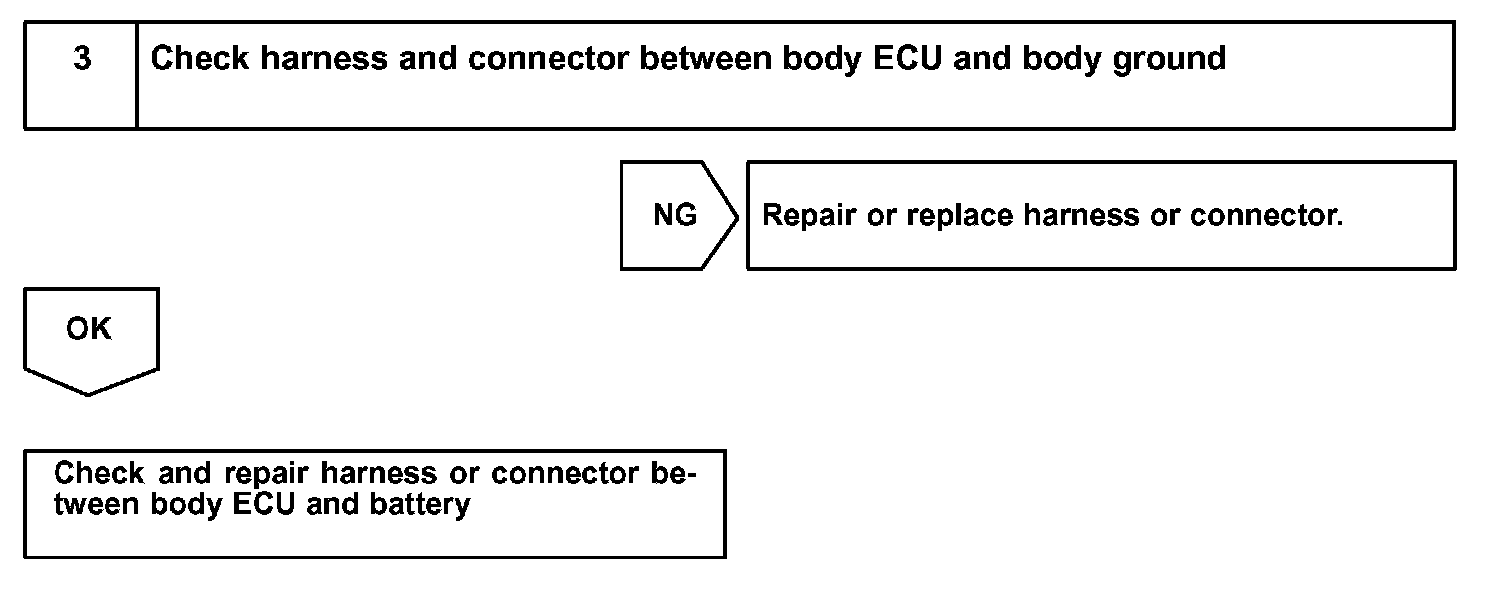

Step 3:




INSPECTION PROCEDURE
