Power Window Control Switch Circuit

POWER WINDOW CONTROL SWITCH CIRCUIT

CIRCUIT DESCRIPTION
This circuit detects the state of the power window control switch.

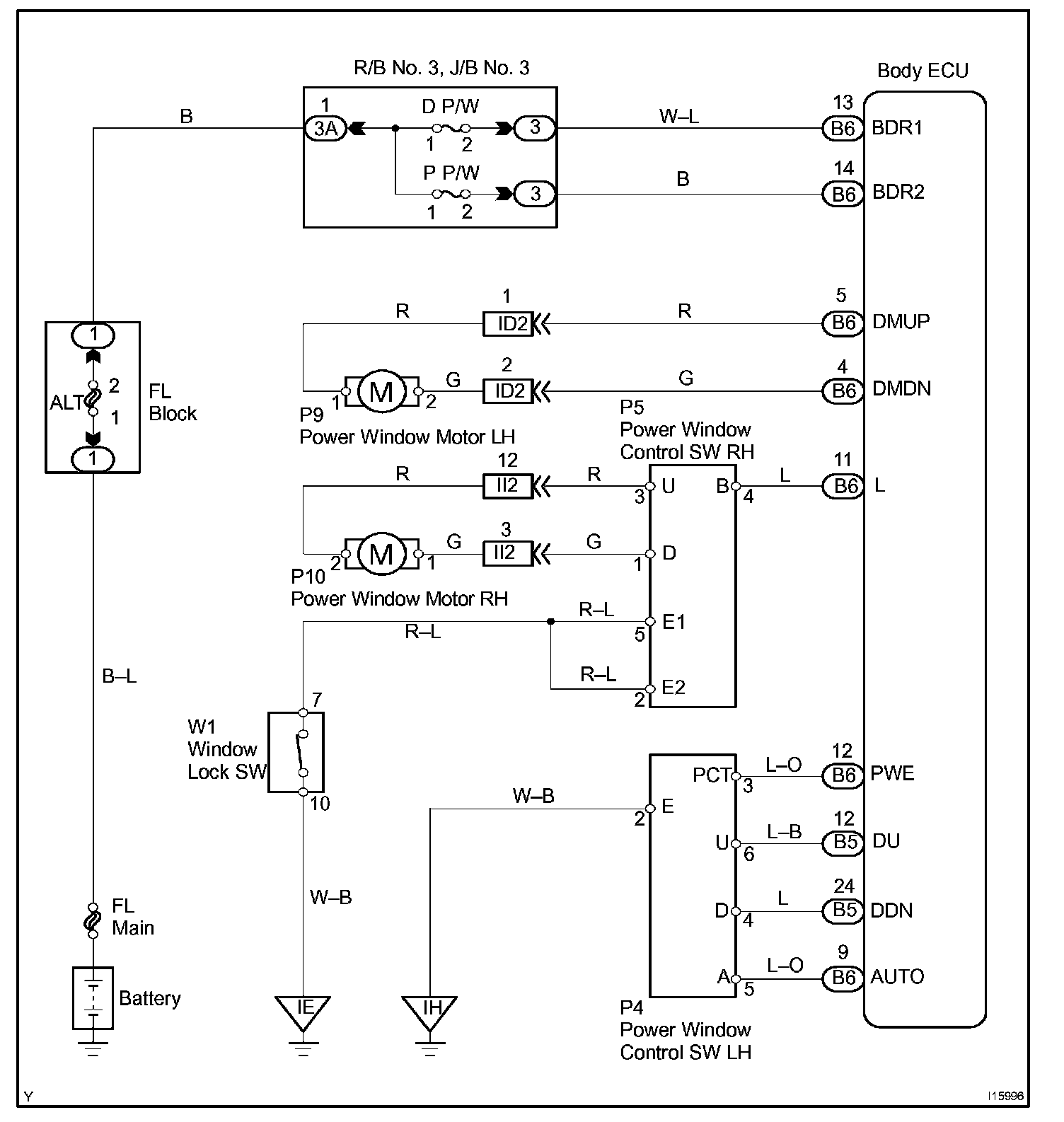

Wiring Diagram:






Step 1 - 2:

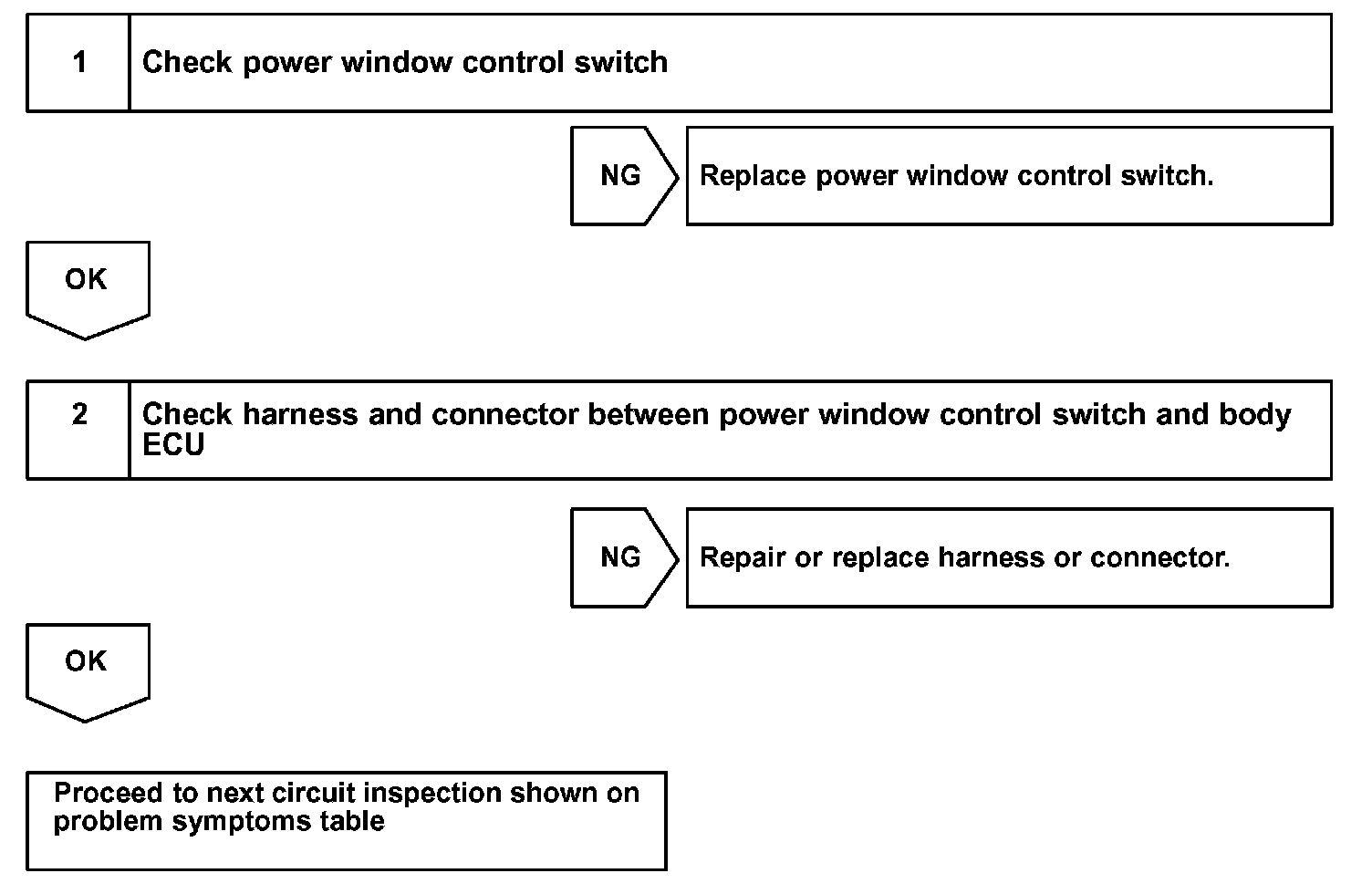

INSPECTION PROCEDURE
