Front Fender Apron (Assembly)

FRONT FENDER APRON (ASSEMBLY)

REPLACEMENT




1. REMOVE RADIATOR UPPER SIDE SUPPORT.
2. REMOVE FRONT FENDER APRON LOWER GUSSET.

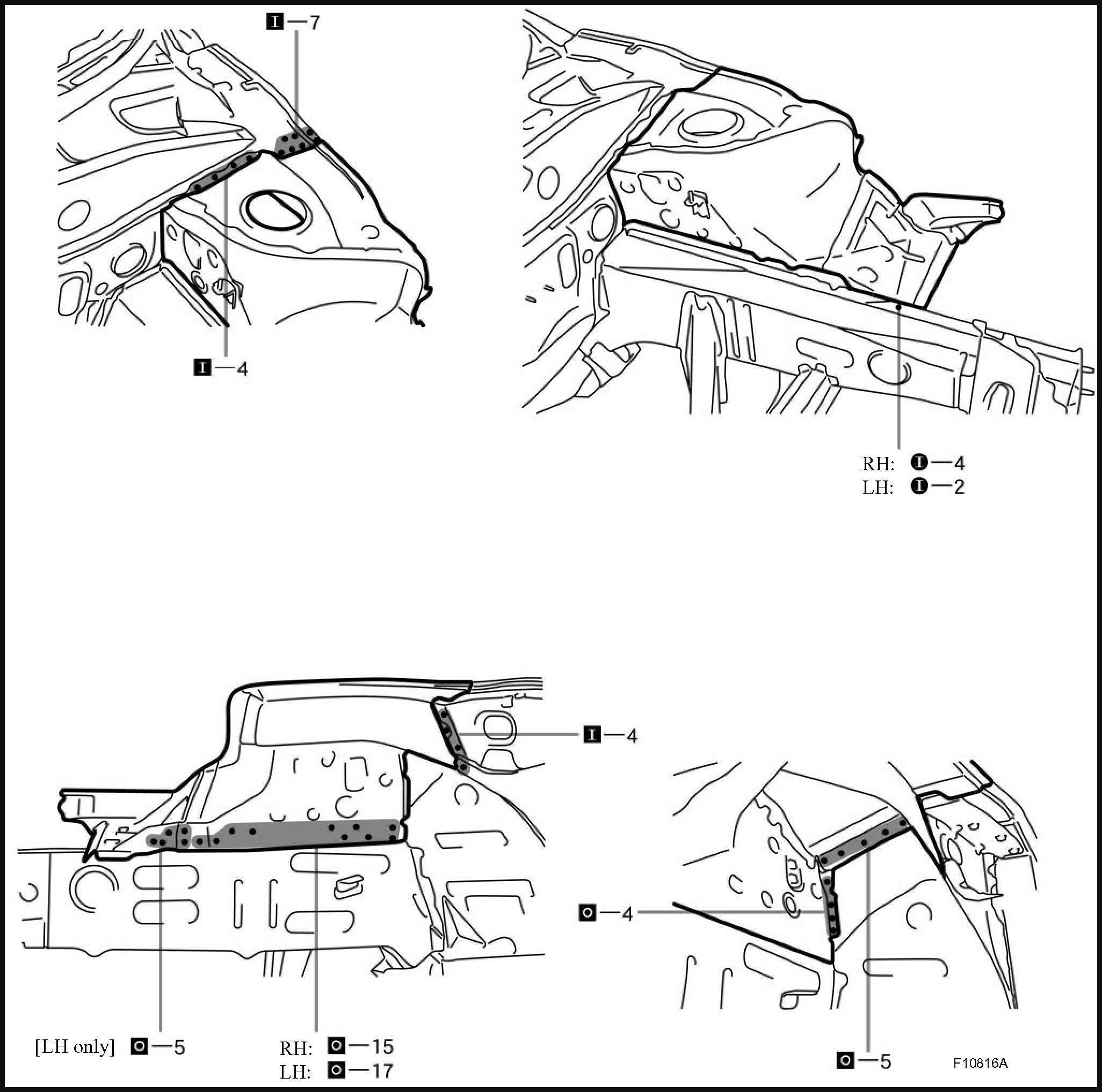

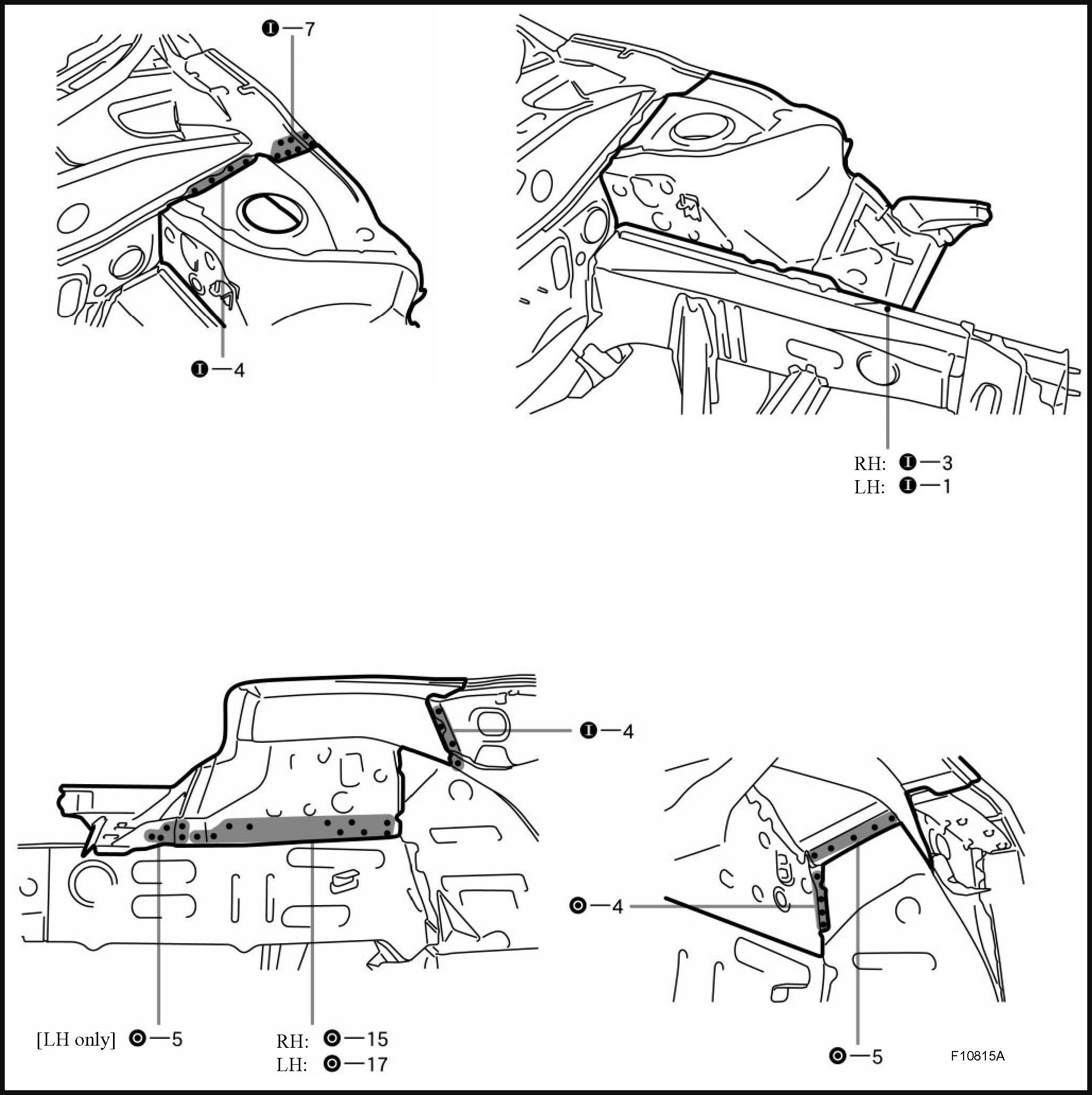

3. REMOVE FRONT FENDER APRON.




4. INSTALL FRONT FENDER APRON.

HINT: Inspect the fitting of the front fender and hood, etc. before welding, since this affects the appearance of the finish.

a. Temporarily install the new parts and measure each part in accordance with the body dimension diagram.

HINT: Make sure each measurement is correct, as this parts affects the front wheel alignment.

5. MEASURING THE FRONT LUGGAGE COMPARTMENT DIMENSIONS.
6. MEASURING THE UNDER BODY DIMENSIONS.
7. INSTALL FRONT FENDER APRON LOWER GUSSET.
8. INSTALL RADIATOR UPPER SIDE SUPPORT.
9. APPLYING SEALER TO THE FRONT LUGGAGE COMPARTMENT.
10. APPLYING UNDER COATING.
11. APPLYING ANTI-RUST AGENT.
a. After applying the top coat layer, apply the anti-rust agent to the inside of the necked section structural weld spots.
