Front Fender Front Apron (Assembly)

FRONT FENDER FRONT APRON (ASSEMBLY)

REPLACEMENT

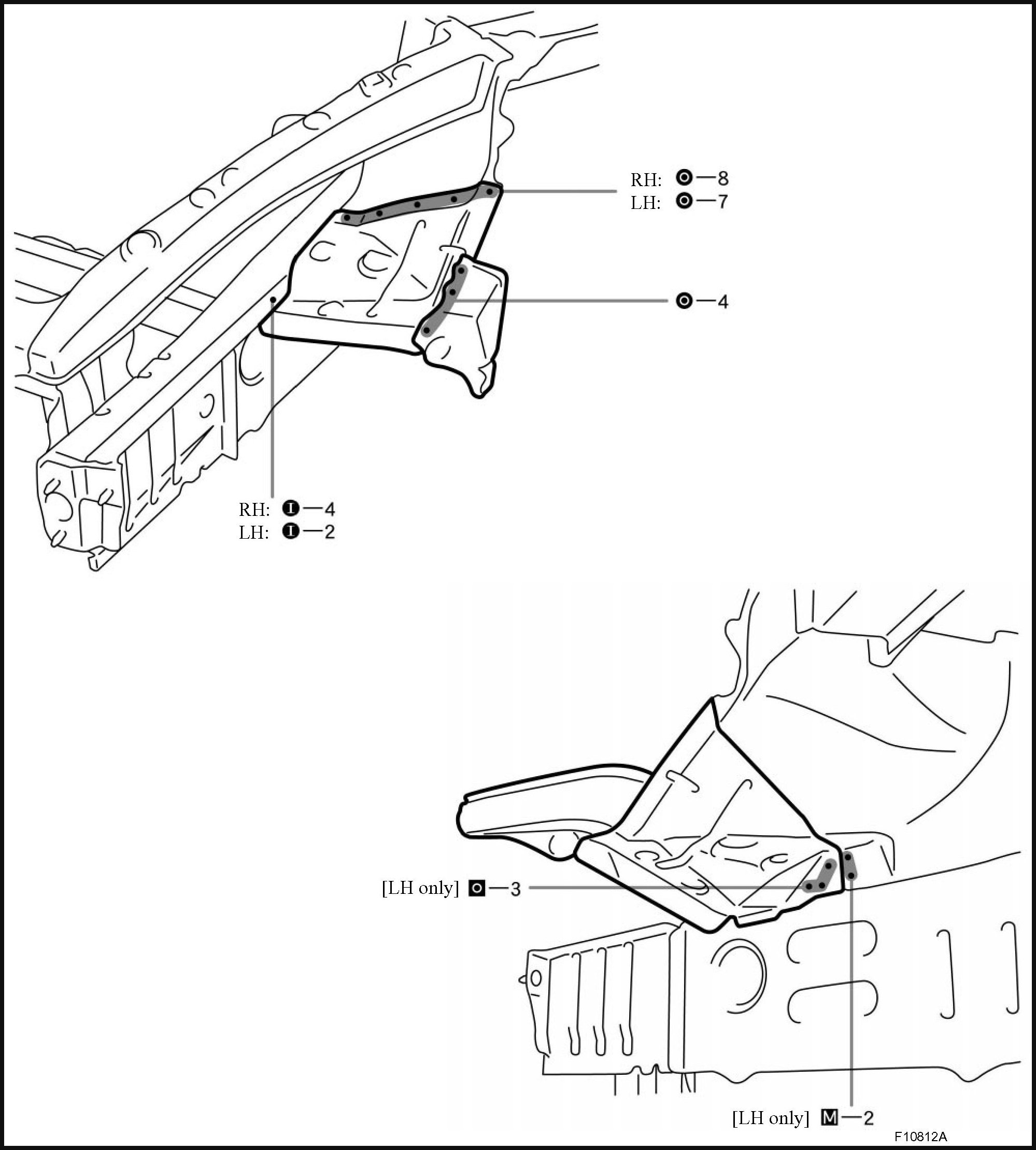

1. REMOVE FRONT FENDER FRONT APRON
a. Replace the front fender mounting bracket at the same time.

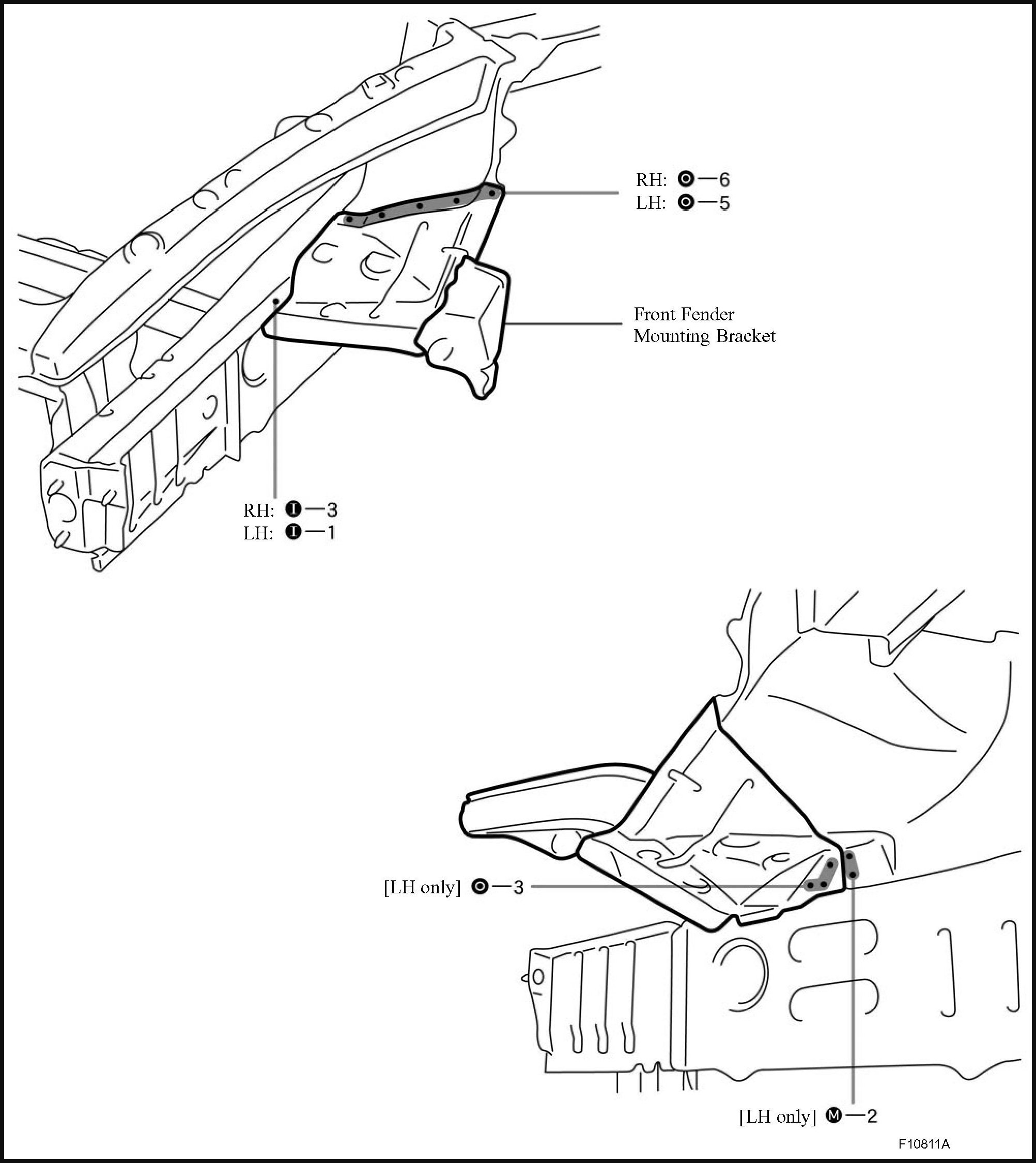

2. INSTALL FRONT FENDER FRONT APRON
a. Temporarily install the new parts and measure each part in accordance with the body dimension diagram.

3. MEASURING THE FRONT LUGGAGE COMPARTMENT DIMENSIONS.
4. APPLYING SEALER TO THE FRONT LUGGAGE COMPARTMENT.
5. APPLYING UNDER COATING.
6. APPLYING ANTI-RUST AGENT
a. After applying the top coat layer, apply the anti-rust agent to the inside of the necked section structural weld spots.
