Without Scan Tool

Clear the DTC

When not using the hand-held tester:
Clear the DTC

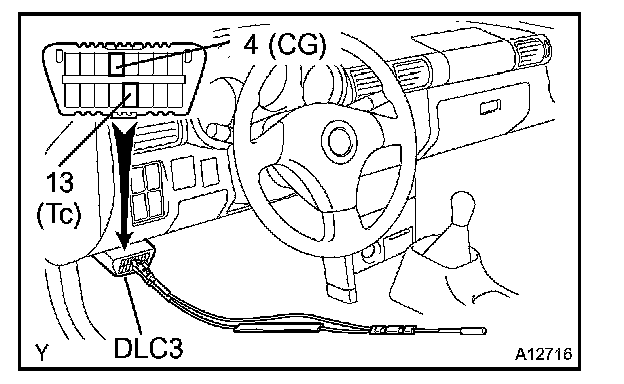

1. Using SST, connect terminals Tc and CG of the DLC3.
SST 09843-18040

2. Turn the ignition switch ON.

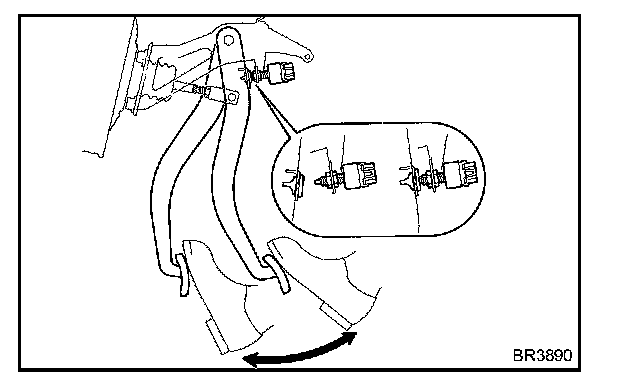

3. Clear the DTC stored in the ECU by depressing the brake pedal 8 or more times within 5 seconds.
4. Check that the warning light shows the normal code.
5. Remove the SST from the terminals of the DLC3.
SST 09843-18040
