MR2 Spyder L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Disc Brake System
>>
Diagrams
>>
Front
Front

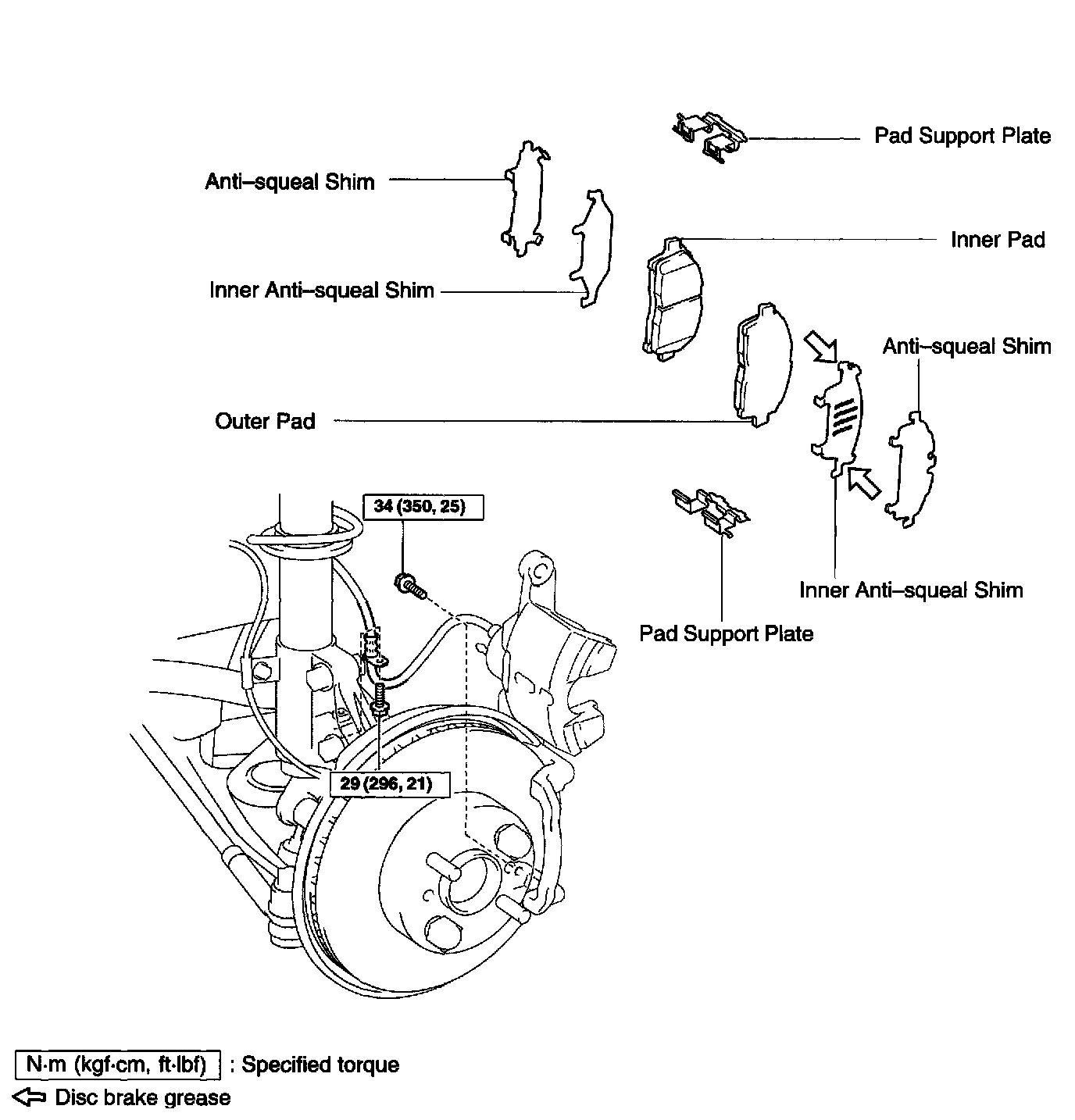

FRONT
BRAKE PAD
REPLACEMENT W/ RELATED COMPONENTS

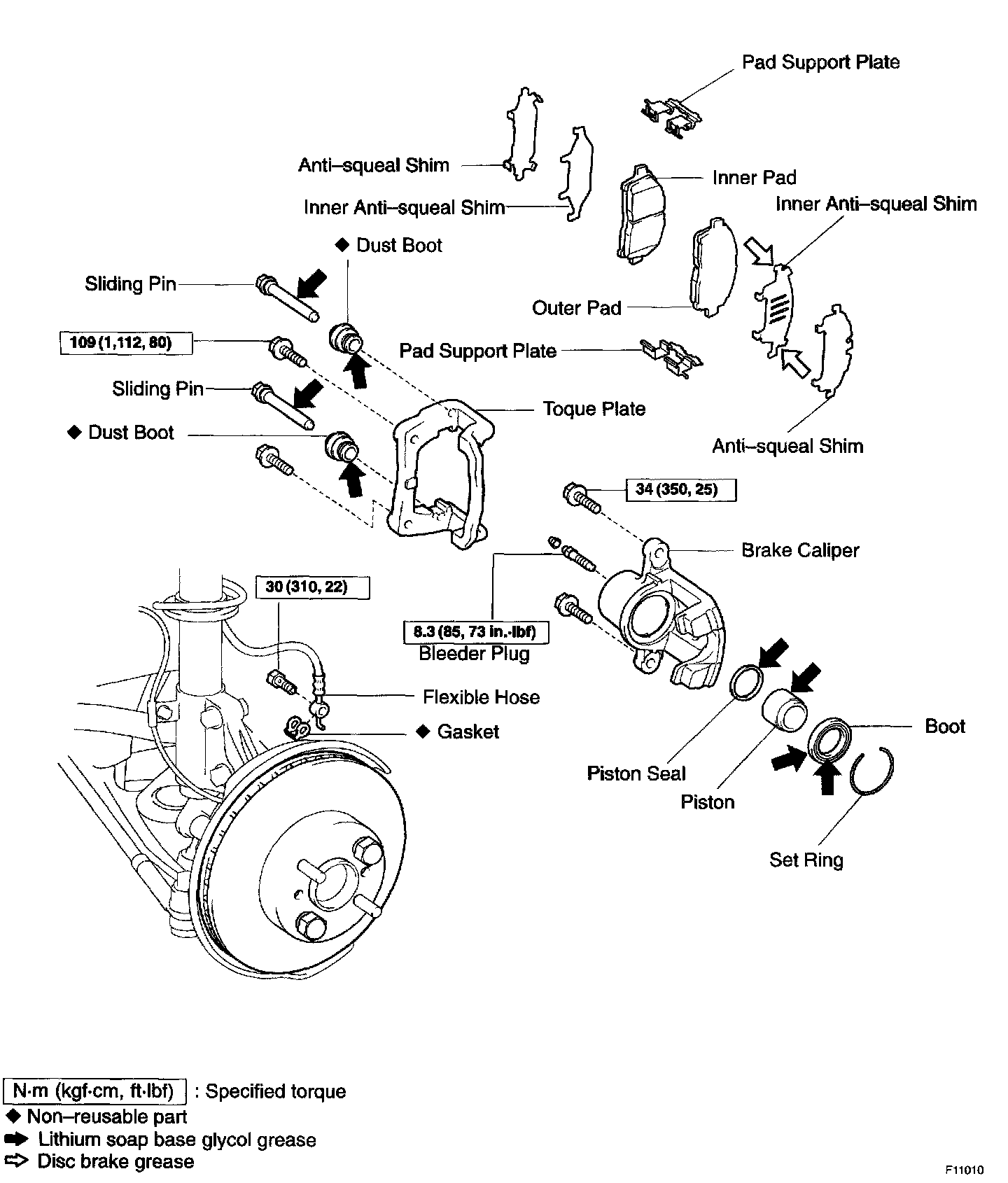

FRONT
BRAKE CALIPER
REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
