Speed Sensor, Rear

REPLACEMENT
REPLACE REAR SPEED SENSOR

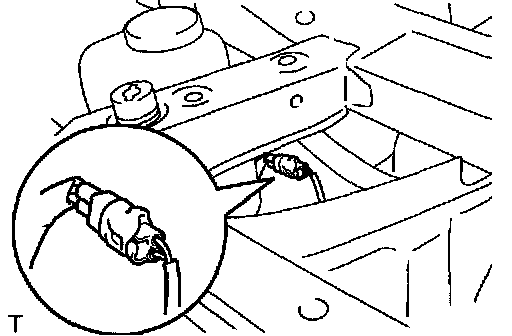

a. Disconnect the rear speed sensor connector.
b. Remove the rear speed sensor.
1) Remove the rear wheel.
2) Remove the grommet and clip.





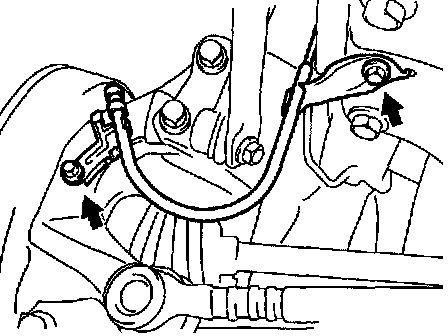

3) Remove the 2 clamp bolts.

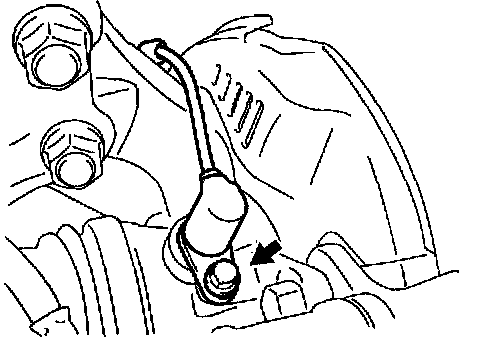

4) Remove the bolt and speed sensor.

NOTICE: At the time of installation, please refer to the following items.
^ There are no foreign objects on the sensor or the part of the knuckle to which the sensor is to be installed.
^ The sensor is installed flat against the knuckle when the bolt is tighten.





c. Install a new speed sensor.
1) Install the speed sensor with the bolt.
Torque: 8.0 Nm (82 kgf-cm, 71 inch lbs.)

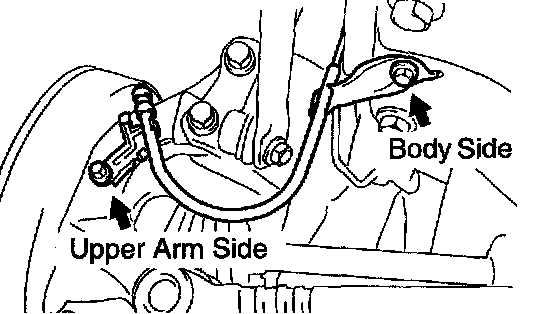

2) Install the 2 clamp bolts.
Torque: 19 Nm (195 kgf-cm, 14 ft. lbs.) for body side
5.0 Nm (51 kgf-cm, 44 inch lbs.) for upper arm side
3) Install the grommet and clip.
4) Install the rear wheel.
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
d. Connect the speed sensor connector.
e. Check the speed sensor signal.
