Home >> Toyota >> 2004 >> MR2 Spyder L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By Connector Number >> S12 - Z2

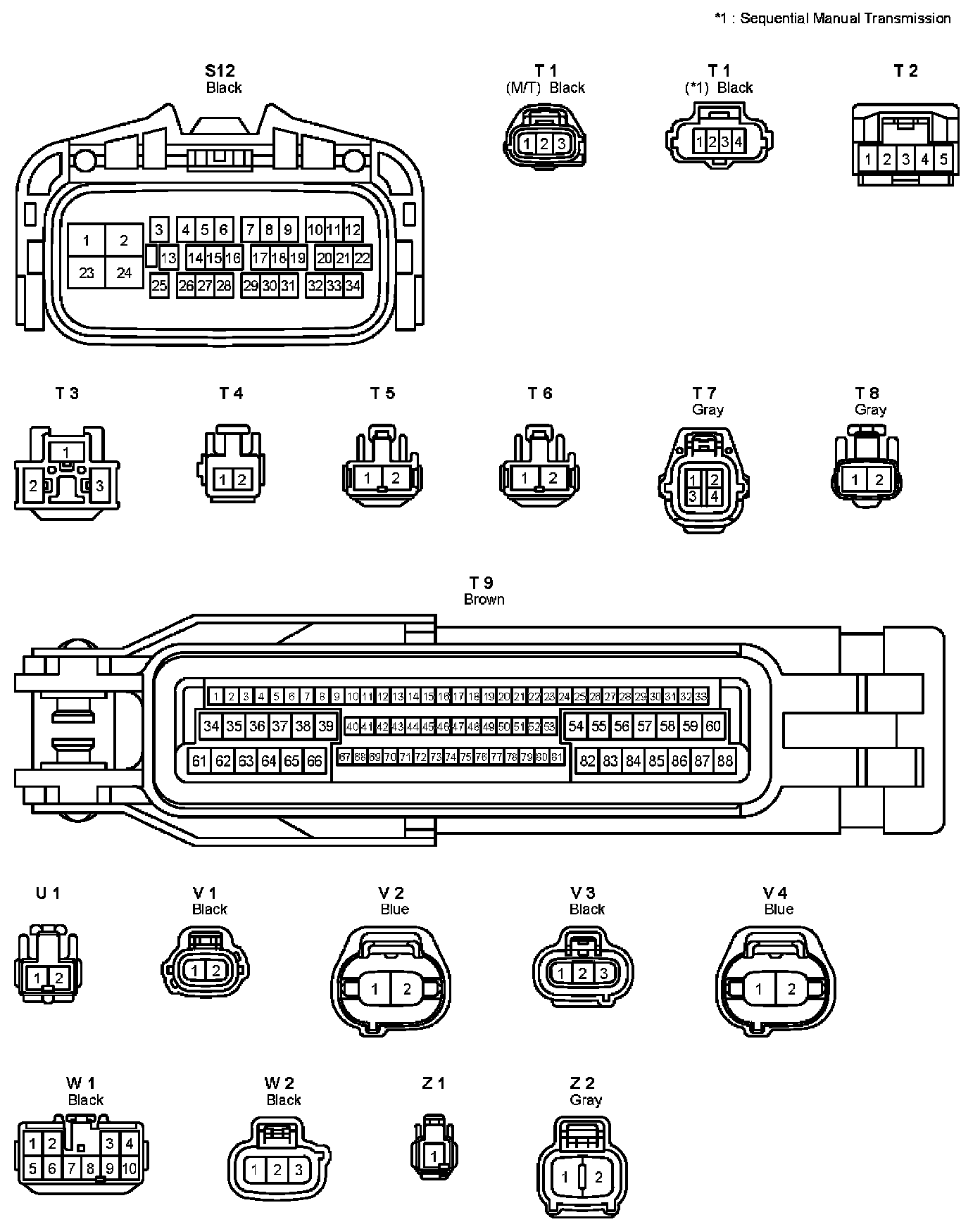

S12 - Z2

S12 - Z2:
