Instrument Panel, Gauges and Warning Indicators
Instrument Panel, Gauges and Warning Indicators

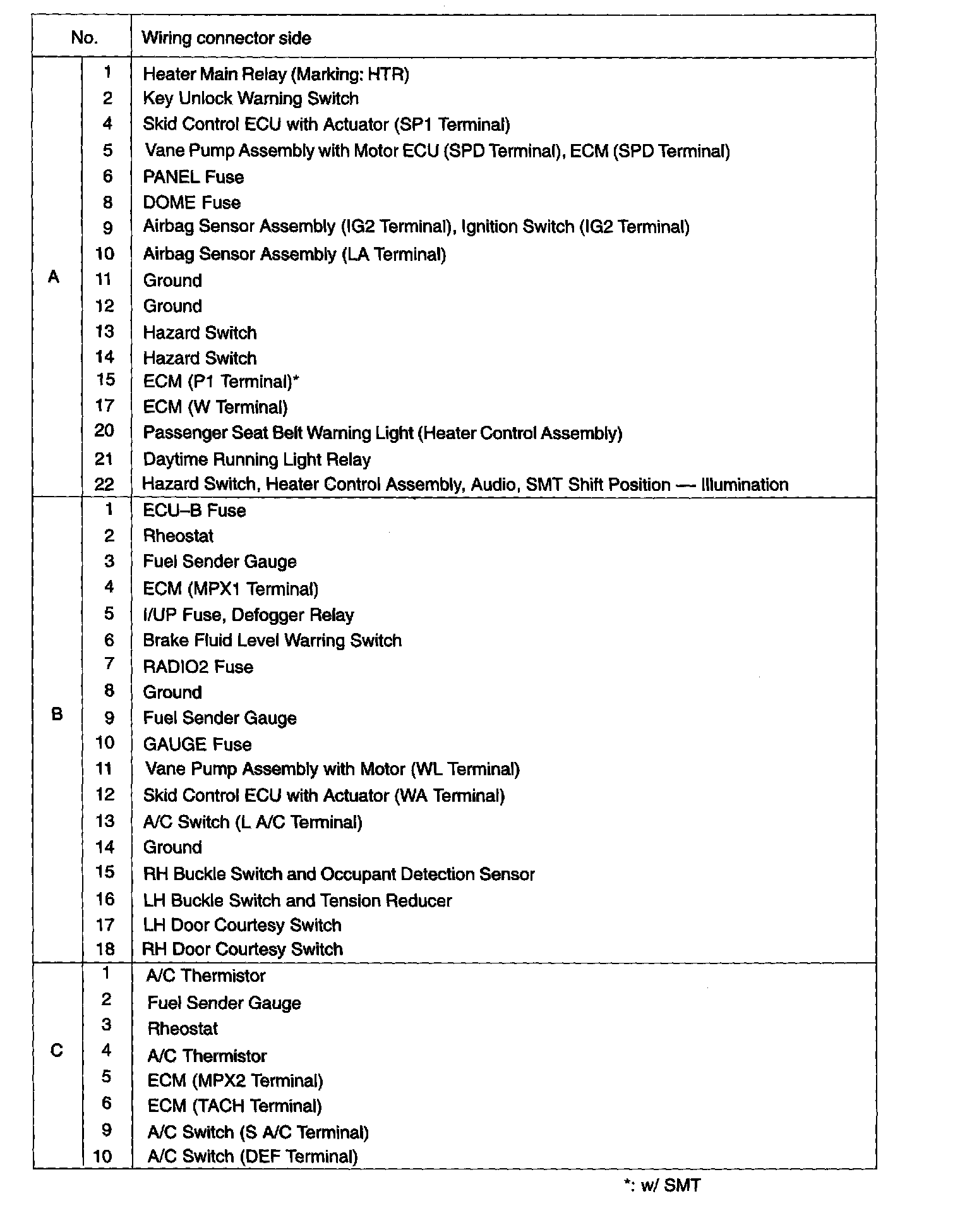

Combination Meter Part 1:

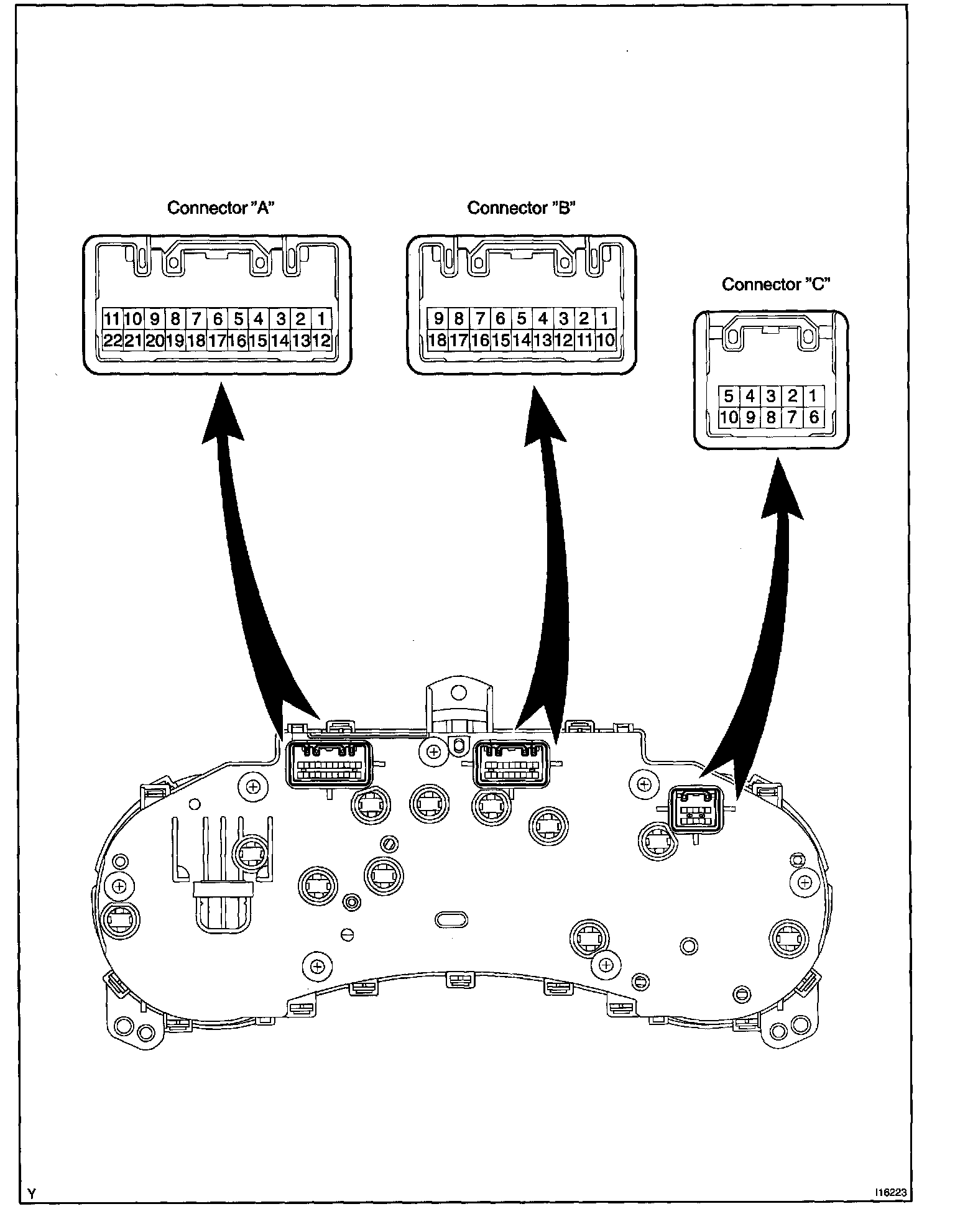

Combination Meter Part 2:

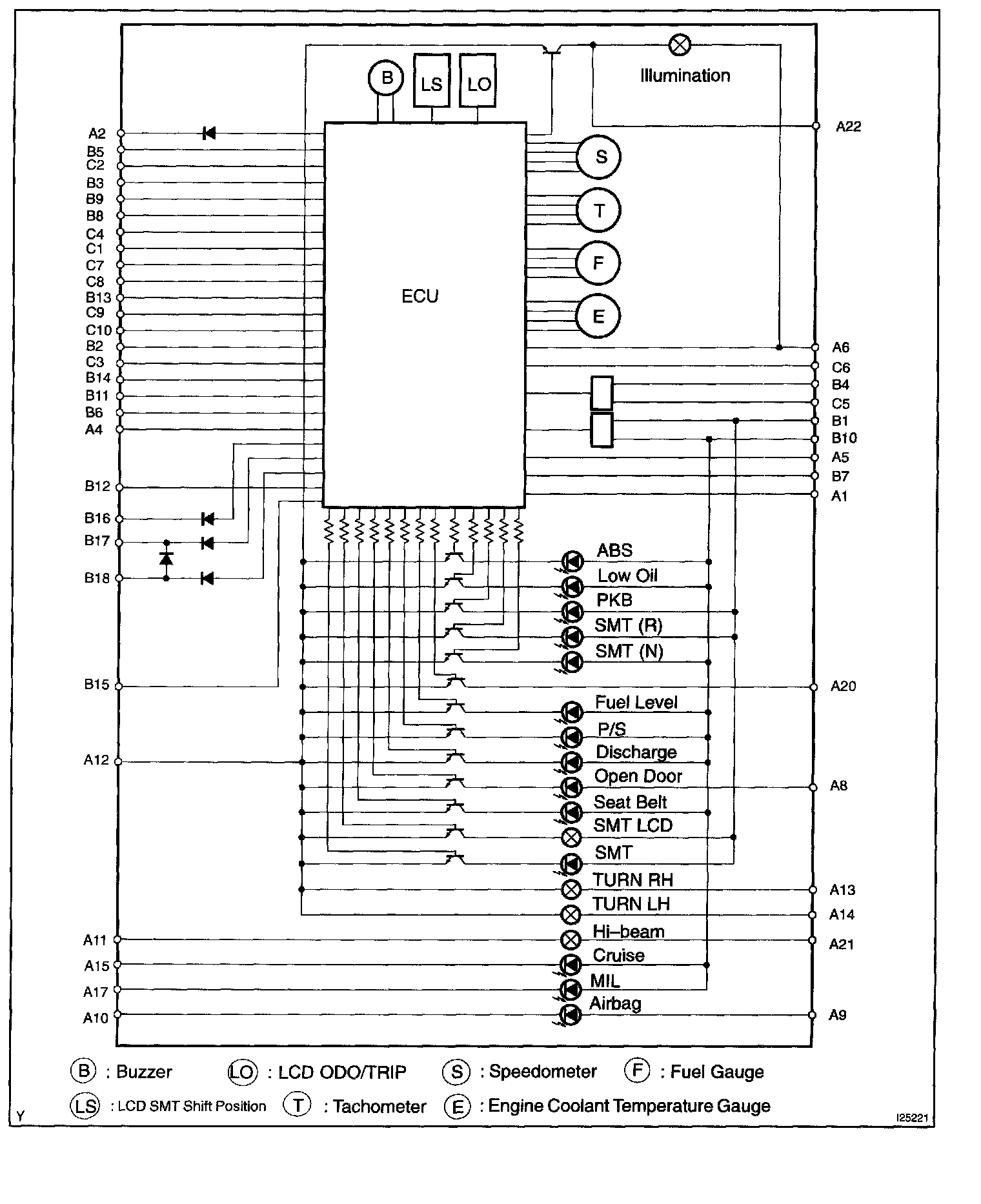

Combination Meter Part 3:
