Toyota
>>
2004
>>
MR2 Spyder L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>

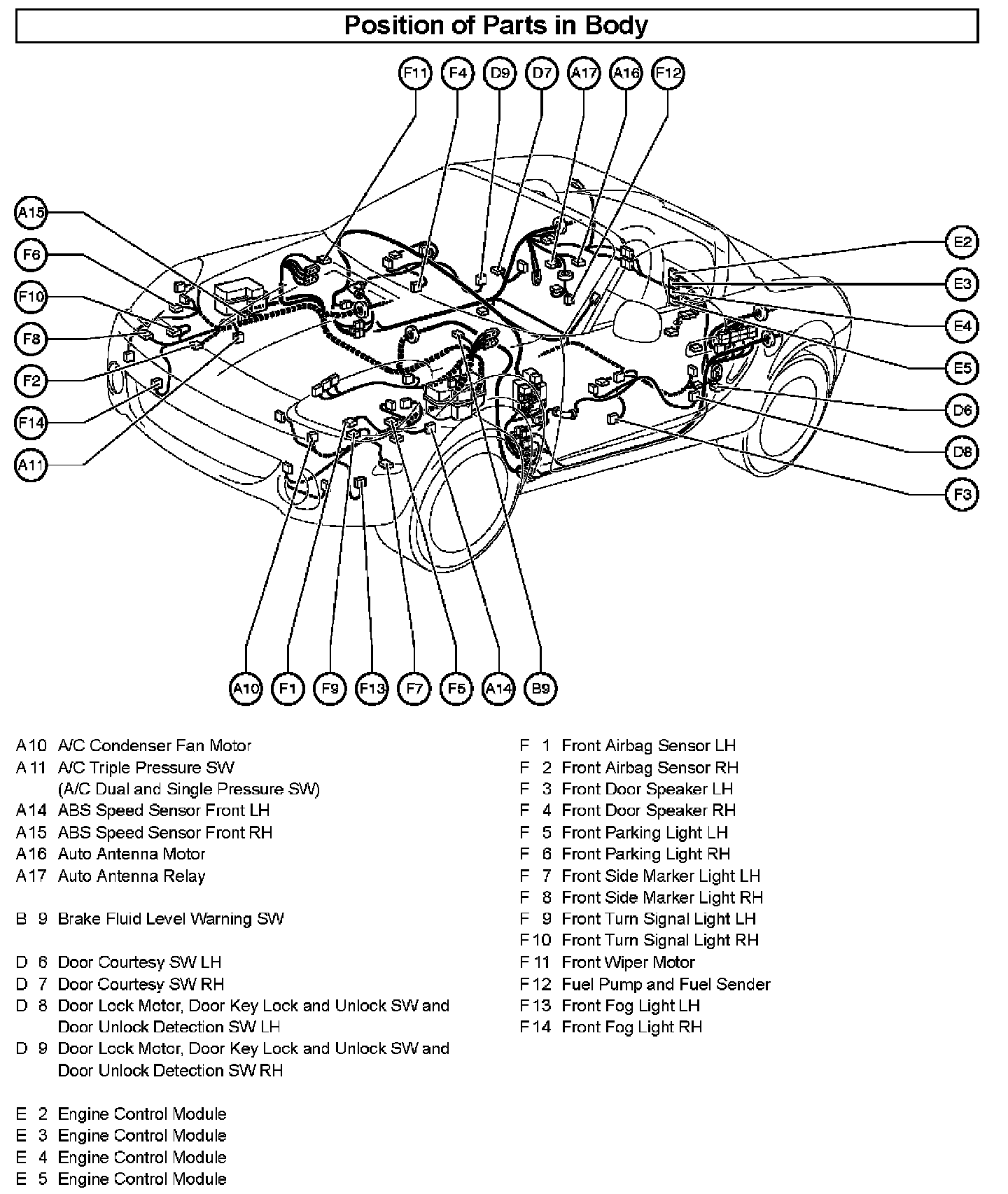

Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Door Switch
Door Switch
A/C - Fr:
