Automatically Shifted Manual Transmission/Transaxle
>>
System Diagram
>>
Shift and Select Lever Shaft
Shift and Select Lever Shaft

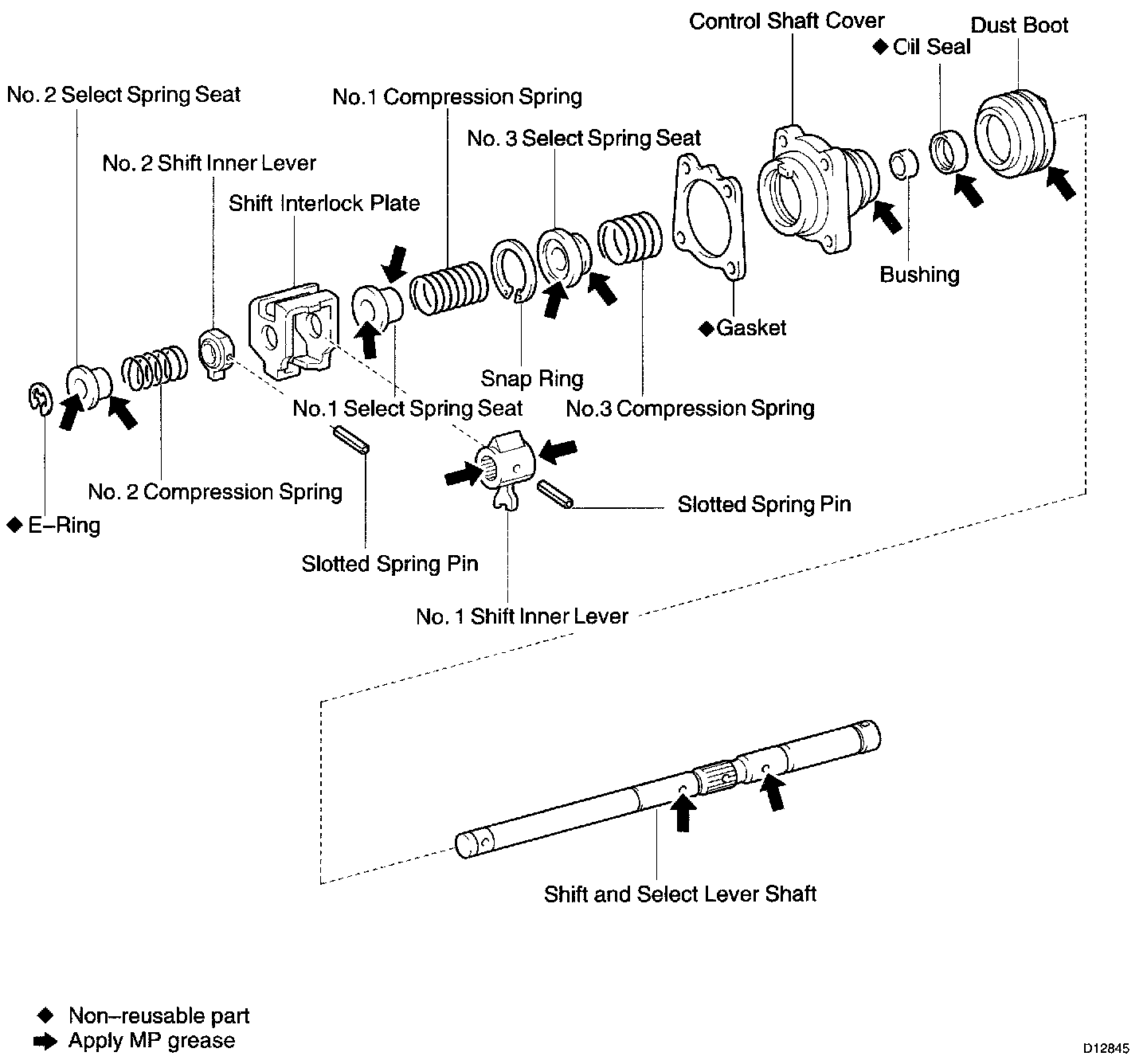

SHIFT AND SELECT LEVER SHAFT
