Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
MR2 Spyder L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Blower Motor
Blower Motor

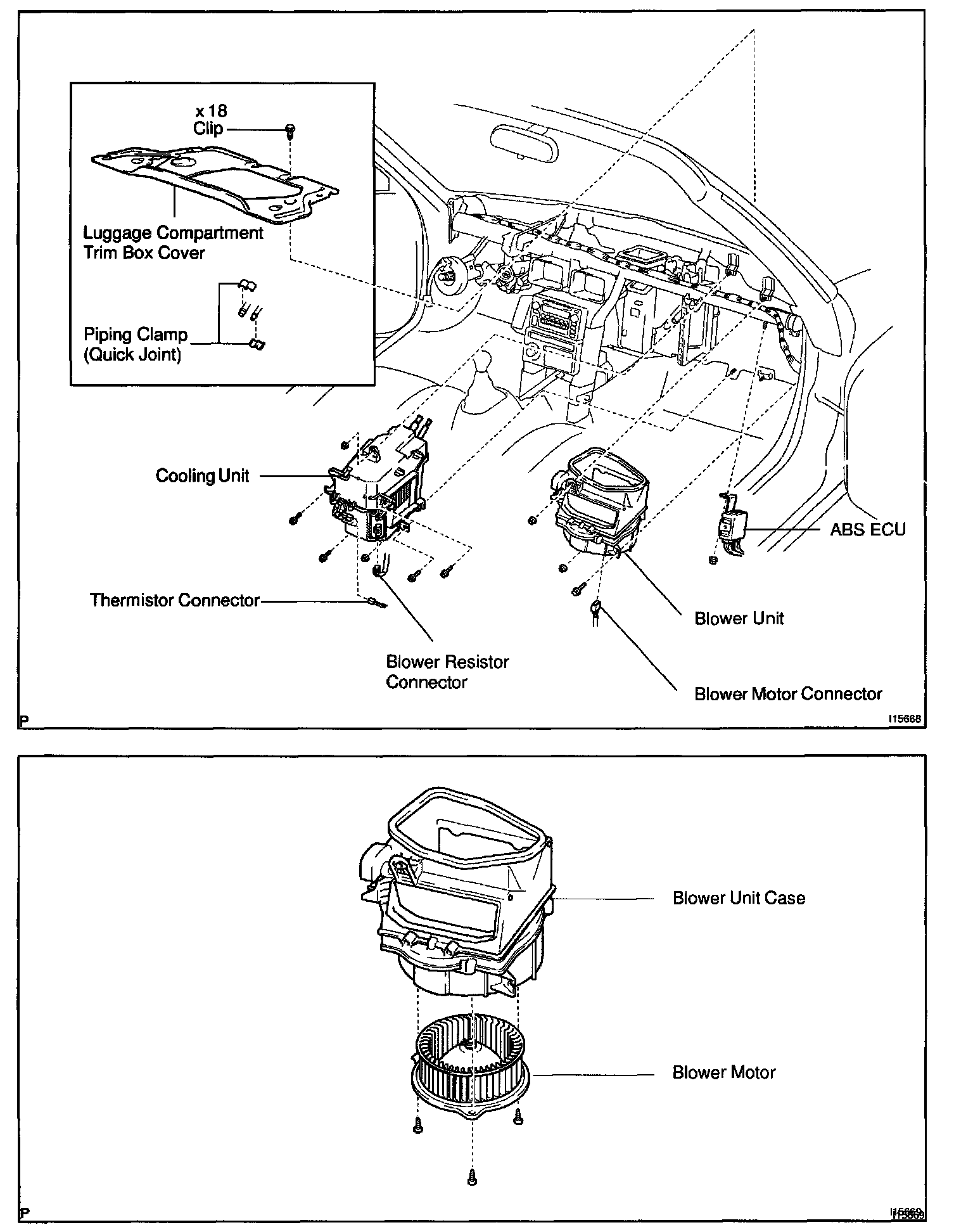

Blower Unit (Part 1):
Blower Unit (Part 2):
