Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
MR2 Spyder L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Clutch, M/T
>>
Clutch Master Cylinder
Clutch Master Cylinder

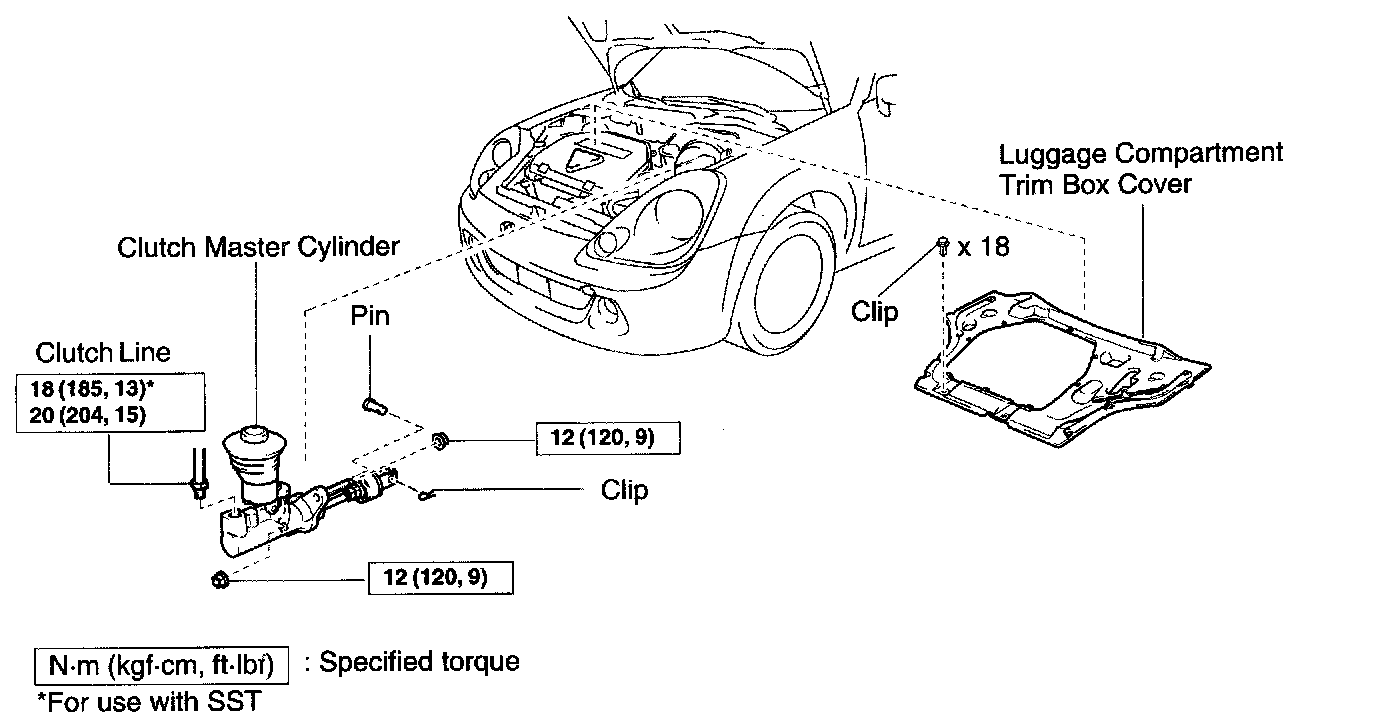

Part 1 Of 2:

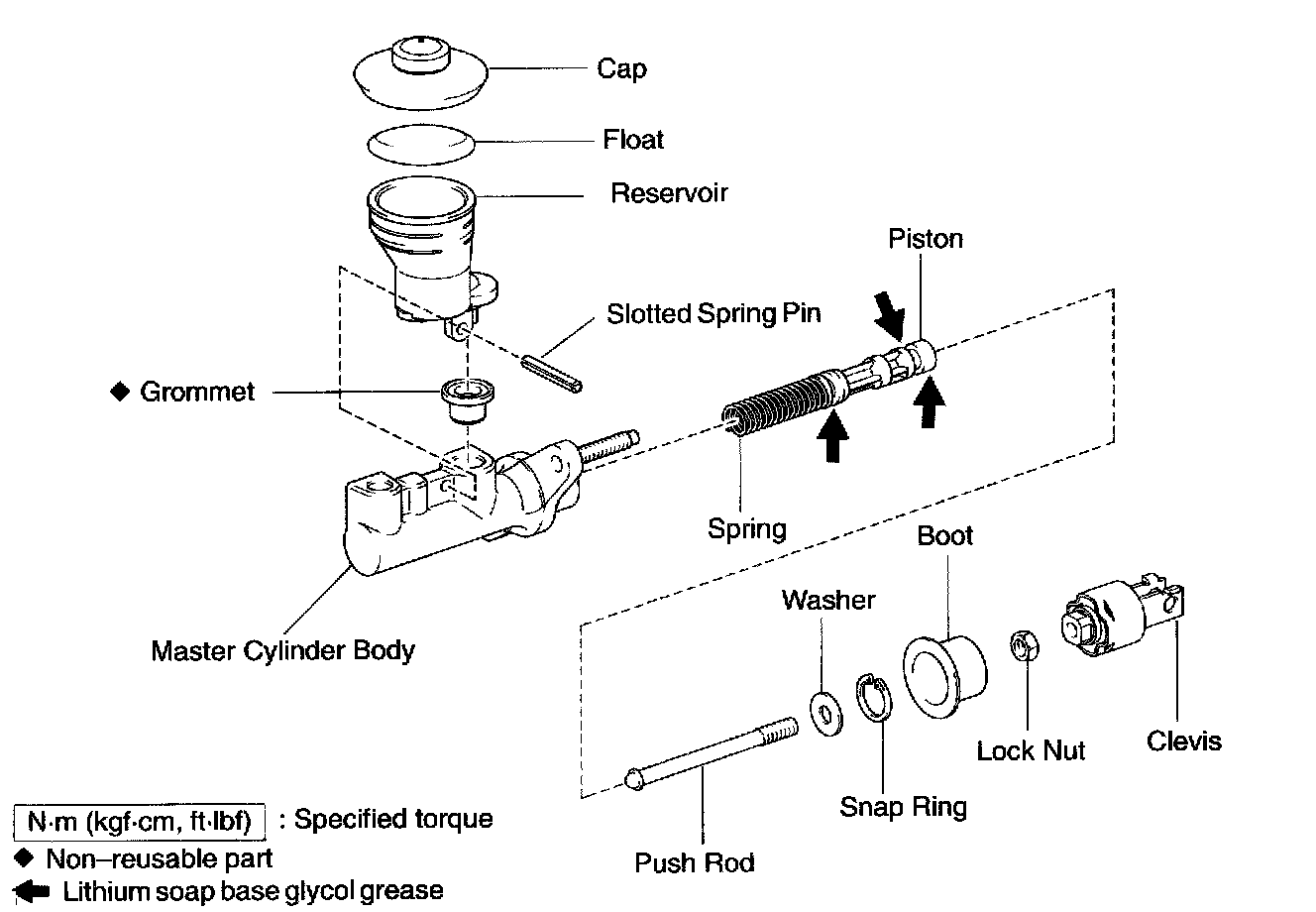

Part 2 Of 2:
CLUTCH MASTER CYLINDER
