Compressor HVAC
>>
System Diagram
System Diagram

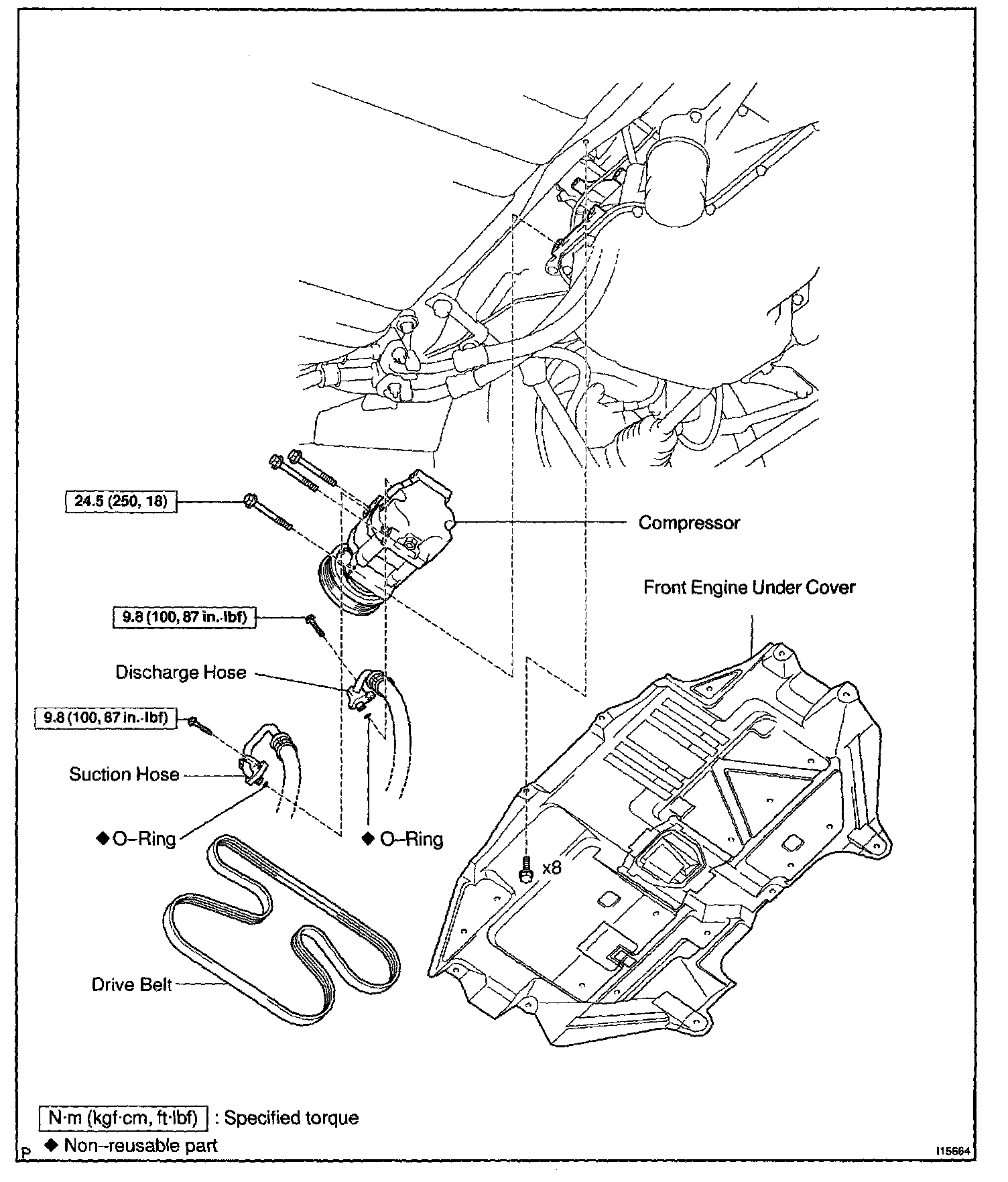

Compressor And Magnetic Clutch:

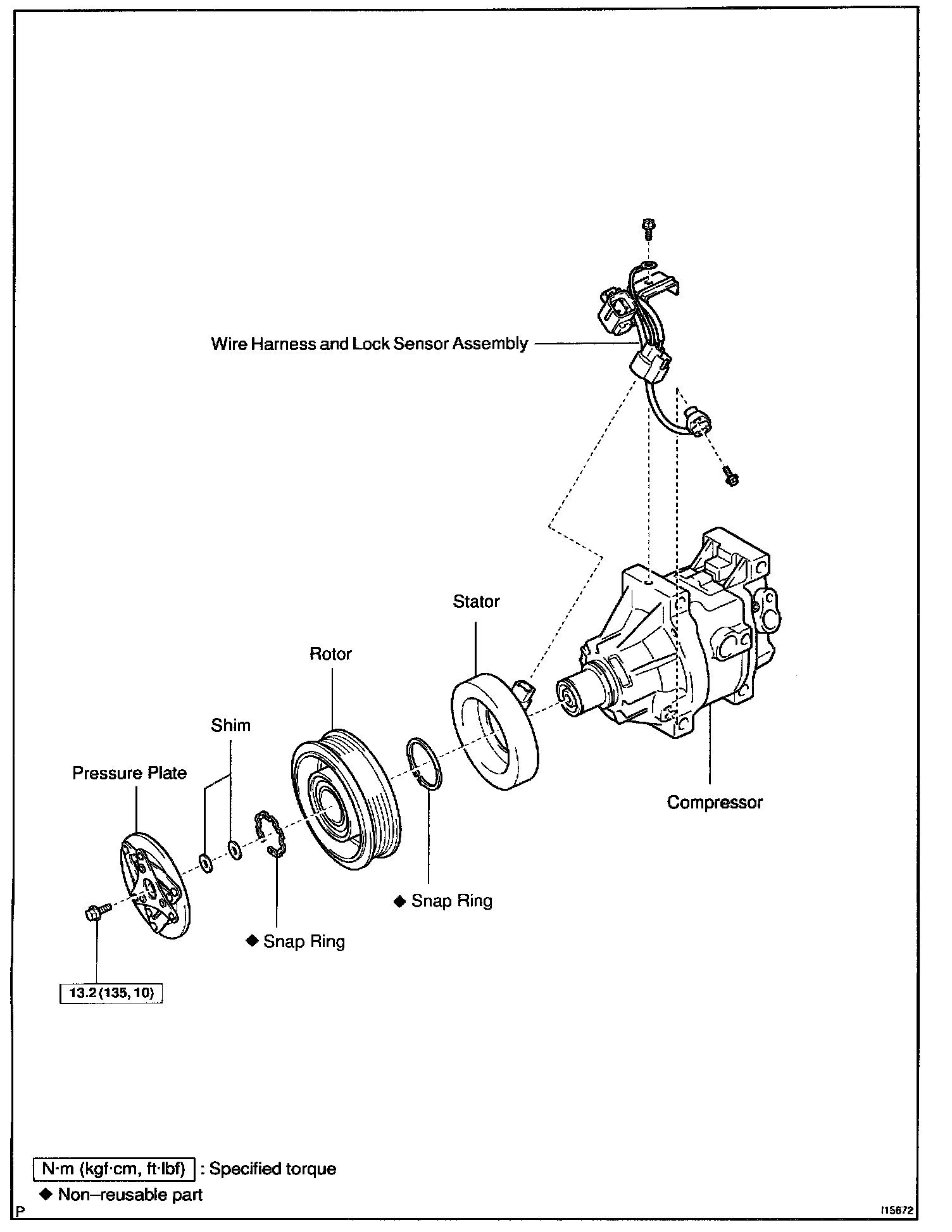

Compressor And Magnetic Clutch:
