Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
MR2 Spyder L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Condenser HVAC
Condenser HVAC

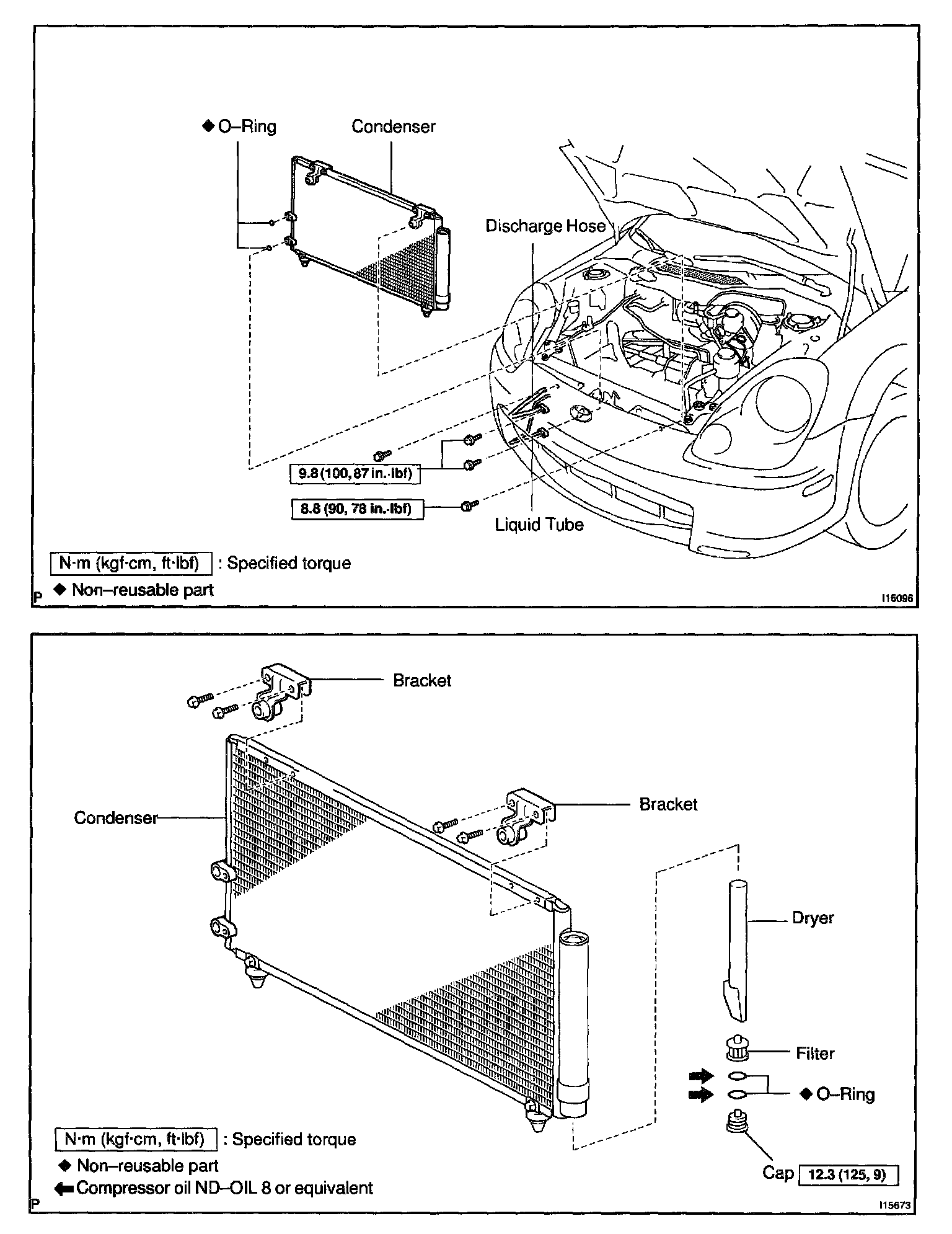

Condenser (Part 1):
Condenser (Part 2):
