Hydraulic Control Assembly - Antilock Brakes
Hydraulic Control Assembly - Antilock Brakes

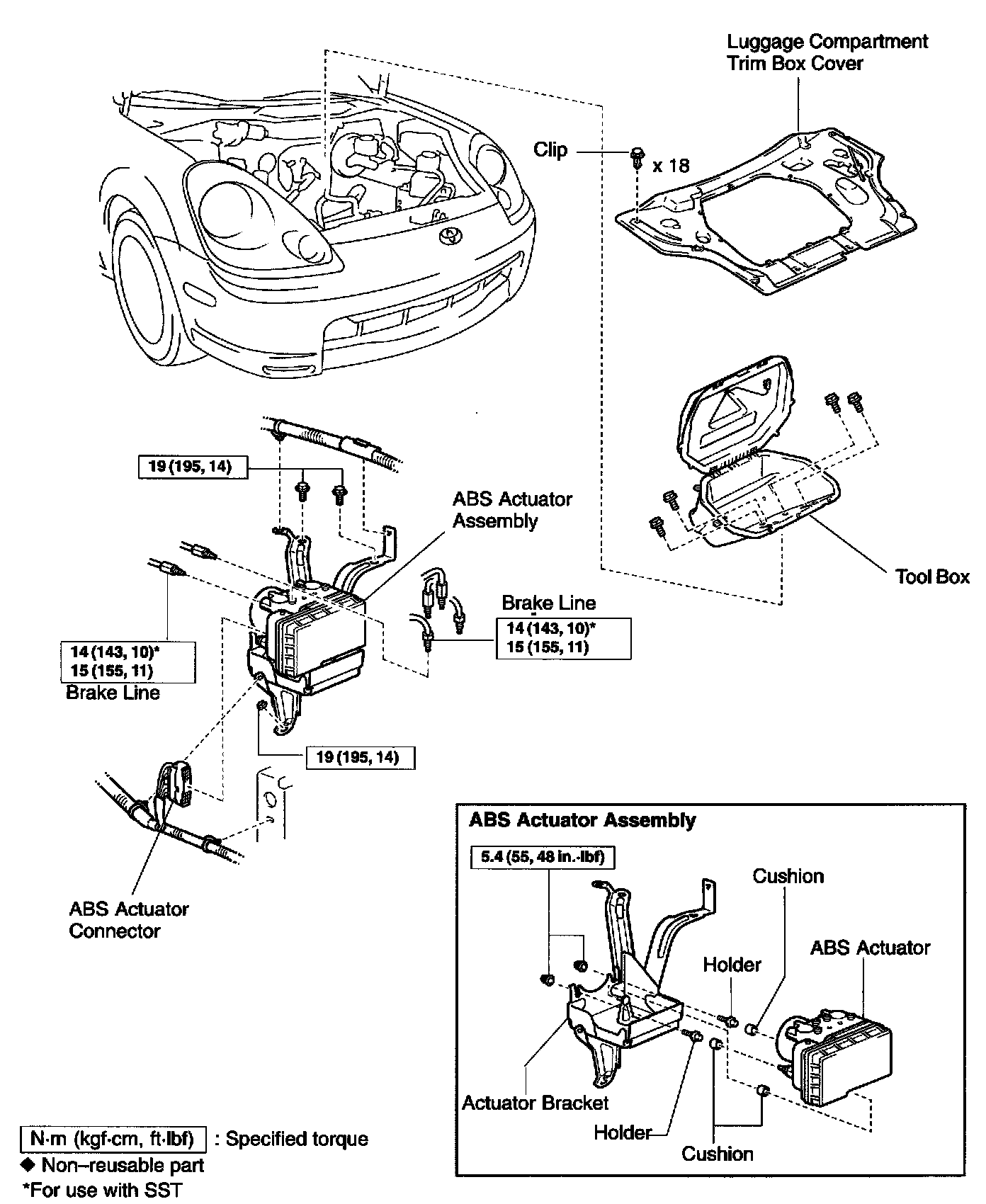

ABS ACTUATOR REPLACEMENT W/ RELATED COMPONENTS
