Home >> Toyota >> 2004 >> MR2 Spyder L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Manual Transmission/Transaxle >> Shift Cable, M/T

Shift Cable, M/T

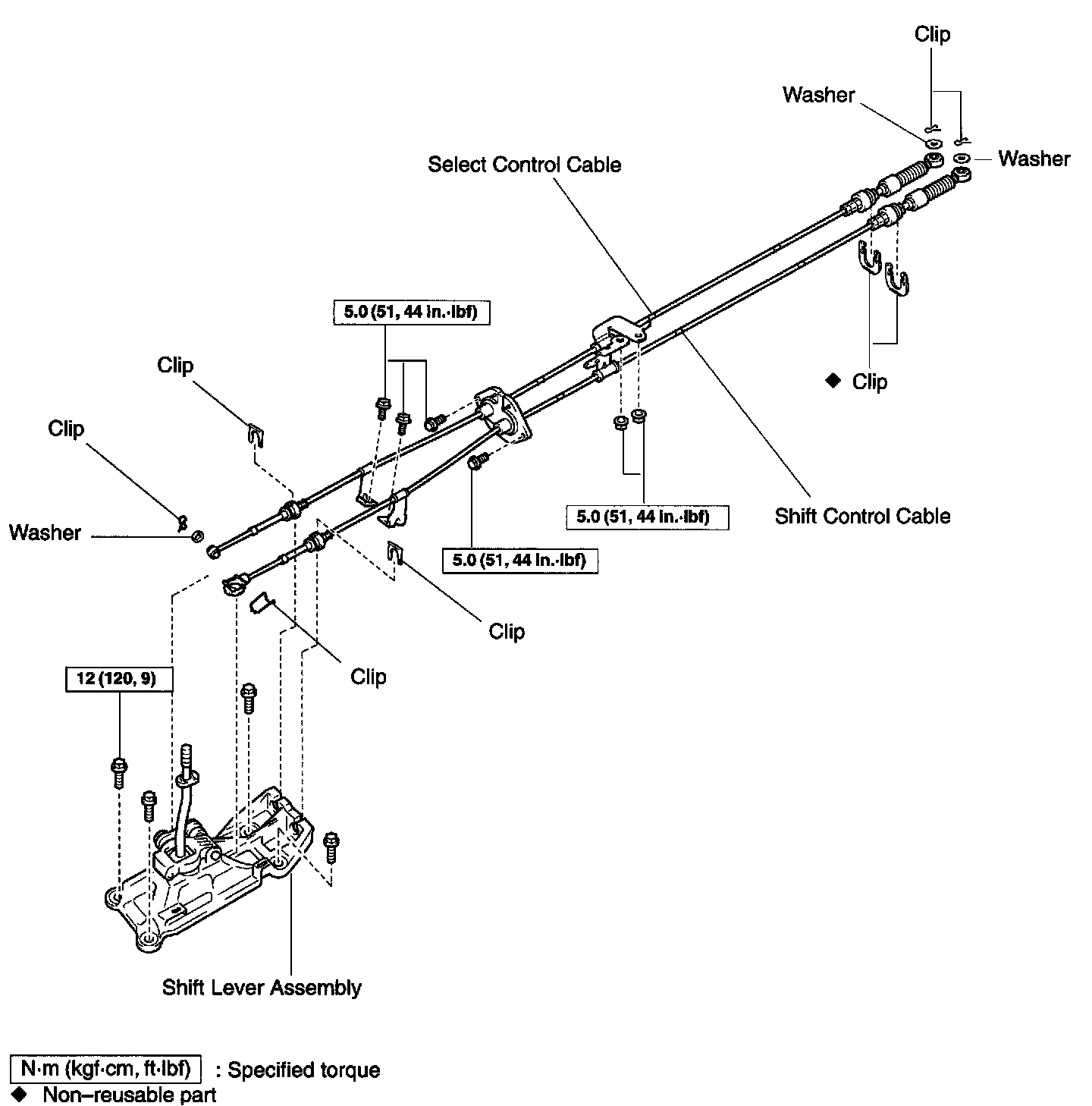

SHIFT LEVER AND CONTROL CABLE
