Radiator Cooling Fan Motor: Service and Repair

Part 1 Of 2:

Part 2 Of 2:

REMOVAL
1. REMOVE TOOL BOX AND LUGGAGE COMPARTMENT TRIM BOX COVER
2. REMOVE ELECTRIC COOLING FAN
a. Disconnect the 2 electric cooling fan connectors.

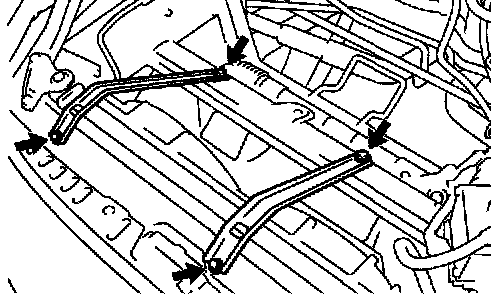

b. Remove the 2 bolts, 2 nuts and 2 spare wheel carrier extensions.
c. Remove the 2 bolts and electric cooling fan.

DISASSEMBLY





1. REMOVE FANS

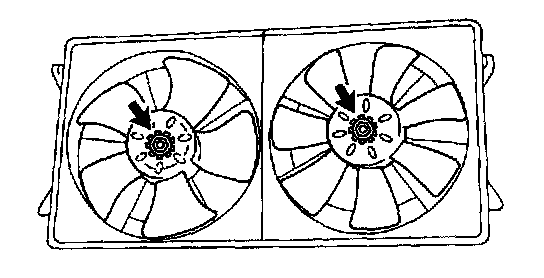

Remove the nut and fan.
2. REMOVE FAN MOTORS

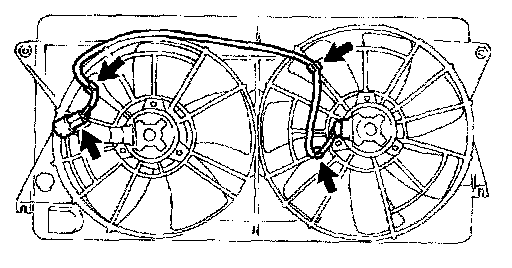

a. Disconnect the wire and connector holder from the fan shroud.

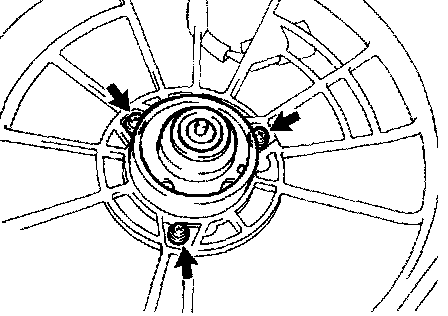

b. Remove the 3 screws and fan motor.

REASSEMBLY
1. INSTALL FAN MOTORS





a. Install the fan motor with the 3 screws.
Torque: 2.55 Nm (26 kgf-cm, 23 inch lbs.)





b. Install the wire and connector holder to the fan shroud.





2. INSTALL FANS

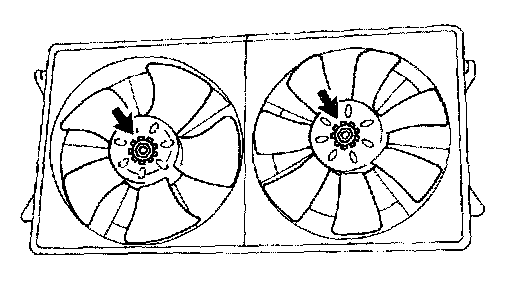

Install the fan with the nut.
Torque: 6.18 Nm (63 kgf-cm, 55 inch lbs.)

INSTALLATION
1. INSTALL ELECTRIC COOLING FAN
a. Install the electric cooling fan with the 2 bolts.
Torque: 5 Nm (51 kgf-cm, 44 inch lbs.)

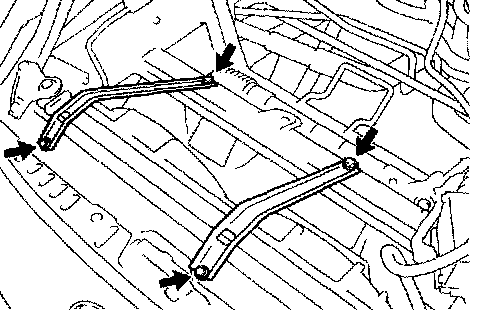

b. Install the 2 spare wheel carrier extensions with the 2 bolts and 2 nuts.
Torque: 8 Nm (82 kgf-cm, 70 inch lbs.)
c. Connect the 2 electric cooling fan connectors.
2. INSTALL LUGGAGE COMPARTMENT TRIM BOX COVER AND TOOL BOX
