Removal and Installation

Part 1 Of 3:

Part 2 Of 3:

Part 3 Of 3:

REMOVAL
1. DRAIN ENGINE COOLANT
2. REMOVE TOOL BOX AND LUGGAGE COMPARTMENT TRIM BOX COVER
3. REMOVE RADIATOR ASSEMBLY

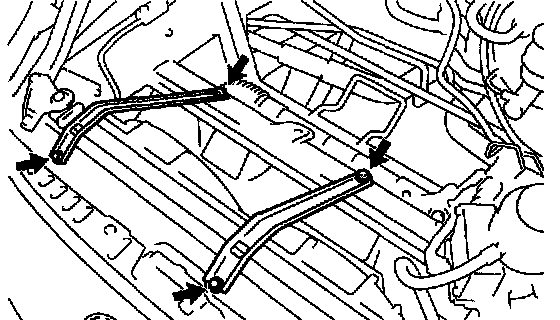

a. Remove the 2 bolts, 2 nuts and 2 spare wheel carrier extensions.
b. Disconnect the 2 electric cooling fan connectors.
c. Disconnect the 2 radiator hoses.

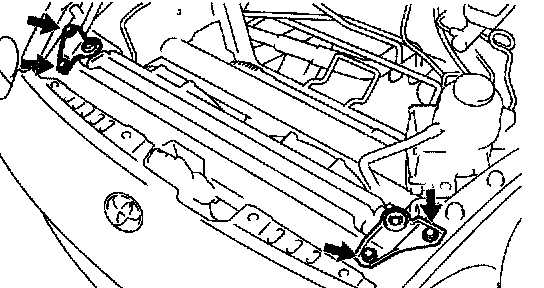

d. Remove the 4 bolts and 2 radiator upper supports.
e. Remove the 2 radiator lower support bushings.
4. REMOVE ELECTRIC COOLING FAN FROM RADIATOR
Remove the 2 bolts and electric cooling fan assembly.

INSTALLATION
1. INSTALL ELECTRIC COOLING FAN TO RADIATOR
Install the electric cooling fan with the 2 bolts.
Torque: 5 Nm (51 kgf-cm, 44 inch lbs.)
2. INSTALL RADIATOR ASSEMBLY
a. Install the 2 radiator lower support bushings.
b. Place the radiator assembly to the body.

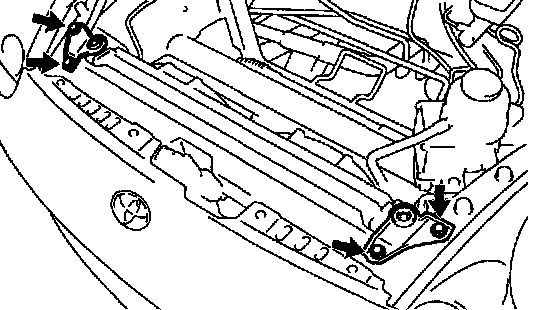

c. Install the 2 radiator upper supports with the 4bolts.
Torque: 12.5 Nm (128 kgf-cm, 9 ft. lbs.)
d. Connect the 2 radiator hoses.
e. Connect the 2 electric cooling fan connectors.

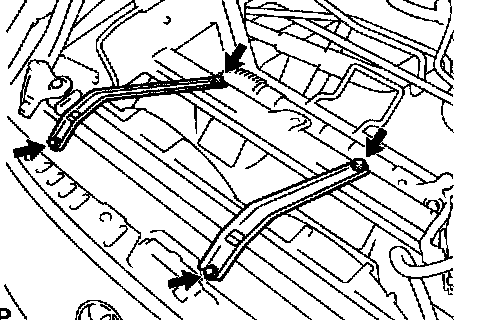

f. Install the 2 spare wheel carrier extensions with the 2 bolts and 2 nuts.
Torque: 8 Nm (82 kgf-cm, 70 inch lbs.)
3. FILL WITH ENGINE COOLANT
4. INSTALL LUGGAGE COMPARTMENT TRIM BOX COVER AND TOOL BOX
5. START ENGINE AND CHECK FOR LEAK
6. RECHECK ENGINE COOLANT LEVEL
