Water Pump: Testing and Inspection

ON-VEHICLE INSPECTION
INSPECT WATER PUMP

NOTICE: Be sure to do checking when the engine coolant is charged.

a. Remove the drive belt.

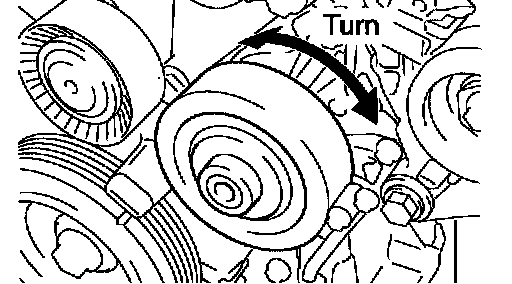

b. Turn the pulley, and check that the water pump bearing moves smoothly and quietly.
If necessary, replace the water pump.
c. Reinstall the drive belt.
