Blower Motor Resistor: Testing and Inspection

BLOWER RESISTOR

INSPECTION

1. REMOVE GLOVE COMPARTMENT DOOR




2. REMOVE NO.1 INSTRUMENT PANEL LOWER BRACKET

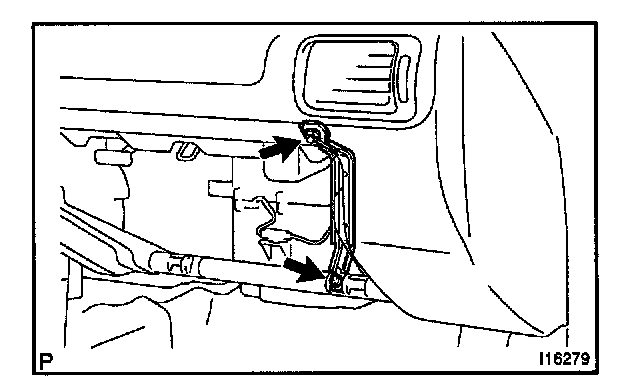

Remove the nut, screw and No.1 instrument panel lower bracket.




3. REMOVE BLOWER RESISTOR
a. Disconnect the blower resistor connector.
b. Remove the 2 screws and blower resistor.

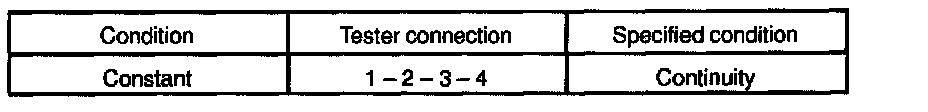

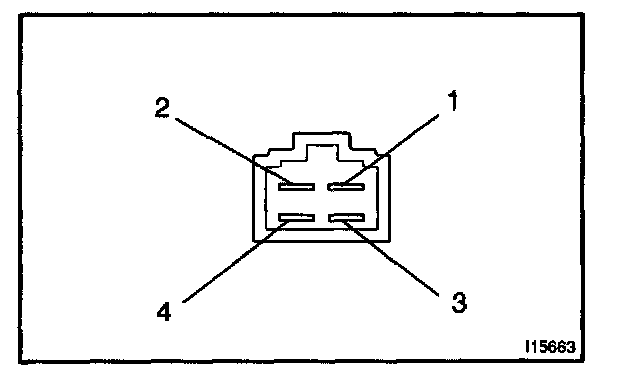

4. INSPECT BLOWER RESISTOR CONTINUITY
If continuity is not as specified, replace the blower resistor.

5. REINSTALL BLOWER RESISTOR
a. Install the blower resistor with the 2 screws.
b. Connect the blower resistor connector.

6. REINSTALL NO.1 INSTRUMENT PANEL LOWER BRACKET

7. REINSTALL GLOVE COMPARTMENT DOOR
