Removal and Installation

Blower Unit (Part 1):

Blower Unit (Part 2):

REMOVAL

1. REMOVE INSTRUMENT PANEL

2. REMOVE COOLING UNIT




3. REMOVE BLOWER UNIT
a. Remove the nut and disconnect the ABS ECU from the reinforcement.
b. Disconnect the blower motor connector.

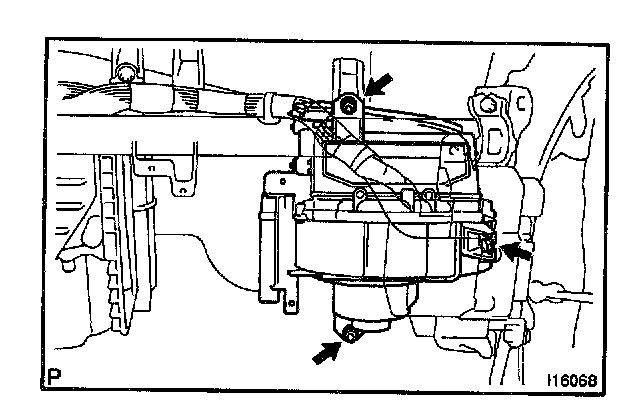

c. Remove the 2 nuts and a bolt and blower unit.

INSTALLATION




1. INSTALL BLOWER UNIT
a. Install the blower unit with the 2 nuts and a bolt.
b. Install the ABS ECU with the bolt to the reinforcement.
c. Connect the blower motor connector.

2. INSTALL COOLING UNIT

3. INSTALL INSTRUMENT PANEL
