Blower Motor: Testing and Inspection

INSPECTION

1. REMOVE GLOVE COMPARTMENT DOOR

2. REMOVE DOOR SCUFF PLATE

3. REMOVE COWL SIDE TRIM




4. REMOVE BLOWER MOTOR
a. Disconnect the blower motor connector.

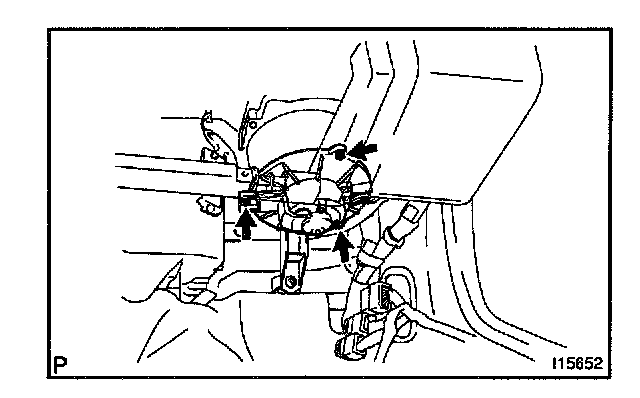

b. Using a torx wrench, remove the 3 screws and blower motor.




5. INSPECT BLOWER MOTOR OPERATION
Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, then check that the motor operations smoothly.
If operation is not as specified, replace the blower motor.

6. INSTALL BLOWER MOTOR
a. Using a torx wrench, install the blower motor with the 3 screws.
b. Connect the blower motor connector.

7. REINSTALL COWL SIDE TRIM

8. REINSTALL DOOR SCUFF PLATE

9. REINSTALL GLOVE COMPARTMENT DOOR
