Heater Controls Dials Operation

ON-VEHICLE INSPECTION




INSPECT HEATER CONTROL DIALS OPERATION

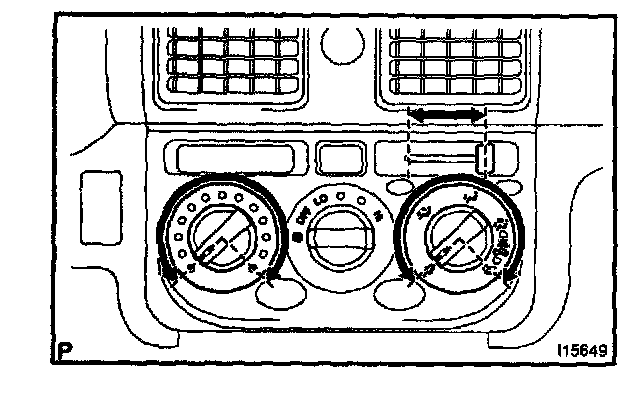

Turn the control lever and 2 control dials left and right then check that click sound can be heard and recoil is felt.

If click sound cannot be heard or recoil is felt, adjust the control cable or check control cable and heater control assembly.
