Disassembly and Reassembly

DISASSEMBLY




1. REMOVE HEATER RADIATOR

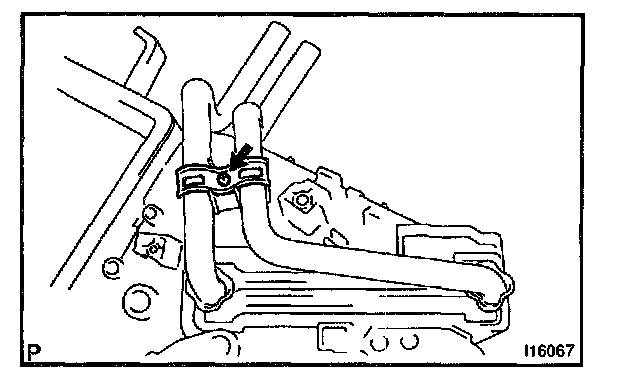

a. Remove the screw and clamp.
b. Pull out the heater radiator.

2. REMOVE DEFROSTER NOZZLE

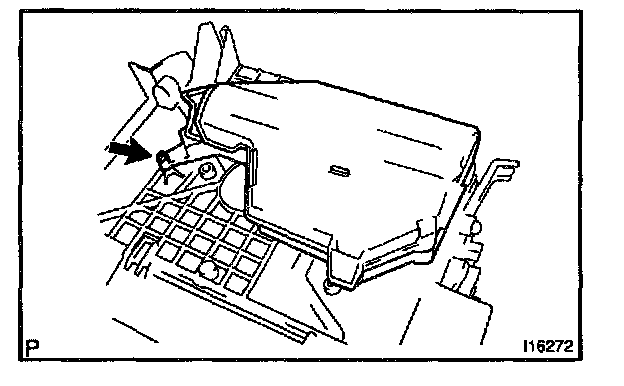

Remove the screw and defroster nozzle.




3. REMOVE HEATER COVER
Remove the 2 claws, screw and heater cover.

REASSEMBLY




1. INSTALL HEATER COVER
Install the heater cover with the screw.

2. INSTALL DEFROSTER NOZZLE

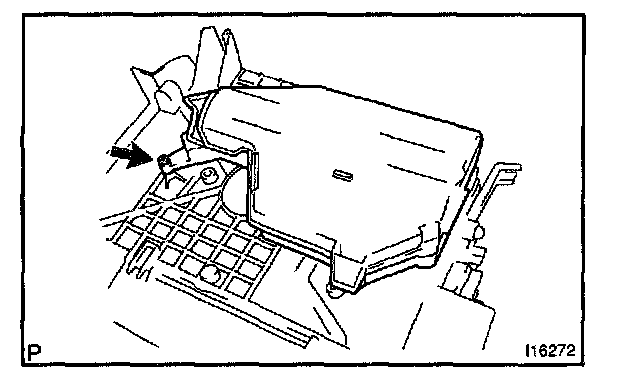

Install the defroster nozzle with the screw.




3. INSTALL HEATER RADIATOR
a. Install the heater radiator.

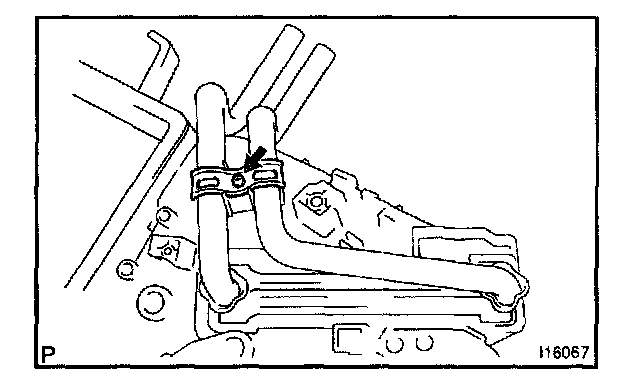

b. Install the clamp with the screw.
