Dashboard / Instrument Panel: Diagrams

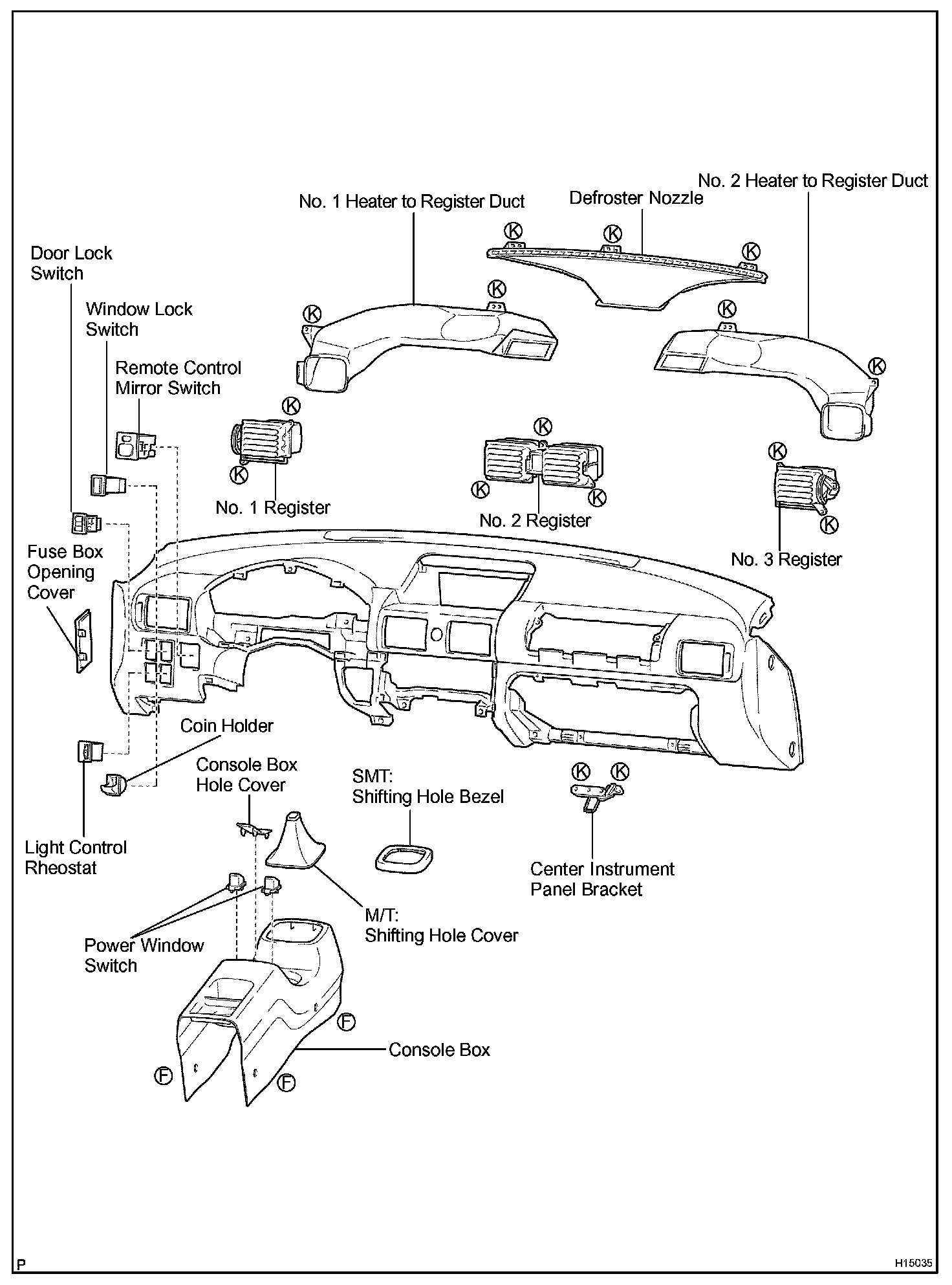

Instrumental Panel:

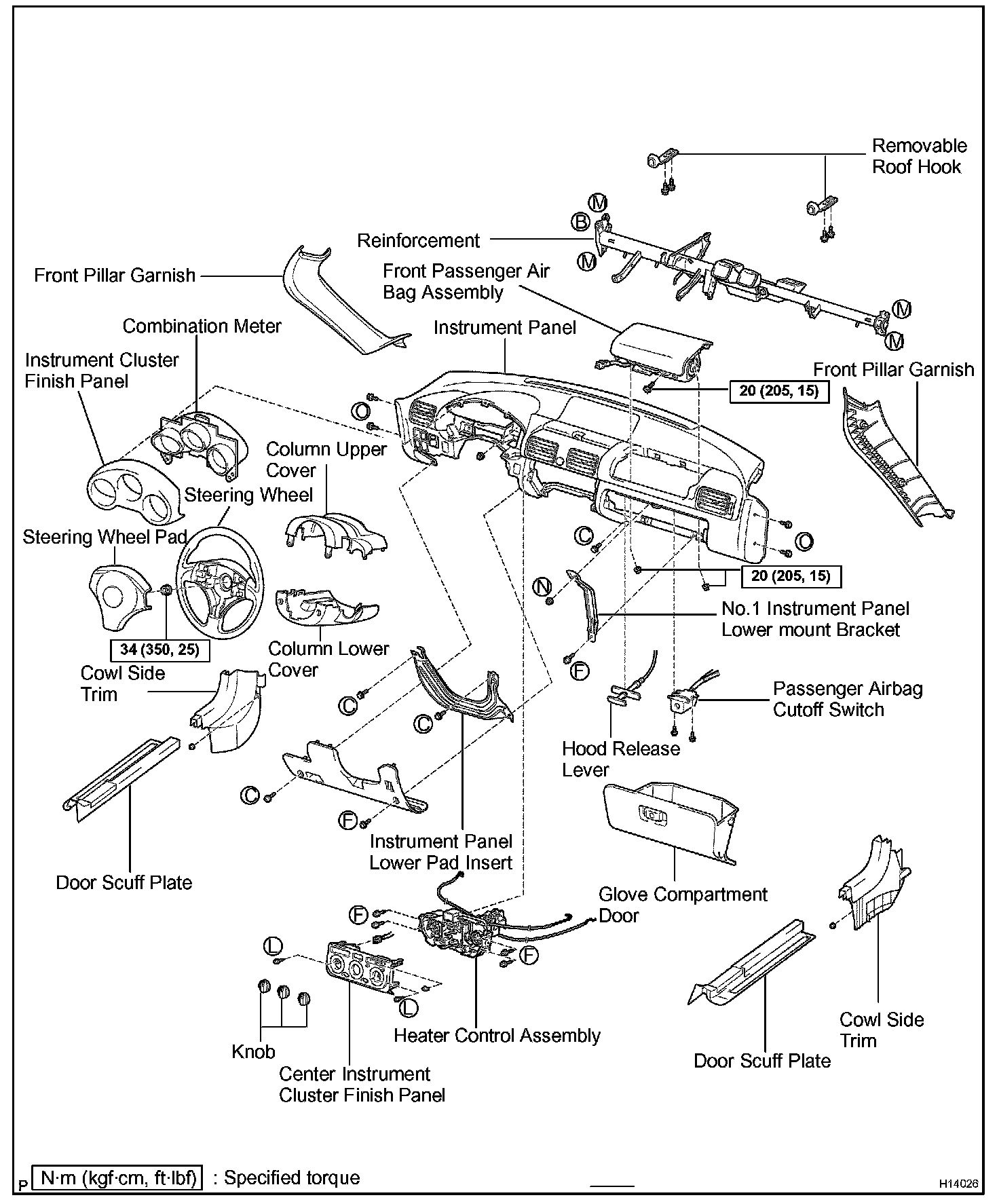

Instrumental Panel:

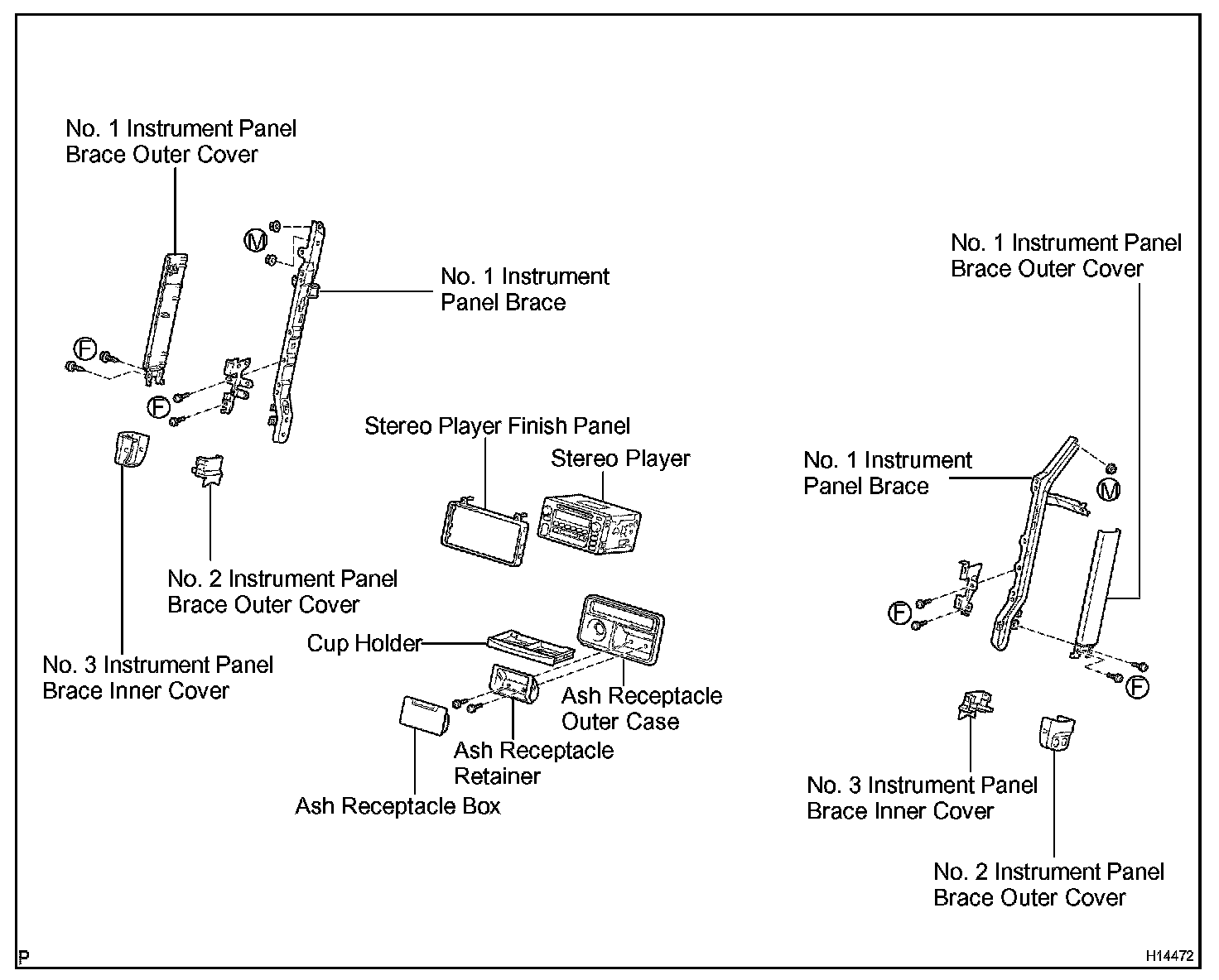

Instrumental Panel:

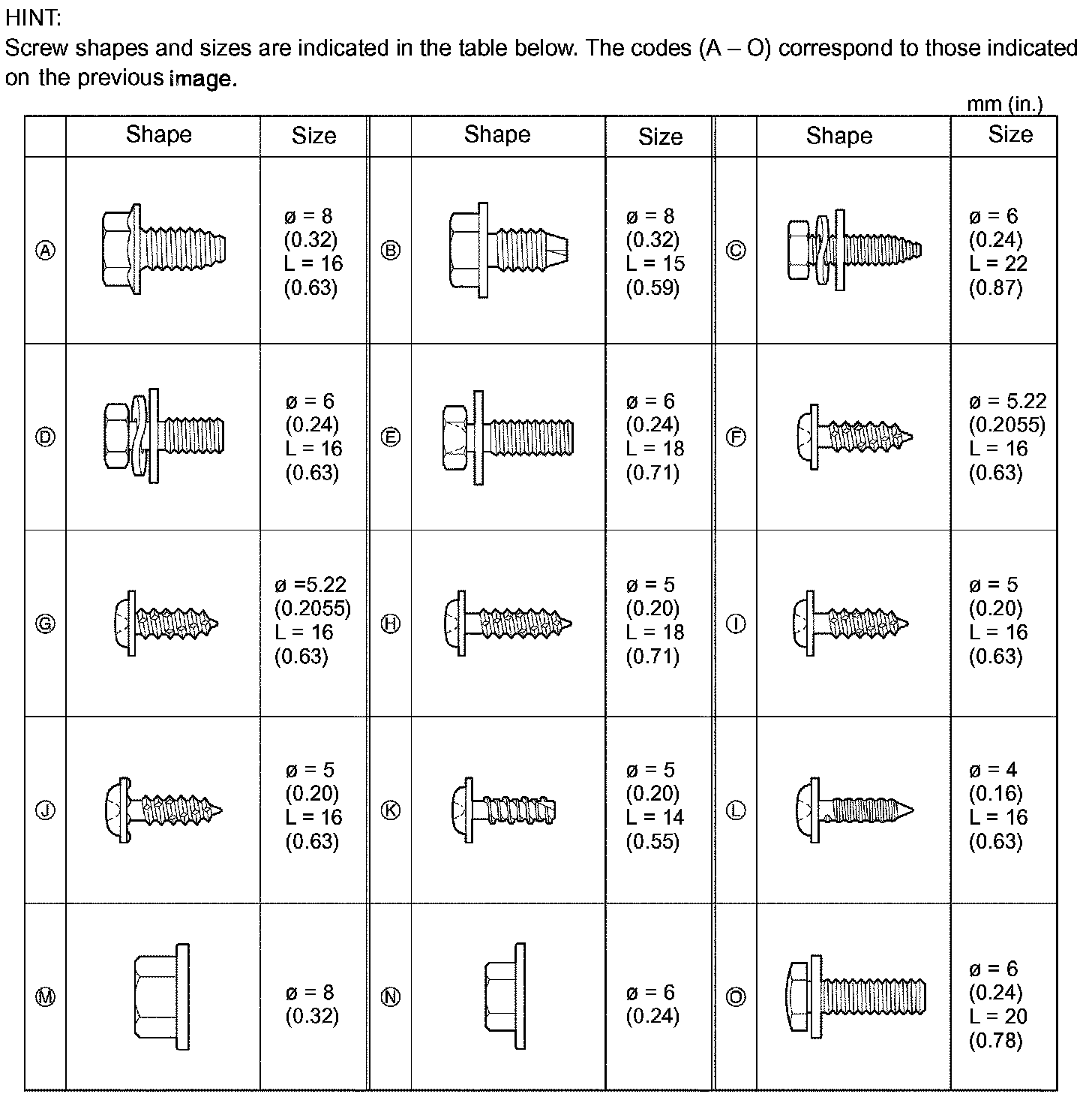

Instrumental Panel:
