Symptom Related Diagnostic Procedures

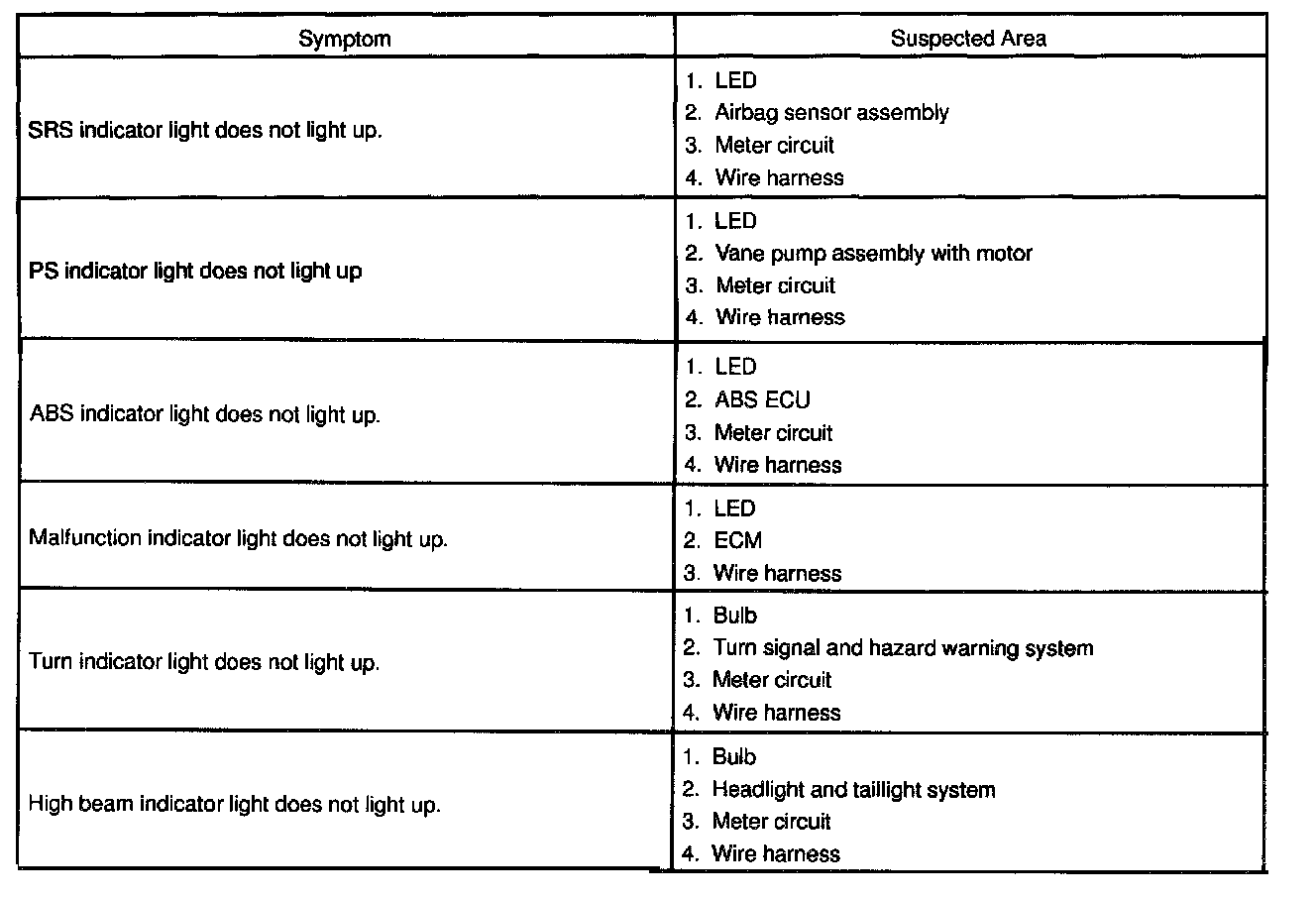

Problem Symptoms Table - Indicator Lights (Combination Meter):

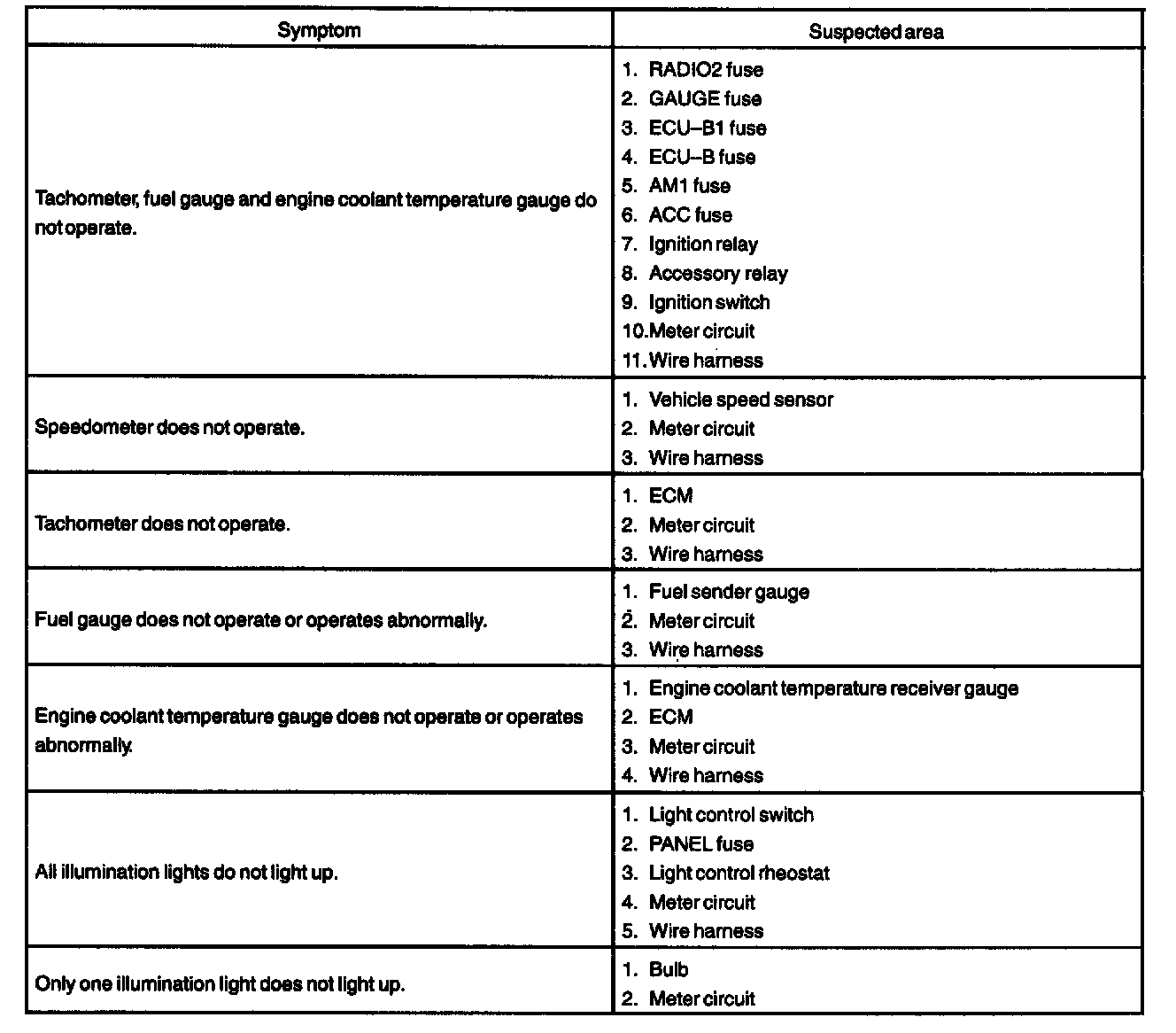

Problem Symptoms Table - Meter, Gauges And Illumination (Combination Meter):

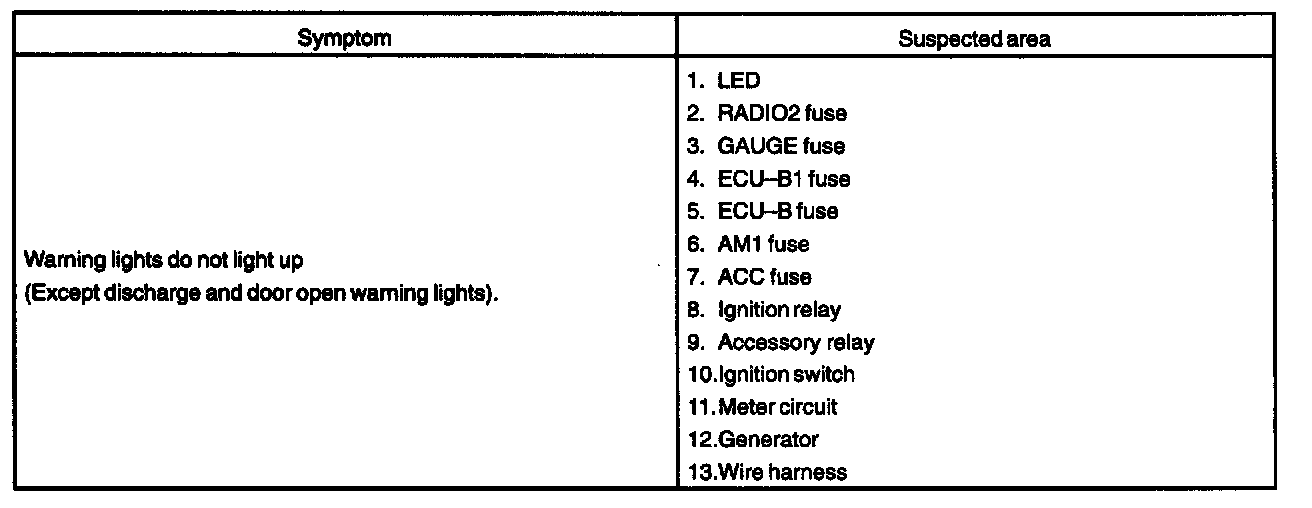

Problem Symptoms Table - Warning Lights (Combination Meter):

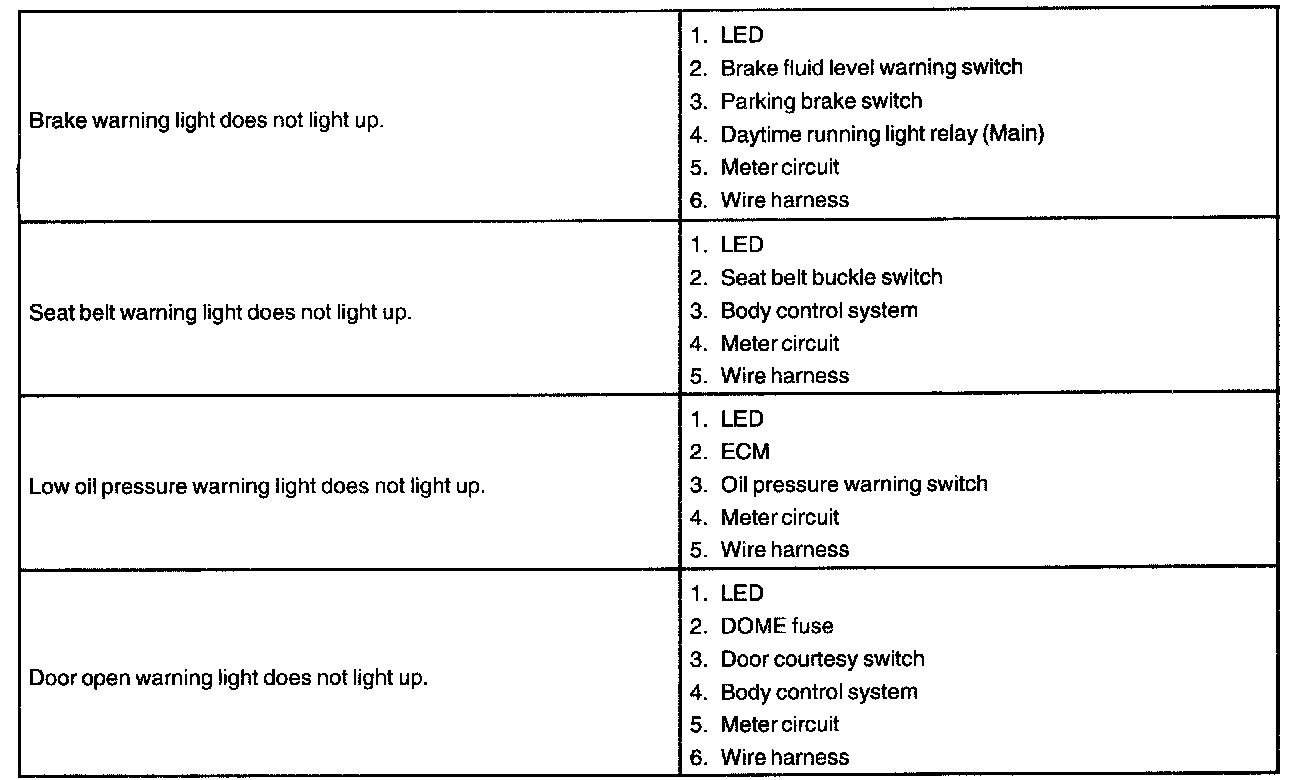

Problem Symptoms Table - Warning Lights (Combination Meter) Part 2:
