Component Tests and General Diagnostics

INSPECTION

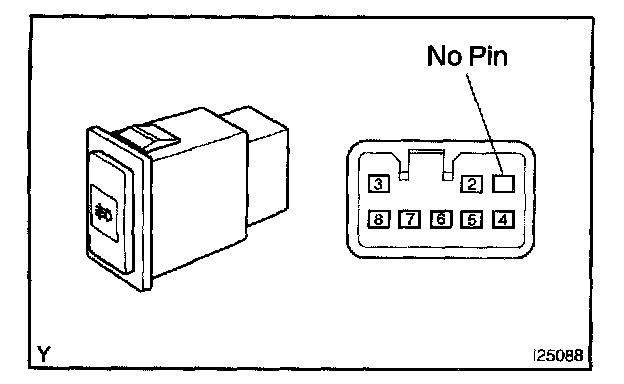

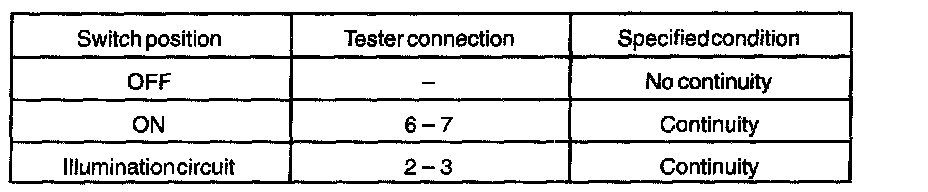

1. INSPECT FOG LIGHT SWITCH CONTINUITY
If the Continuity is not as specified, replace the switch.







2. INSPECT FOG LIGHT RELAY (Marking: FOG) CONTINUITY
If the continuity is not as specified, replace the relay.
