Fluid - M/T: Service and Repair

ON-VEHICLE REPAIR
REPLACE TRANSAXLE OIL
a. Remove the filler plug.
b. Remove the drain plug and drain the transaxle oil.

HINT: Use a container to catch the transaxle oil.

c. Reinstall the drain plug.
Torque: 39 Nm (400 kgf-cm, 29 ft. lbs.)

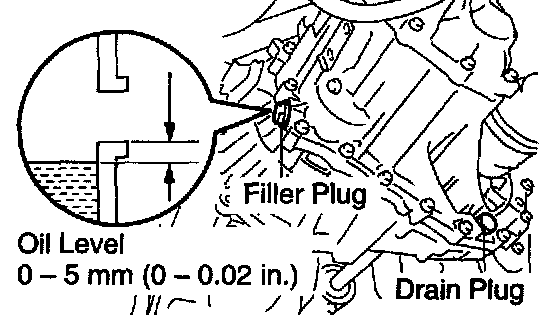

d. Refill new transaxle oil as shown in the illustration.
Oil grade: API GL-4 or GL-5
Viscosity: SAE 75W-90

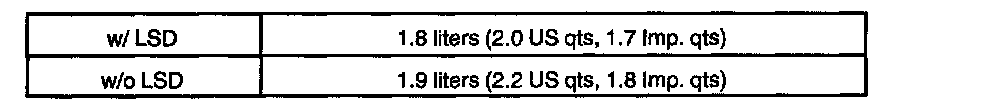

Capacity

e. Reinstall the filler plug.
Torque: 39 Nm (400 kgf-cm, 29 ft. lbs.)
