Fuse: Application and ID

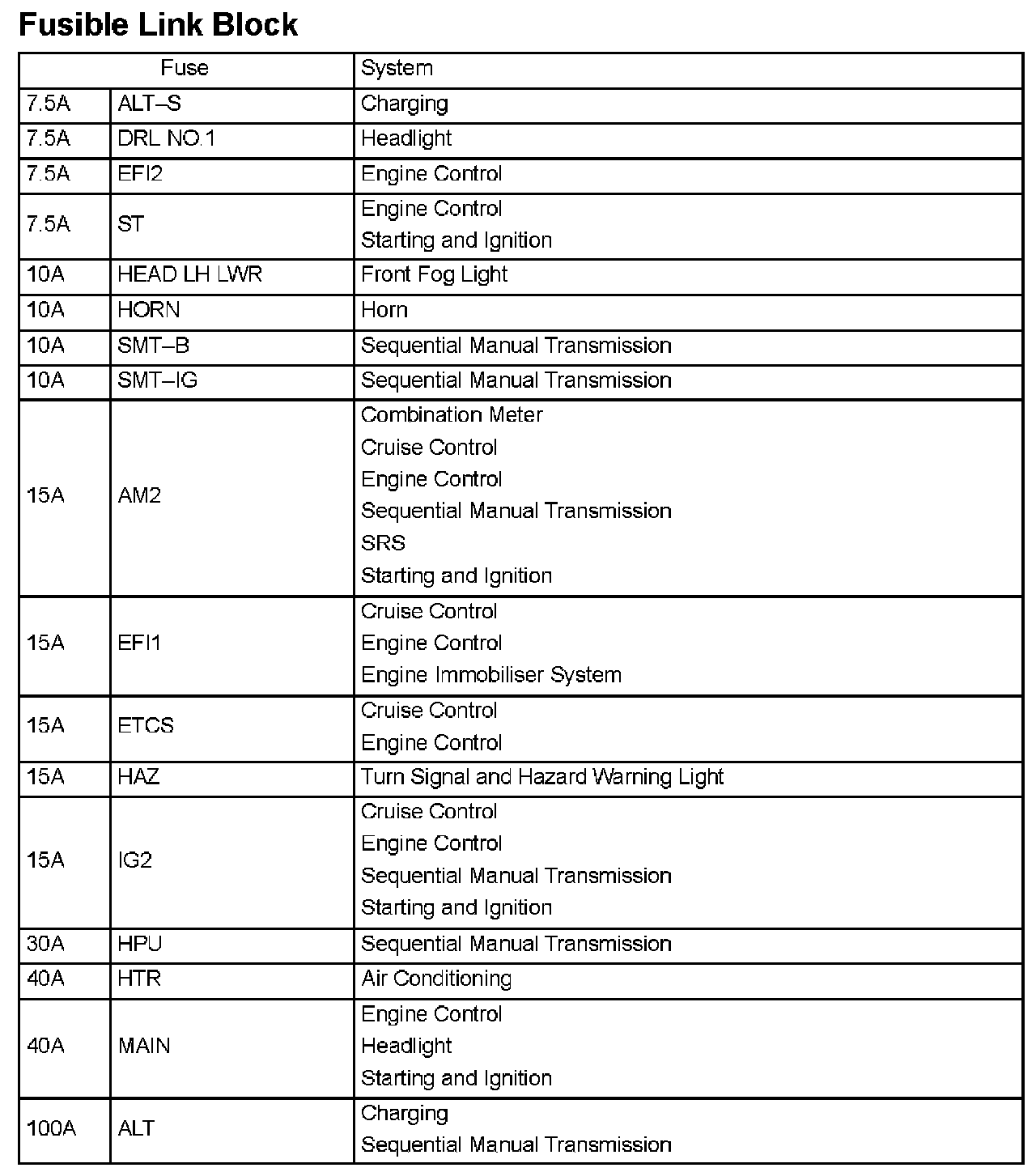

Fusible Link Block:

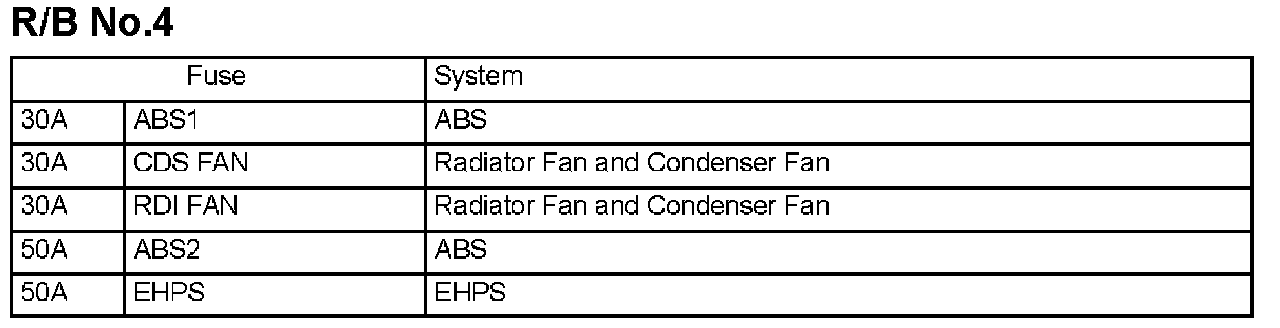

R/B No.4:

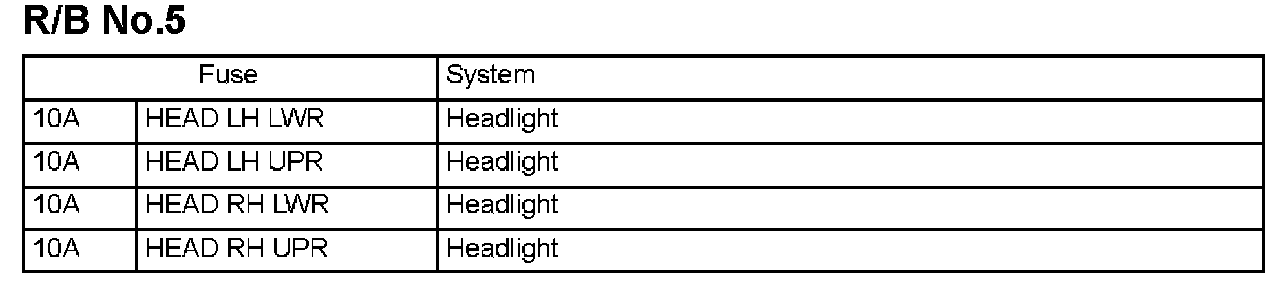

R/B No.5:
Engine Compartment Fuse Identification

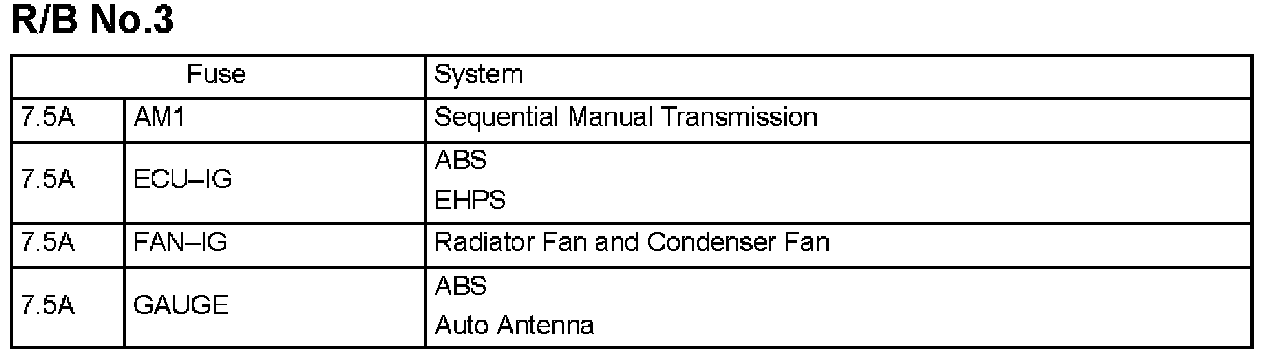

R/B No.3 Part 1:
R/B No.3 Part 2:
R/B No.3 Part 3:

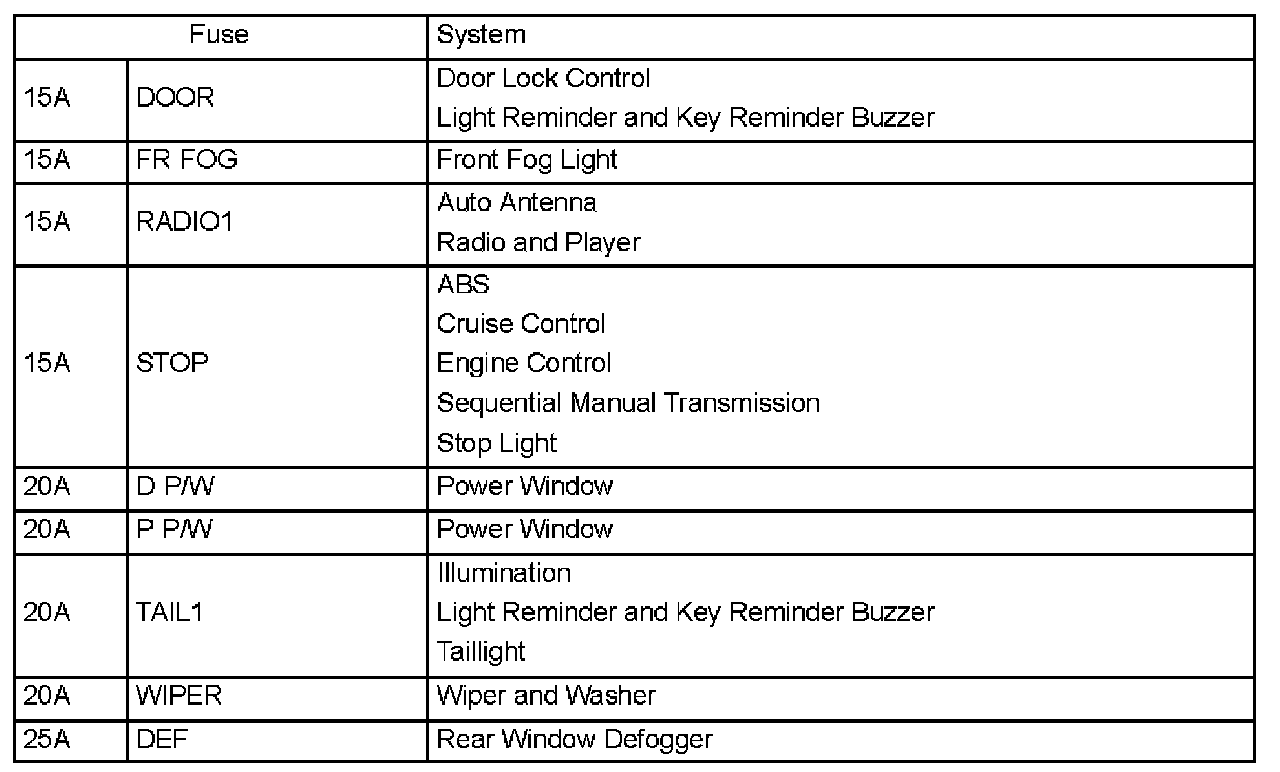

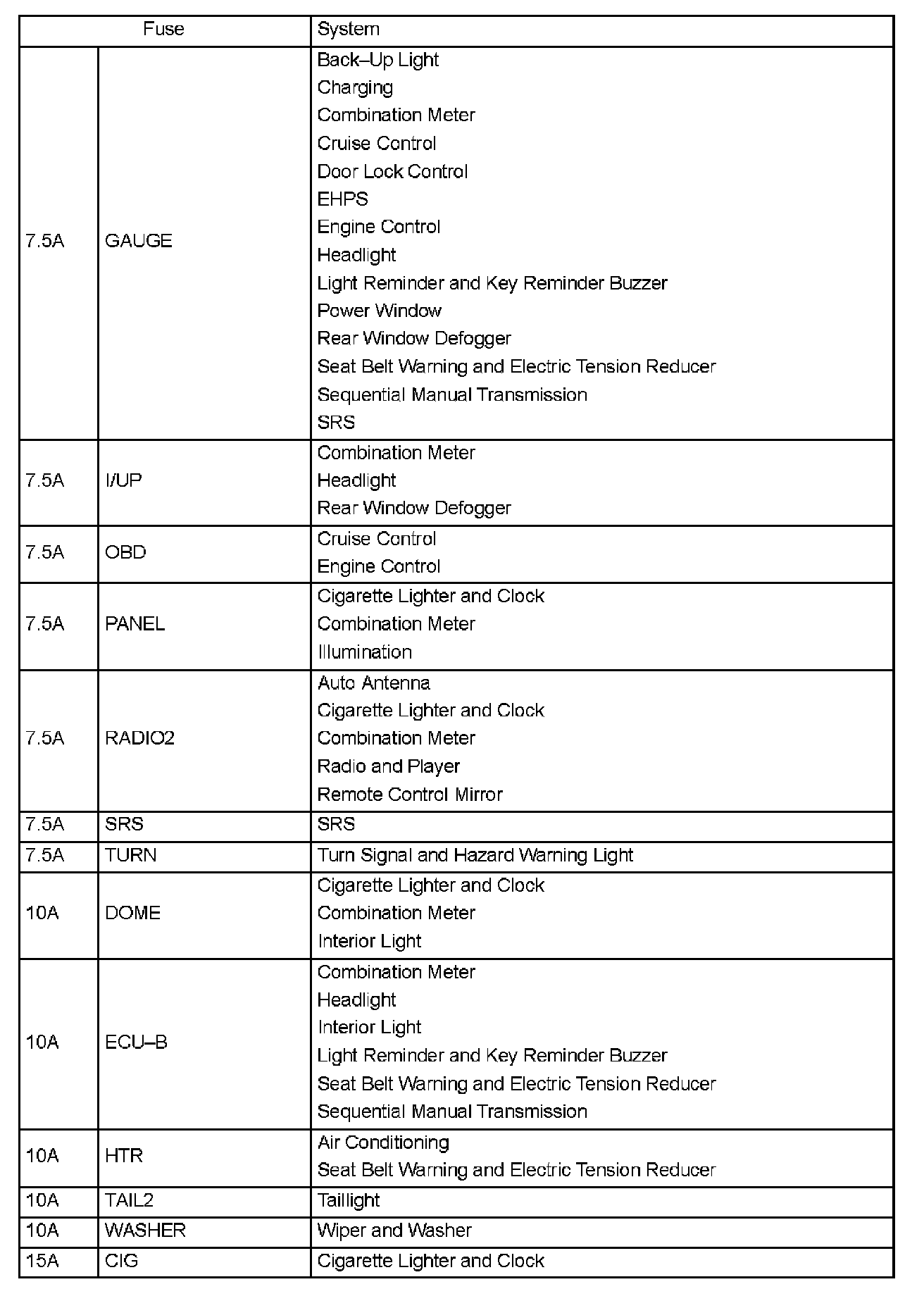

Interior Panel Fuse Identification
Engine Compartment Fuse Identification
Interior Panel Fuse Identification
