Home >> Toyota >> 2004 >> MR2 Spyder L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Idle Speed/Throttle Actuator - Electronic >> Locations

Idle Speed/Throttle Actuator - Electronic: Locations

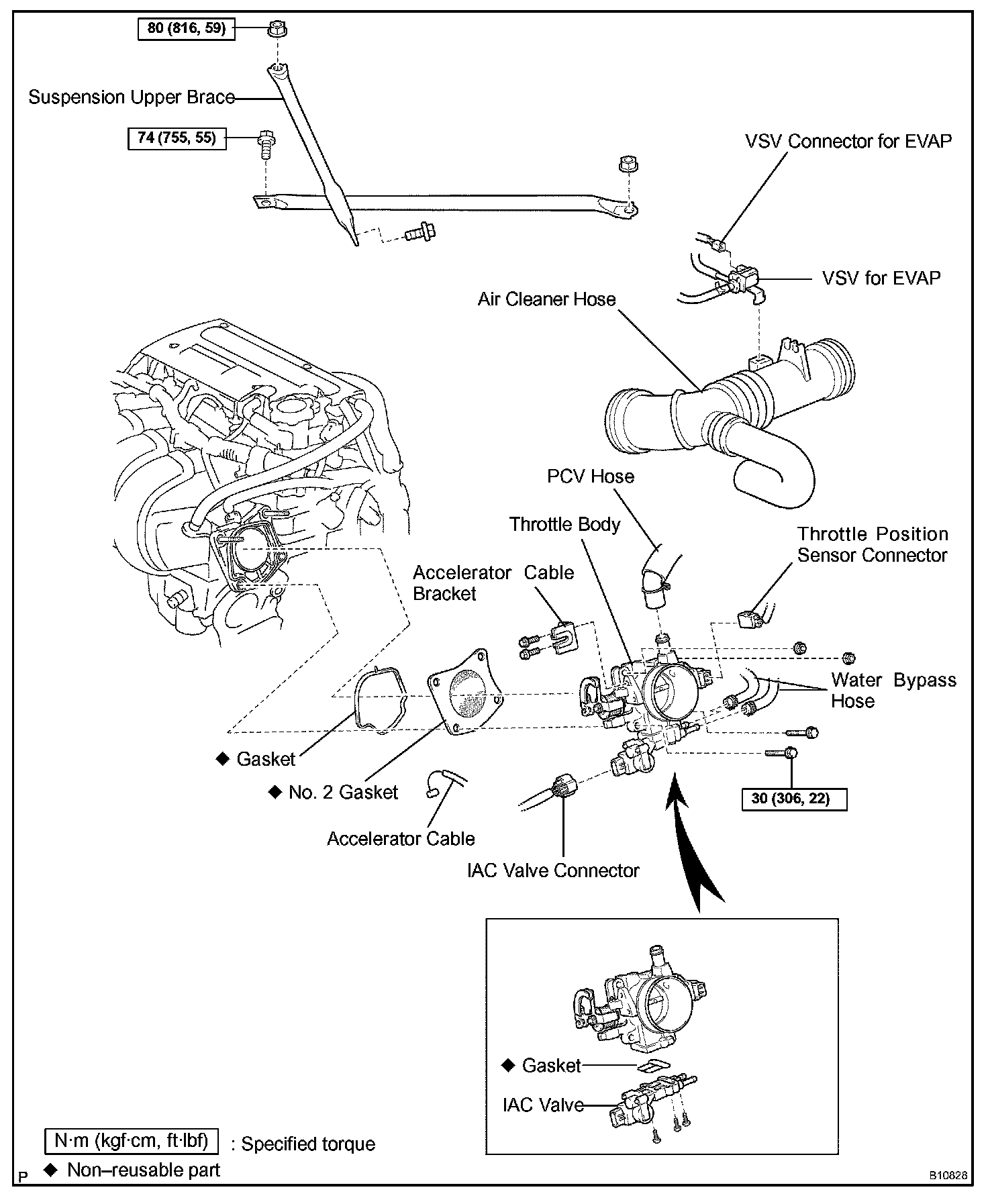

Idle Air Control (IAC) Valve (M/T):
