MIL Circuit
MIL CIRCUITCIRCUIT DESCRIPTION
If the ECM detects trouble, the MIL lights up. At this time, the ECM records a DTC in memory.

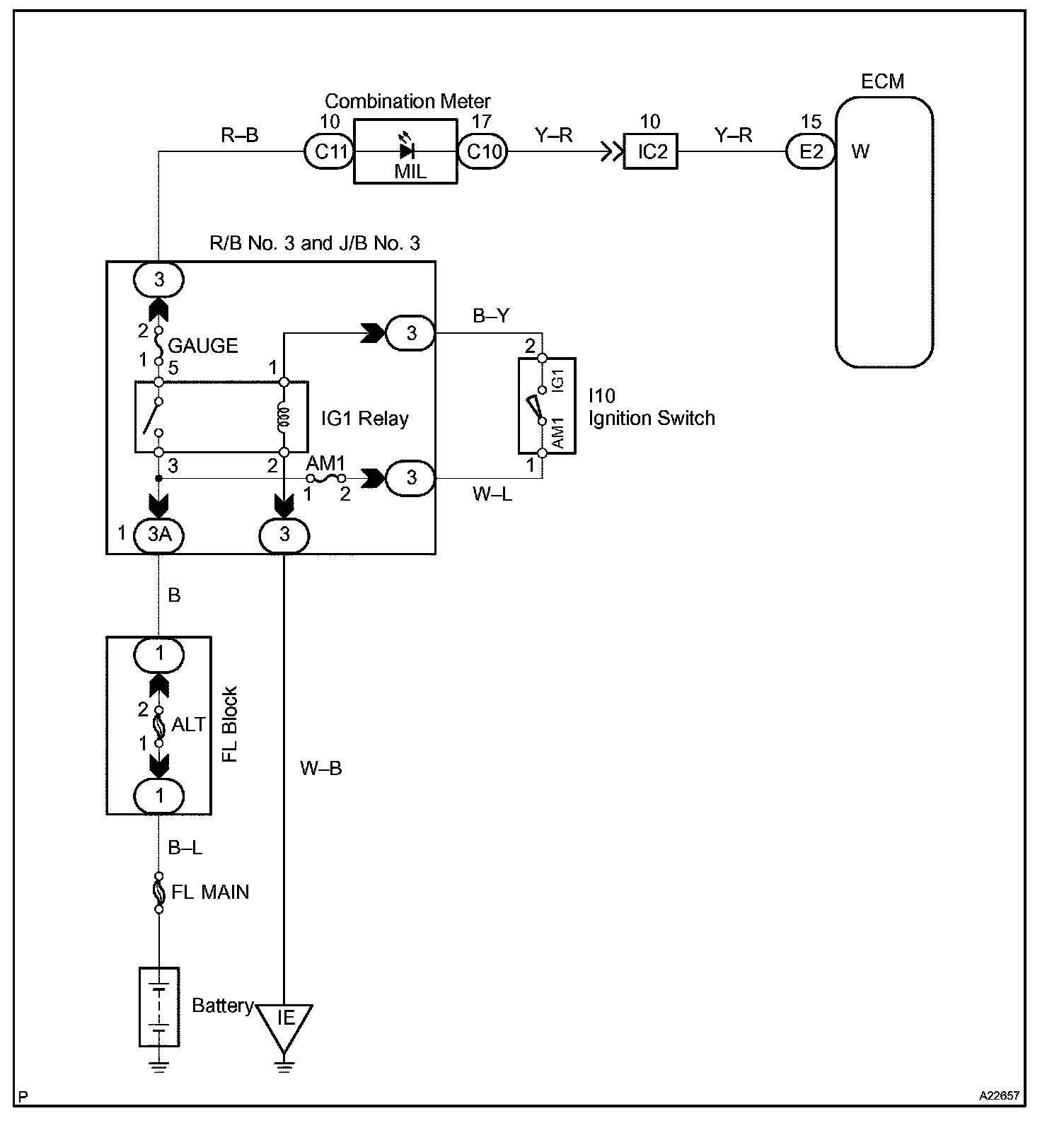

Wiring Diagram:

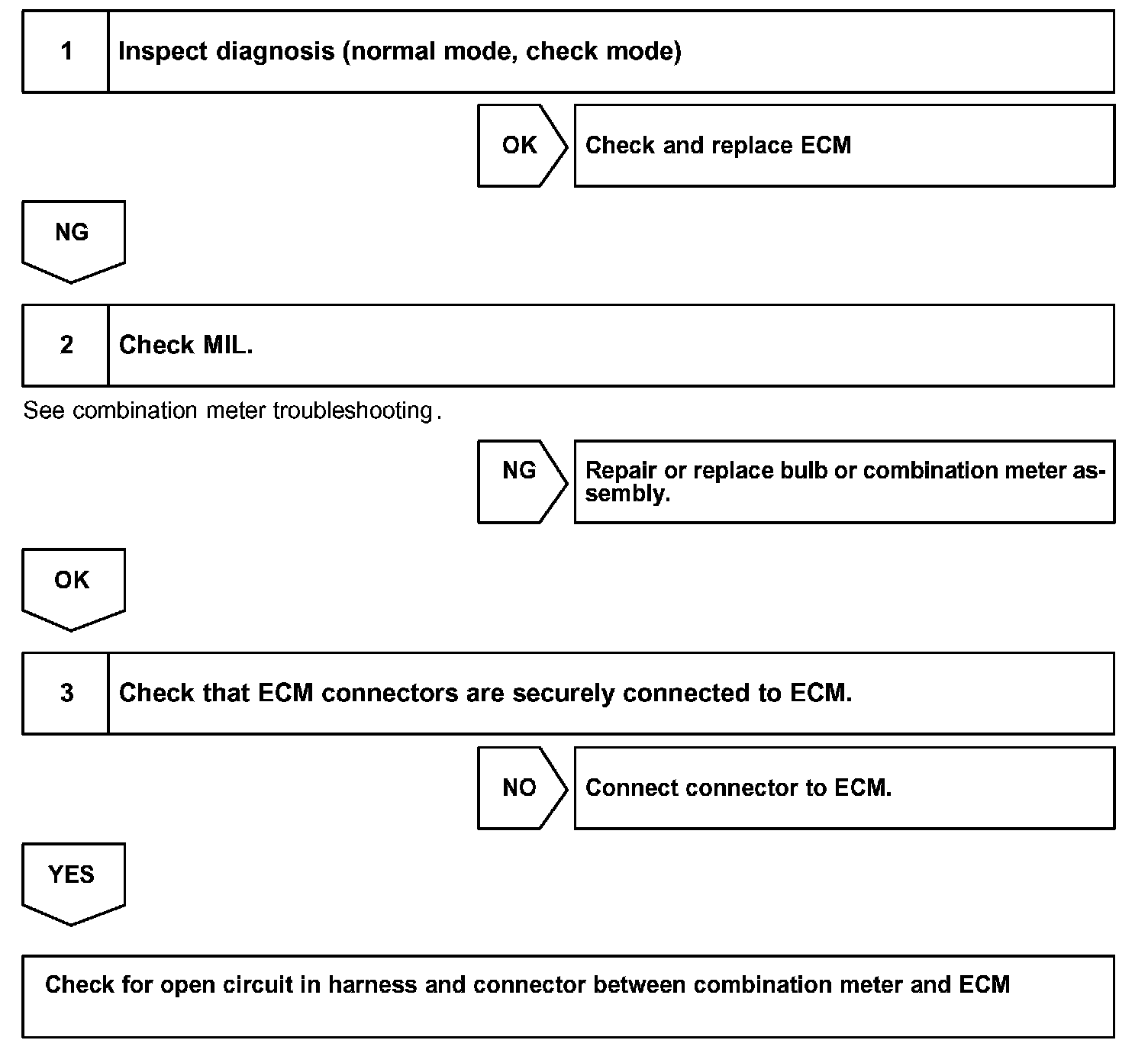

Step 1 - 3:

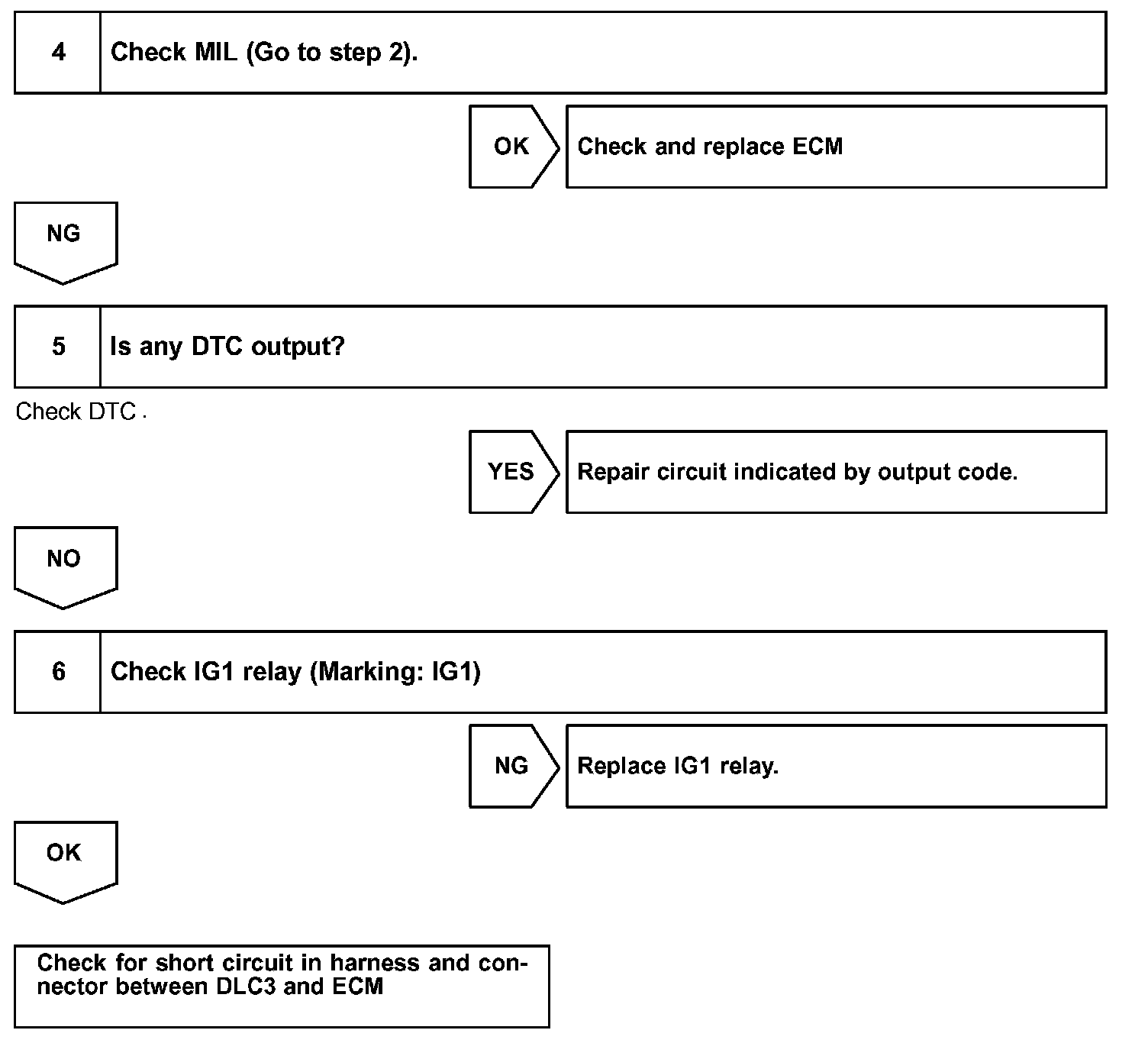

Step 4 - 6:
INSPECTION PROCEDURE

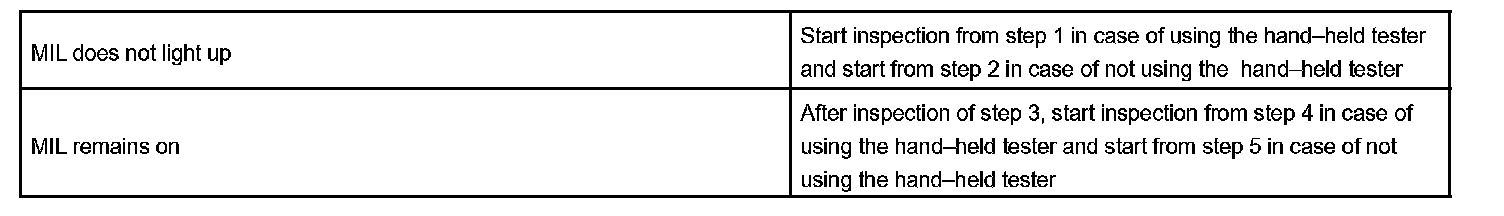

HINT: Troubleshoot in accordance with the chart above for each trouble symptom.
