Data List

DATA LIST

HINT: Using the hand-held tester's DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

NOTE: In the table given, the values listed under "Normal Condition" are reference values. Do not depend solely on the these reference values when deciding if a part is faulty or not.

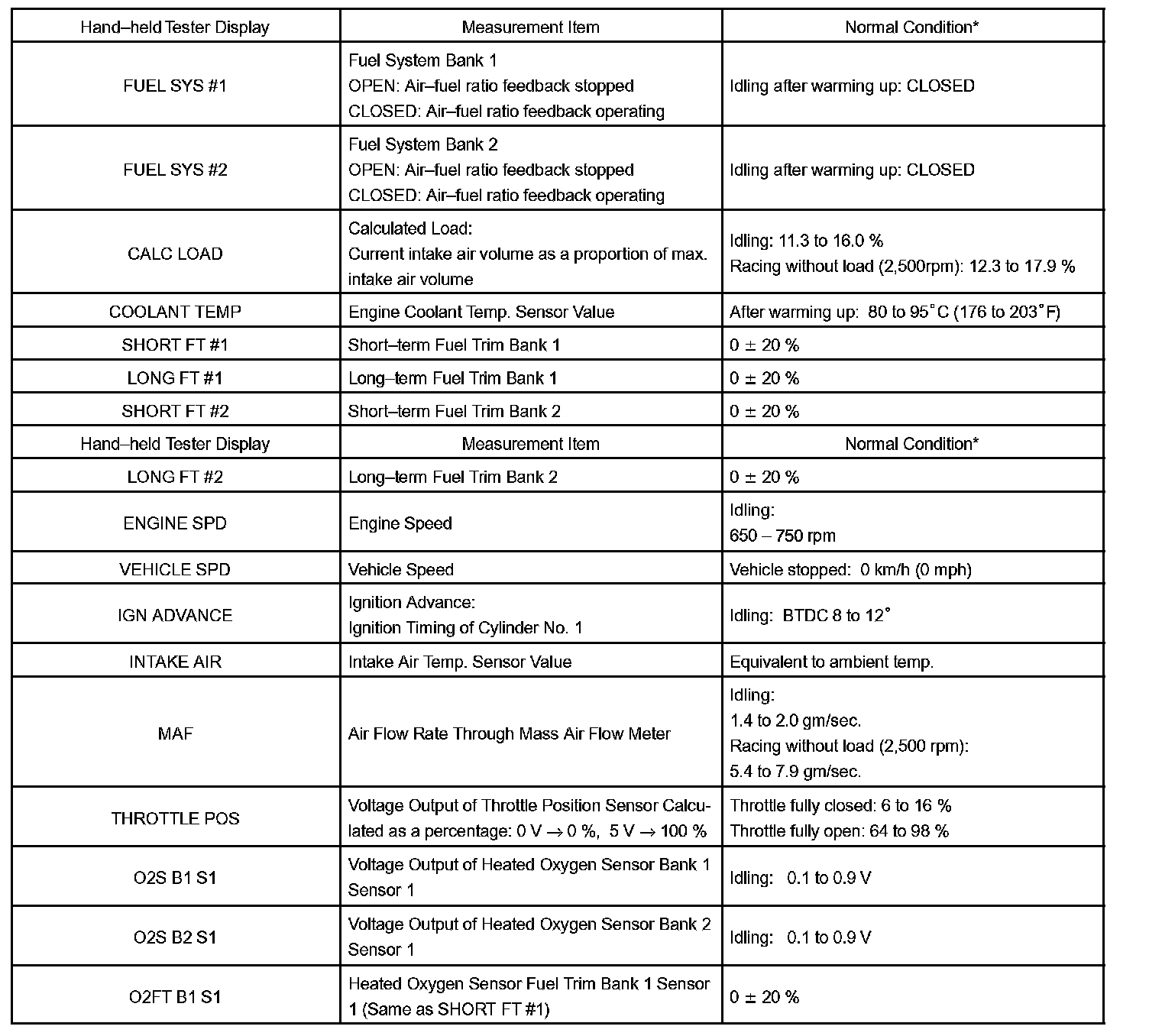

Part 1:

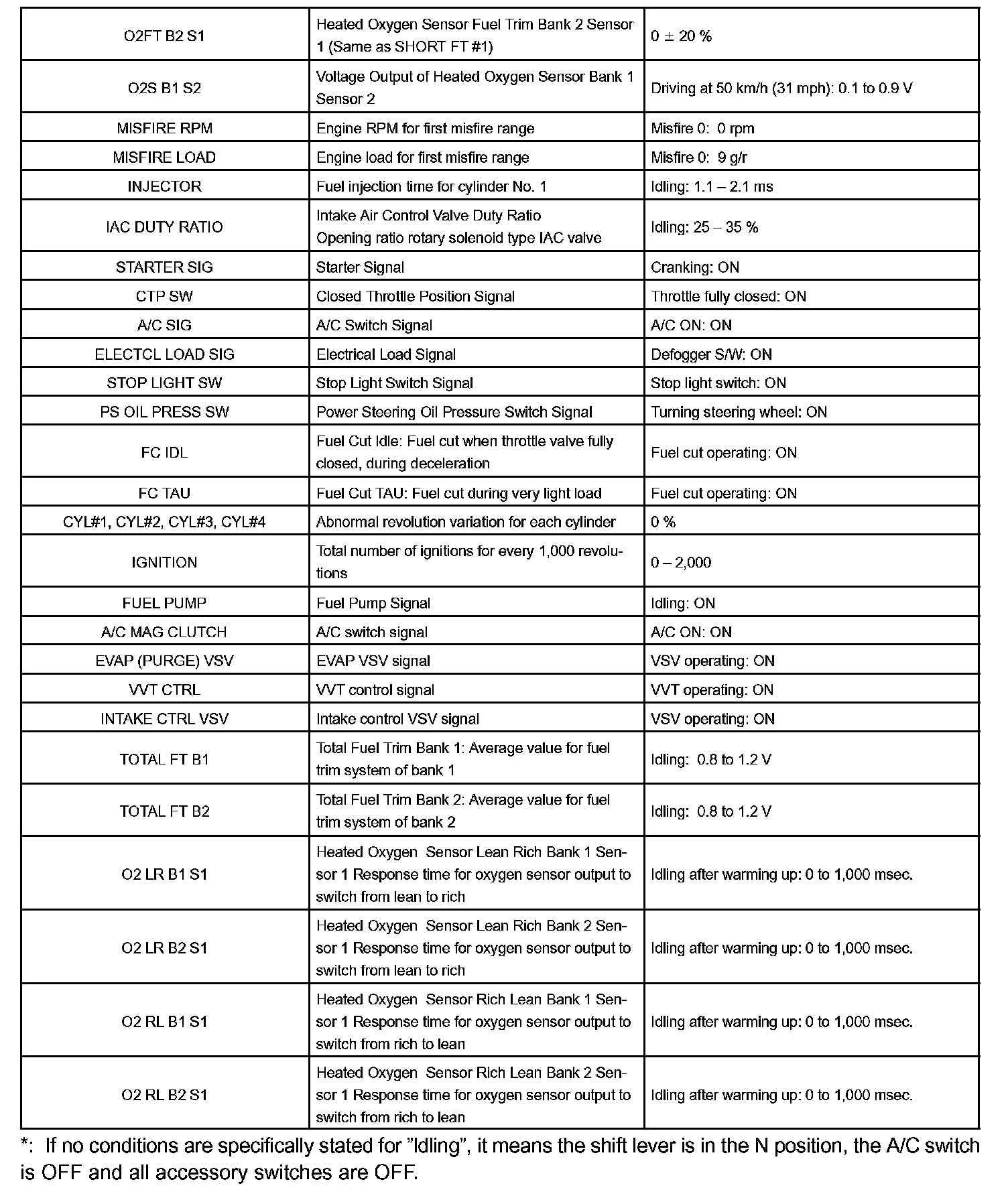

Part 2:

a. Warm up the engine.
b. Turn the ignition switch OFF.
c. Connect the hand-held tester or the OBD II scan tool to the DLC3.
d. Turn the ignition switch ON.
e. Push the ON button of the hand-held tester or the OBD II scan tool.
f. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST.
g. According to the display on tester, read the DATA LIST.
1. CARB mandated signals.
