Positive Crankcase Ventilation: Testing and Inspection

INSPECTION

1. INSPECT PCV VALVE

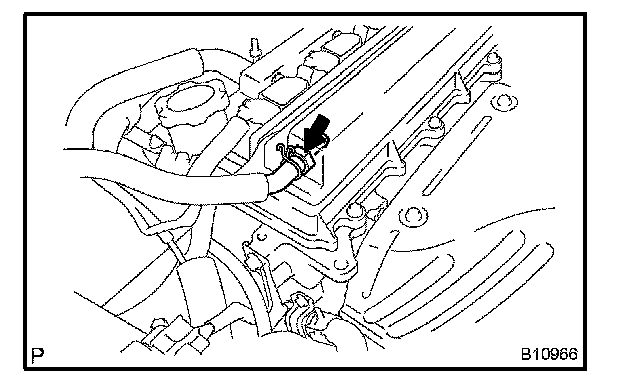

a. Disconnect the PCV hose from the PCV valve.

b. Remove the PCV valve.




c. Install clean hose to the PCV valve.

d. Inspect the PCV valve operation.

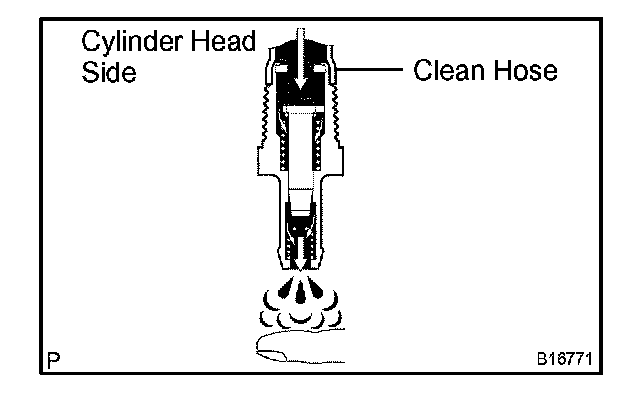

1. Blow into the cylinder head side, and check that air passes through easily.

CAUTION: Do not suck air through the valve. Petroleum substances inside the valve are harmful.

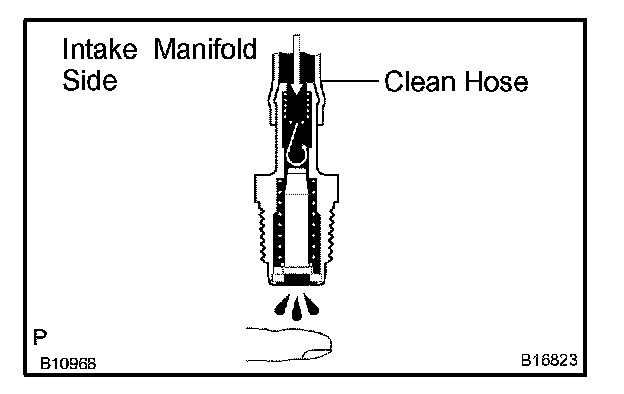

2. Blow air into the intake manifold side, and check that air passes through with difficulty.

If operation is not as specified, replace the PCV valve.

e. Remove the clean hose from the PCV valve.

f. Reinstall the PCV valve.

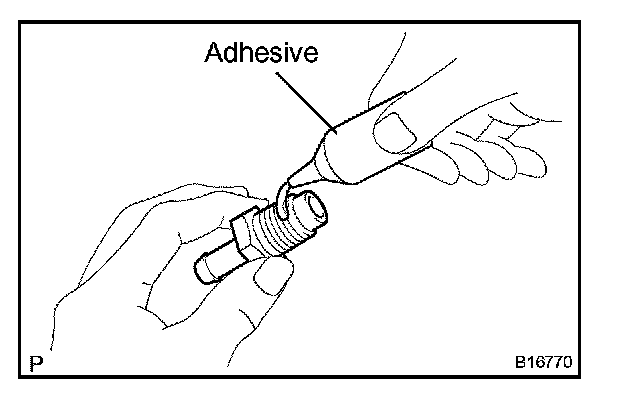

1. Apply adhesive to 2 or 3 threads.

Adhesive:
Part No. 08833-00070, THREE BOND 1324 or equivalent

2. Reinstall the PCV valve.

Torque: 30 N.m (306 kgf.cm, 22 ft.lbf)

g. Connect the PCV hose from the PCV valve.

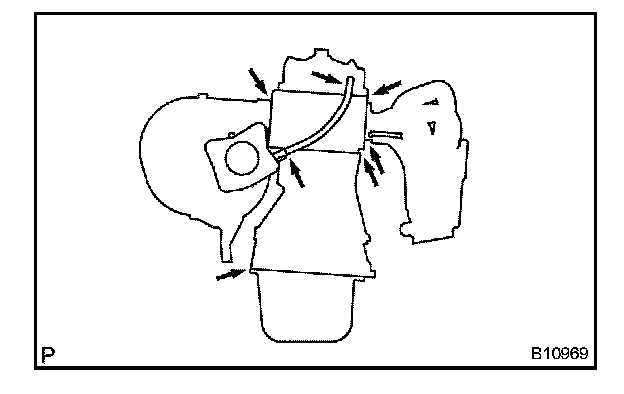

2. INSPECT PCV HOSES AND CONNECTIONS
Visually check for cracks, leaks or damage.
