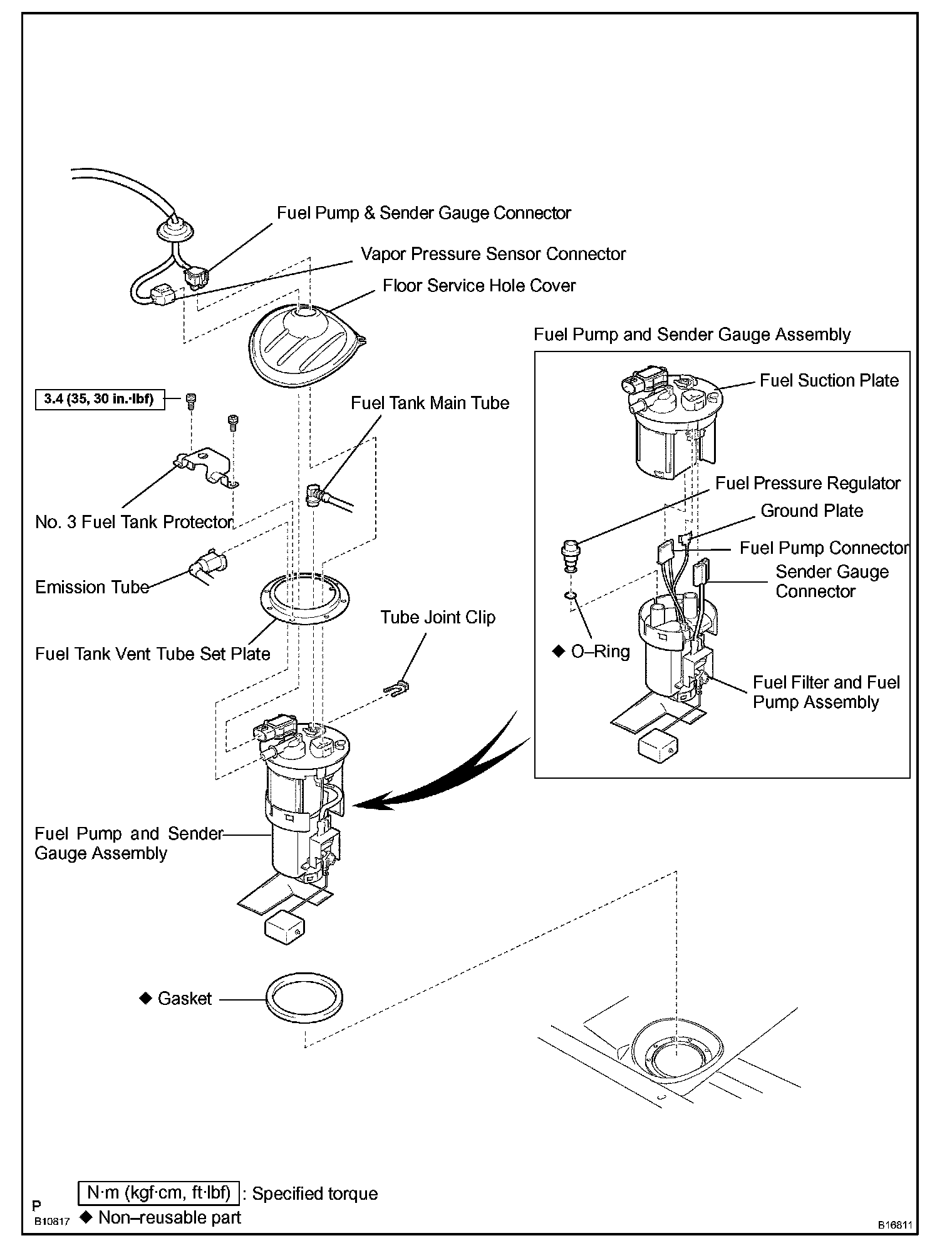

Fuel Pressure Regulator: Service and Repair

Fuel Pressure Regulator:

REPLACEMENT

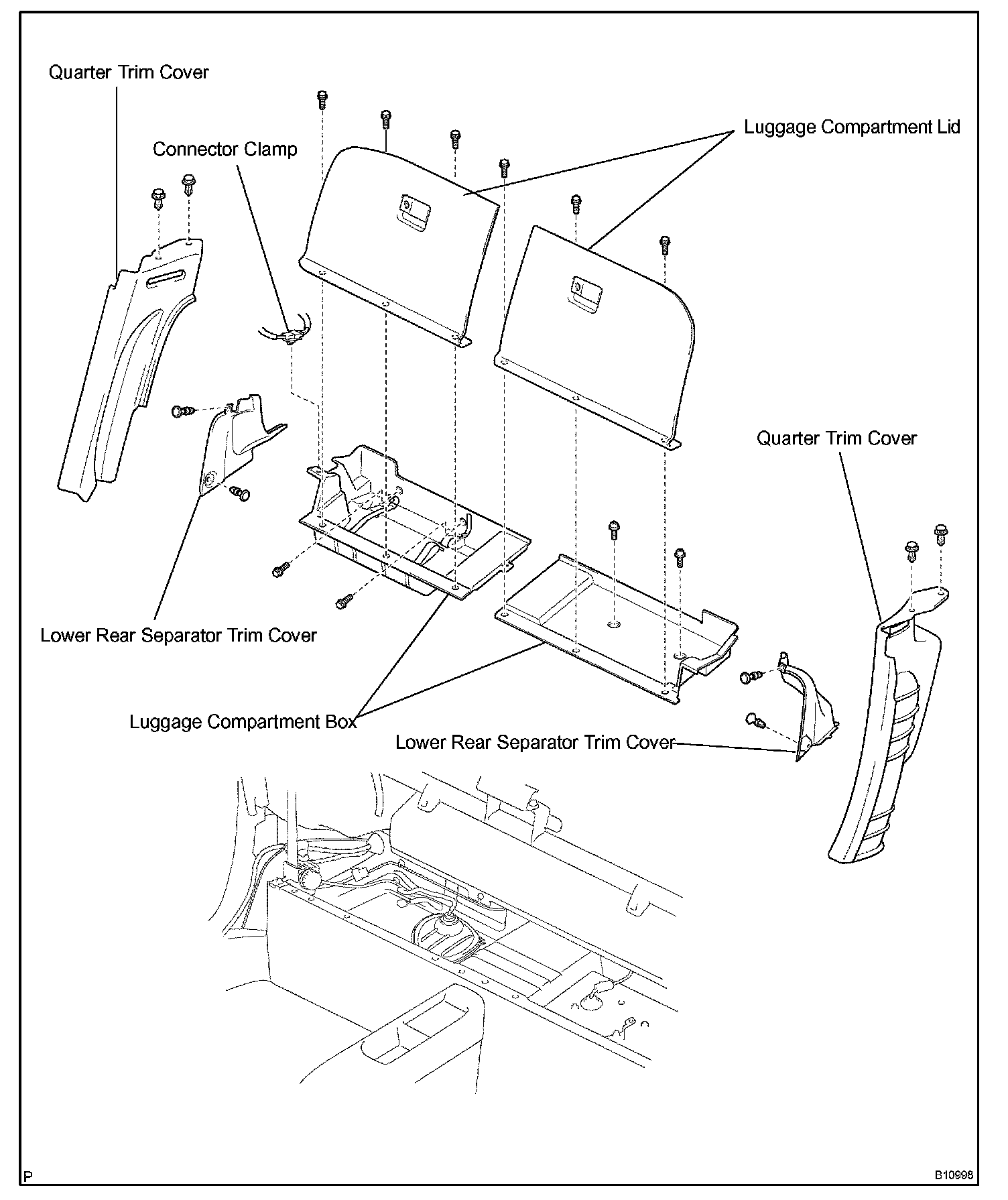

1. REMOVE FUEL PUMP AND SENDER GAUGE ASSEMBLY FROM FUEL TANK

2. REMOVE FUEL SUCTION PLATE

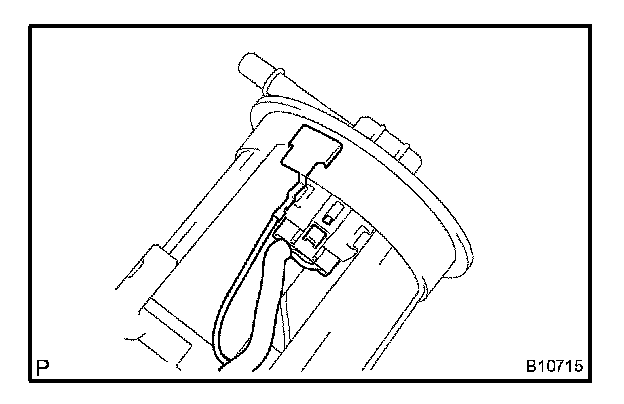

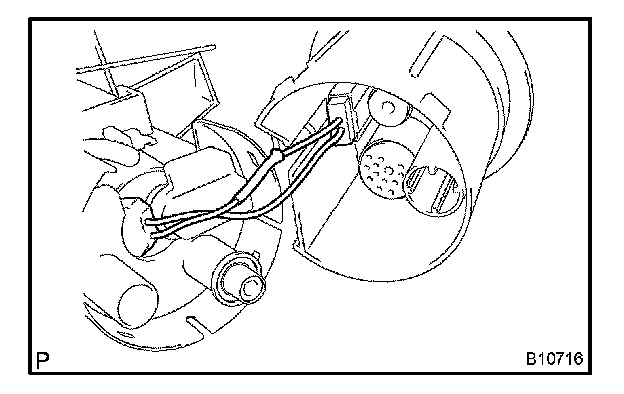

a. Disconnect the fuel sender gauge connector and ground plate.

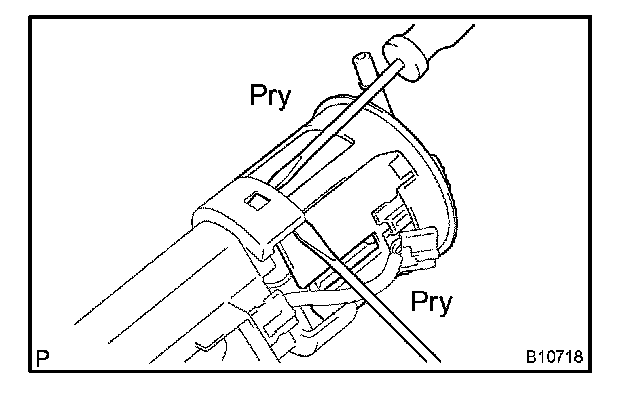

b. Using 2 screwdrivers, pry out the fuel suction plate.

NOTE: Be careful not to damage the suction support and fuel suction plate.

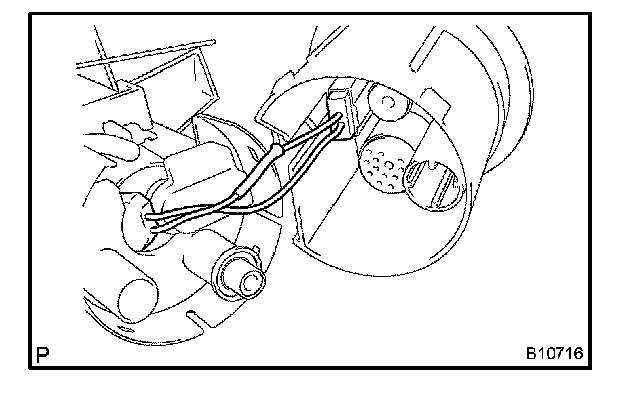

c. Disconnect the fuel pump connector.

3. REMOVE FUEL PRESSURE REGULATOR

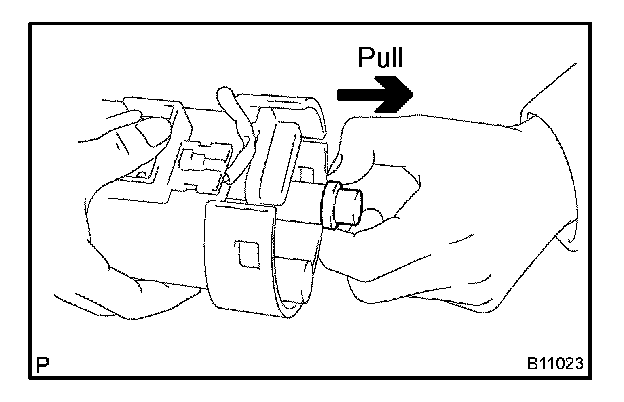

a. Pull out the pressure regulator.
b. Remove the O-ring from the pressure regulator.

4. REINSTALL FUEL PRESSURE REGULATOR

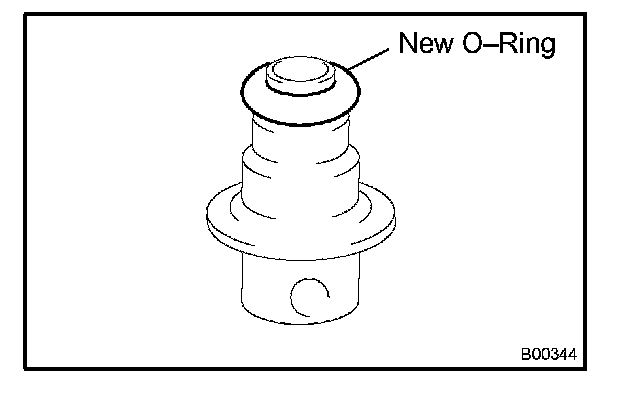

a. Install a new O-ring to the pressure regulator.

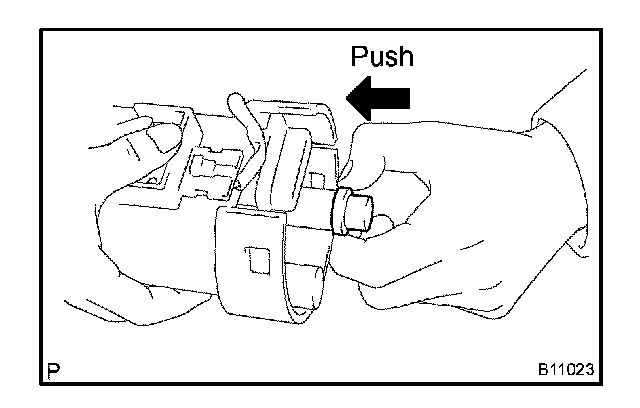

b. Apply a light coat of gasoline to the O-ring, and push in the pressure regulator.

5. REINSTALL FUEL SUCTION PLATE

a. Connect the fuel pump connector.

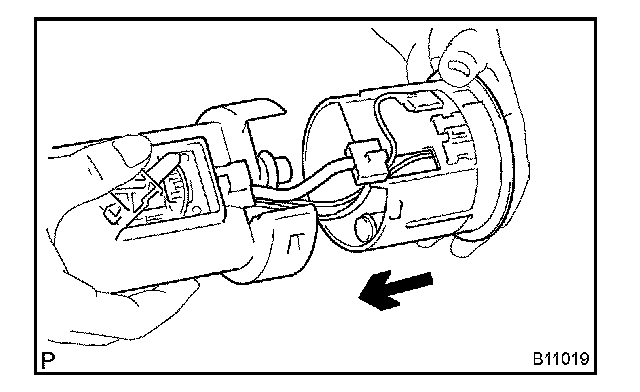

b. Install the fuel suction plate to the fuel filter and fuel pump assembly.

c. Connect the fuel sender gauge connector and ground plate.

6. REINSTALL FUEL PUMP AND SENDER GAUGE ASSEMBLY TO FUEL TANK
