Throttle Body (M/T)

THROTTLE BODY (M/T)

ON-VEHICLE INSPECTION




1. INSPECT THROTTLE BODY

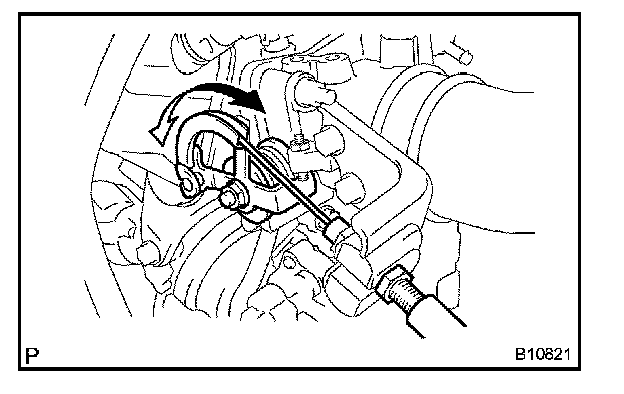

Check that the throttle linkage moves smoothly.

2. INSPECT THROTTLE POSITION SENSOR

a. Disconnect the sensor connector.







b. Using an ohmmeter, measure the resistance between the terminals.
c. Reconnect the sensor connector.
