SMT Warning Light Circuit

SMT WARNING LIGHT CIRCUIT

CIRCUIT DESCRIPTION

SMT warning light inside the combination meter informs the driver of an auto-clutch system error and mis-operation (for example, start in 3rd gear is attempted).The light will flash or light up, respectively.

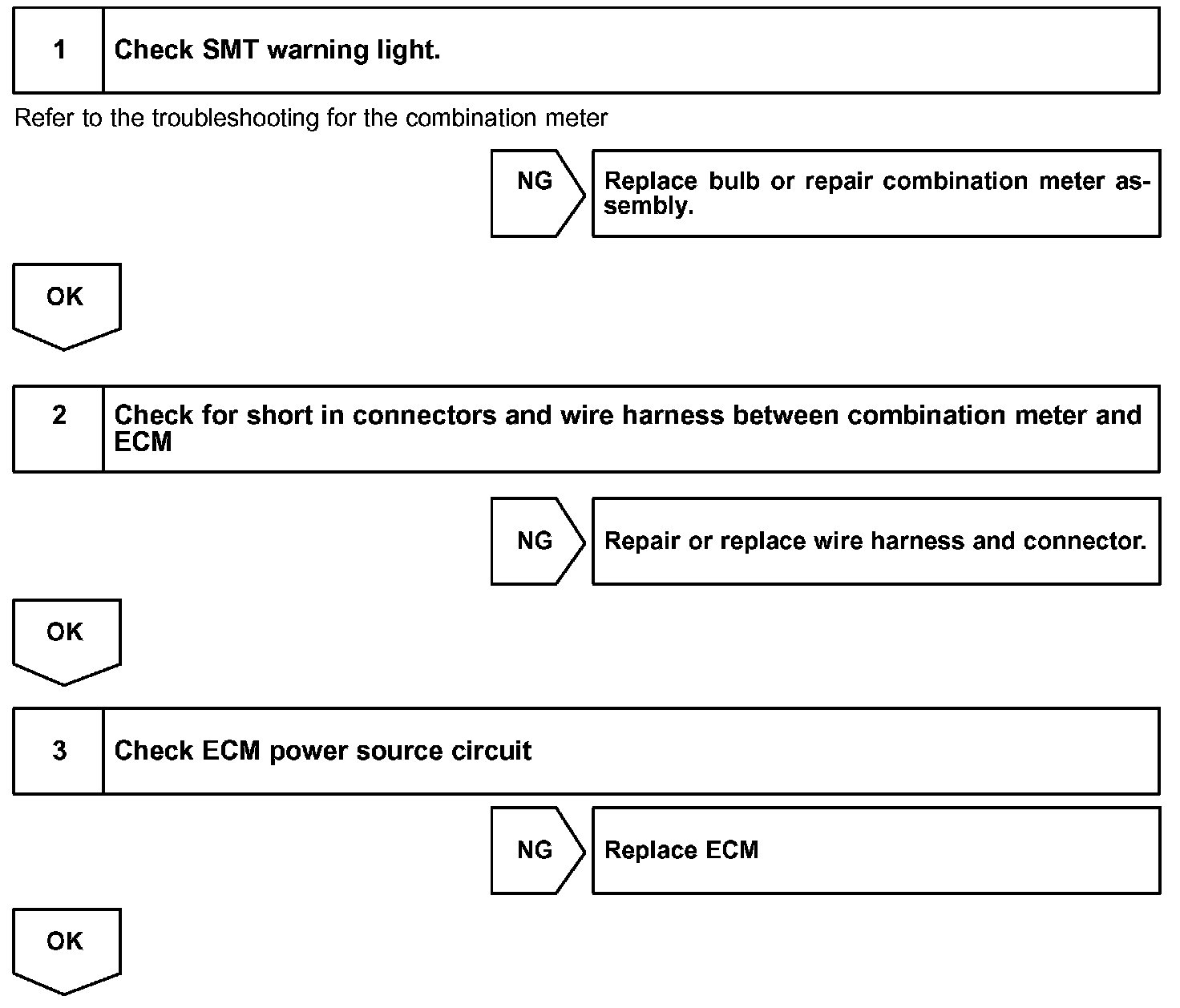

Step 1 - 3:

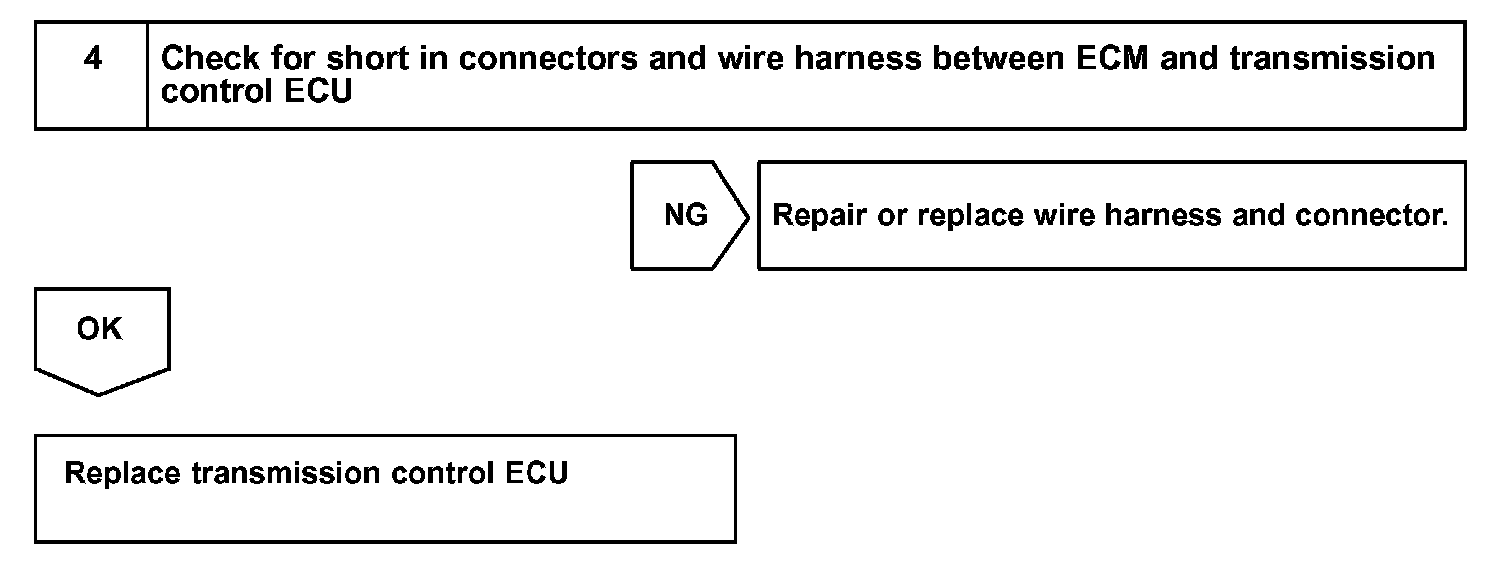

Step 4:




INSPECTION PROCEDURE
